Quick Details
-
Application:
-
Cement Mortar Spraying Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Keming
-
Dimension(L*W*H):
-
1800*750*1100mm
-
Weight:
-
320 kg
-
Power:
-
Customized
-
Product name:
-
Plastering Machine
-
Electricity:
-
Three phase
-
Capacity:
-
150 m2/h
-
Working pressure:
-
3 Mpa
-
Air compressor:
-
0.36 m3/min
-
Max. aggregate size:
-
5 mm
-
Conveying pipe ID.:
-
25/32mm
-
Max. Delivery Distance:
-
25/15m
-
Theory:
-
Screw pump
-
Certification:
-
CE, ISO
Quick Details
-
Max. vertical conveying distance:
-
10M
-
Max. horizontal conveying distance:
-
30M
-
Hopper Capacity:
-
100L
-
Application:
-
Cement Mortar Spraying Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Keming
-
Dimension(L*W*H):
-
1800*750*1100mm
-
Weight:
-
320 kg
-
Power:
-
Customized
-
Product name:
-
Plastering Machine
-
Electricity:
-
Three phase
-
Capacity:
-
150 m2/h
-
Working pressure:
-
3 Mpa
-
Air compressor:
-
0.36 m3/min
-
Max. aggregate size:
-
5 mm
-
Conveying pipe ID.:
-
25/32mm
-
Max. Delivery Distance:
-
25/15m
-
Theory:
-
Screw pump
-
Certification:
-
CE, ISO

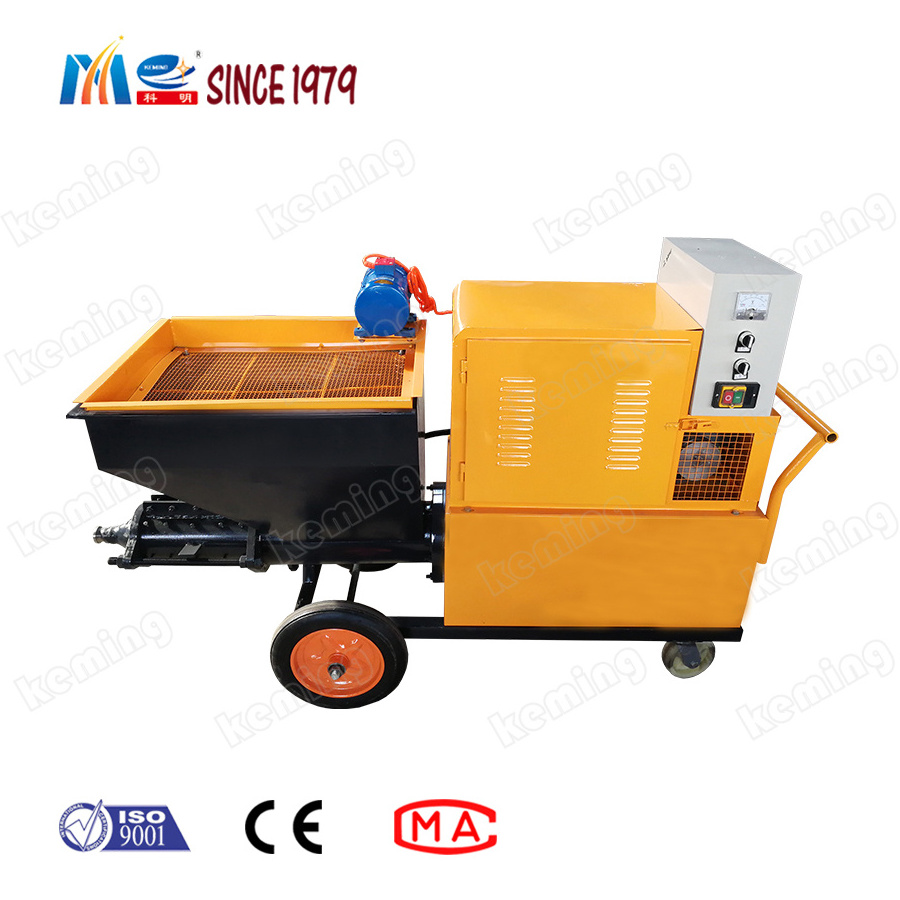

KLW150 Plastering Machine
Pool used plaster pumps for sale machine for plaster walls mortar spray plastering machine cement
Plastering Machine Introduction:
Compared with traditional manual plastering and rendering machine, KLW Series plastering machine has the following advantages:
(1) This machine is an advanced screw-type high-pressure mortar spraying equipment, which is easy to operate and maintain even without special skills.
(2) Evenly spraying performance, no fly ash and dust fall. It can save water and materials more than 20% of the costs.
(3) Free spraying on the wall, roof, internal and external corners. It can improve work efficiency and save costs.
(4) High efficiency. The machine can spray 120-180 square meters per hour, which can effectively shorten the construction period and save costs.
Plastering Machine Application:
KLW-150 Plastering Machine is a new developed high-pressure screw type cement mortar plastering machine. Due to its advanced technology, convenient operation and maintenance, this plastering machine is widely used, as following:
(1) Pressure grouting for reservoir, hydropower, dam, port, dwarf etc;
(2) Basic treatment and reinforcement grouting of soft foundation;
(3) Backfill grouting or bolting grouting for tunnel, subway,mining construction;
(4) Slurry circulation and mortar backfill for ground-source heat pump deep well construction ( new technology);
(5) Building mortar conveying for floor, masonry or plastering;
(6) Conveying and spraying of cement slurry, commercial mortar or equivalent mortar etc.
(7) Spraying fireproof material, thermal insulation material etc.
Plastering Machine Specification:
Model |
KLW-150 Plastering Machine |
||
Capacity |
120~150m2/h |
||
Rated working pressure |
3MPa |
||
Total power |
8.5kw |
||
Main electricity motor |
3phase, 380v, 5.5kw |
||
Air compressor |
3KW |
||
Rated air output |
0.36m3/h |
||
Max. conveying dist. |
30/15m(Horizontal:Vertical) |
||
Hopper capacity |
50L |
||
Conveying hose ID |
25/32mm |
||
Air hose ID |
13mm |
||
Dimensions |
2150*730*1100mm |
||
Weight |
340kg |
|
