Quick Details
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sanwei
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
800*800*900mm
-
Weight (KG):
-
260
-
After-sales Service Provided:
-
Overseas third-party support available
-
colour:
-
optional
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
300*300
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sanwei
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
800*800*900mm
-
Weight (KG):
-
260
-
After-sales Service Provided:
-
Overseas third-party support available
-
colour:
-
optional
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE

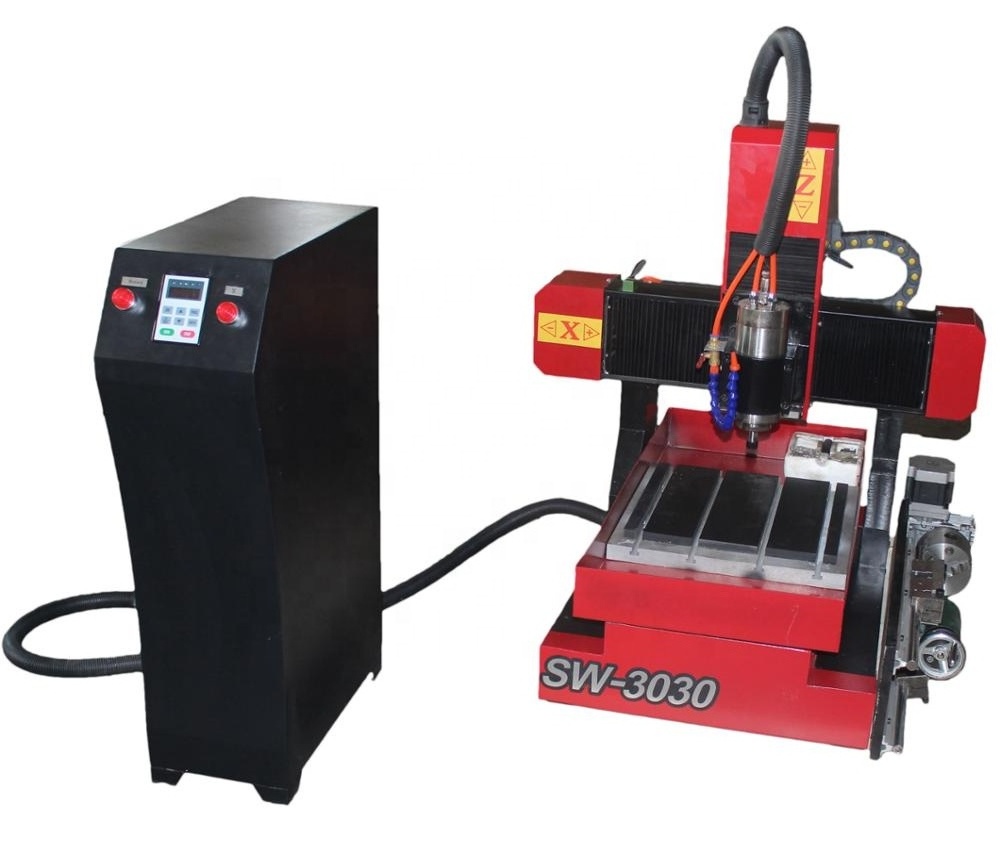

new mini CNC 3030 engraving machine in promotion price China factory
Features:
1.Integrally cast lathe bed
2. Gantry and arms both welded by steel plate
3.Aluminum profile table surface with Acrylic protection layer
4.1.5KW water-cooled spindle , large cutting force, high efficiency
5. Equipped with tool auto-checking
6.Automatic lubrication system fulfills the periodic lubrication maintenance just by one single touch.
7.The software system adopts international instruction format, strong compatibility, type3 / Actcam/Castmate/UG/Proe/wen tai and other CAD/CAM design software are compatible.
8. NC studio control system with USB interface type,128 MB of flash memory.
9.Overall dust proof system ,escaping spindle from dust,working life prolonged.
10.X,Y ball screw,linear square guide rail, high precision,stable movement.
11.Z axis ball screw, linear square guide rail , long service life and high precision.
12.Best mechanical and electrical design with well-selected brand pars minimize breakdown rate.
13.Water tank for jewelry, stone and glass engraving.
14. Optional rotary attachment for 3d,cylinder carving.
15. Drilling on the copper-clad laminates, wood, PVC, acrylic,double-color board ect, for PCB drilling and line engraving.
Parameter
| X,Y,Z working area | 300x300x80mm |
| X,Y,Z Traveling positioning accuracy | ±0.03/300mm |
| X,Y,Z Reposition accuracy | ±0.02mm |
| Lathe bed frame | Steel square tubes |
| Structure | X HIWIN square guide rail |
| Y HIWIN square guide rail | |
| Z HIWIN square guide rail | |
| Transmission | X, Y ball screw |
| Z ball screw | |
| Drive motors | Stepper motor |
| Table surface | T-slot |
| Max rapid travel rate | 22000mm/min |
| Max working speed | 15000mm/min |
| Spindle | water-cooling |
| Spindle power | 1.5KW |
| Spindle speed | 6000-24000rpm |
| frequency converter | Fuling |
| Working voltage | 220V |
| Command language | G-Code |
| Operating system | nc studio |
| Computer interface | USB |
| Flash memory | 128M(U Disk) |
| Collet | ER11(3.175/4/6mm. Optional ) |
| X,Y Resolution | <0.02mm |
| Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc software |
| Running environment temperature | 0-45 centigrade |
| Relative humidity | 30%-75% |
| Optional parts | 1.Spindle power,air (HSD) or water cooling system |
| 2.Table:vacuum pump or T-slot | |
| 3.Driver:CW 250,Leadshine 860 | |
| 4.Motor:Stepper 450A,450B,450C,311/Japan Yaskawa 800w or Panasonic 750w servo motor | |
| 5.Guide rail:HIWIN 20mm/25mm,Circular guide rail | |
|
6.DSP system/Taiwan LNC control system
/Syntec/NC/NCStudio |
|
| 7.Tool magazine | |
| 8.Auto oil lubricating system | |
| 9.Cylinder rotary attachment(125/200mm) | |
| 10.Overall dust-proof system | |
| 11.Dust collector system | |
| 12.Transmission:rack and pinion,ball screw | |
| 13.Metal water tank |
Other Applications:
1.Widely used for engraving jewelry and other jades with water tank.
2.The machine is suitable for acrylic,PVC,wood,marble,wood,mould,metal,stone,handicraft,embossed pictures etc.
3.Power cutting,3D characters and enchase production etc.
4.Fast speed,suitable for larger Characters processing,relief processing and 3D processing etc.
