Diesel 9.0hp 2 wheel farm tractor two-wheel tractors walking tractors with swivel rotary plow model 732 CE approved for garden

Price is for the two wheel walking tractor model 732(9.0hp Kama diesel engine, electric start)

and the attached swivel rotary plow

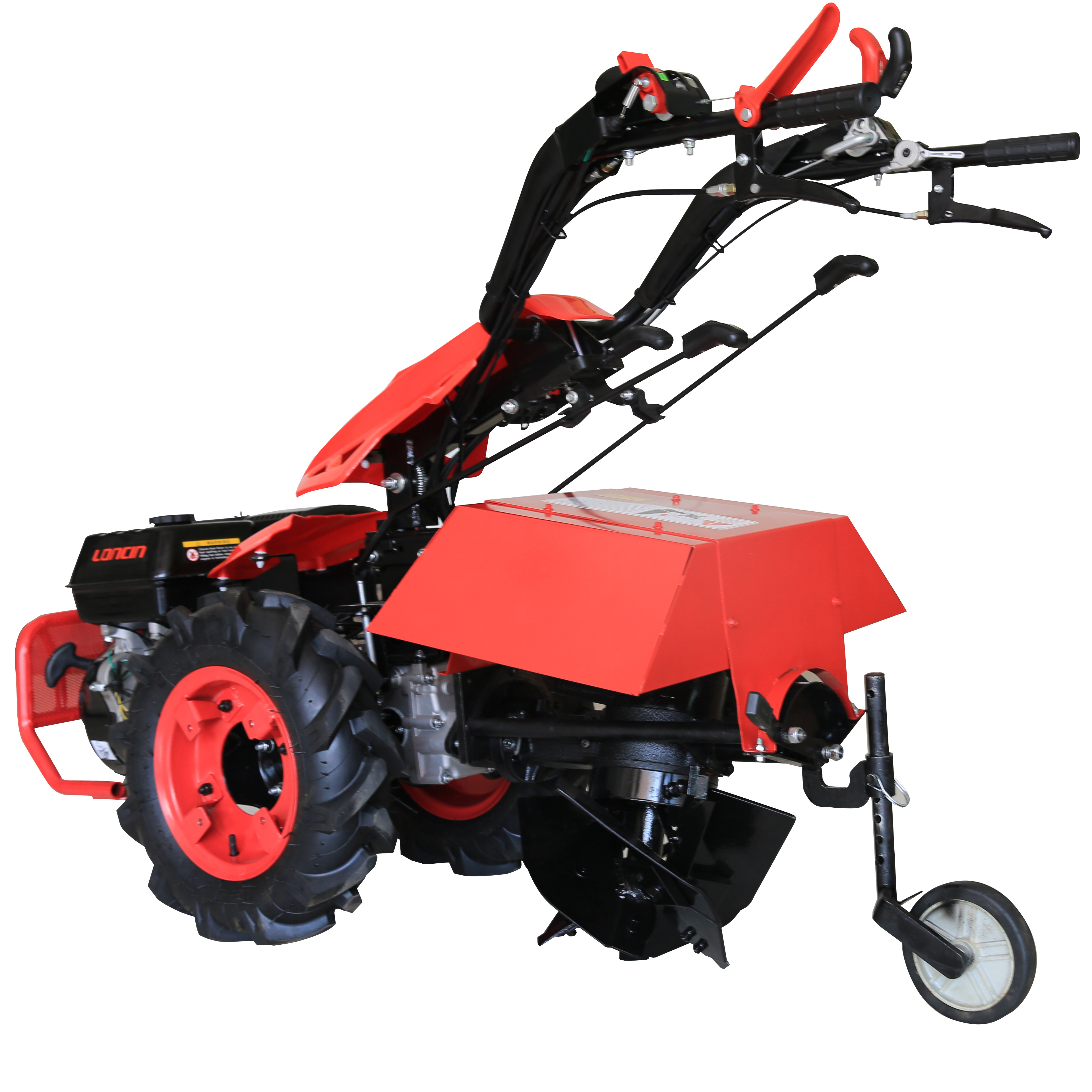

Two wheel walking tractor 732(Diesel 9.0HP Kama engine, electric start)

Engine: Kama, 9.0HP diesel, electric start

Net power: 6.8kw/3000rpm

Bore * stroke: 88 x 75mm

Displacement: 456cc

Dimensions for engine: 420 x 440 x 495mm

3 forward, 2 reverse speed

Working wheel speed: 1.5, 3.0, 11.2km/h

Standard wheel size: 5.0-10"

Transmission: all gear drive

Clutch type: spring loaded, double-cone clutch

Axle configuration: differential drive with lock out

Swivel rotary plow attachment specification:

Model: BFRP01

Digs up to 12" deep and can be regulated by removable wheel.

Discharges soil to right side and can be controlled by removeable side flap.

Four spiral blades turning up to 300rpm.

Each pass works up to 10" wide

Packing: by carton board 87 x 72 x 40cm

The swivel rotary plow works similarly to the rotary plow, but instead of one plowshare throwing soil to the right, the

swivel plow has a rotating 180 degrees between the two plowshares.

Each plowshare has 4 spiral blades that spin up to 300rpm on a vertical shaft, digging effortlessly into all types of soil

including hardened, rock-filled dirt that has yet to be broken. Debris is discharged to the left or right side(not simultaneously)

allowing the operator to build raised beds with the multiple passes.

Like the rotary plow, the swivel rotary plow can break new ground, power compost cover crops, build raised beds, creat drainage

ditches and more. The swivel plow is designed for use on slopes, tight spaces and extensive operations.
