Quick Details
-
Type:
-

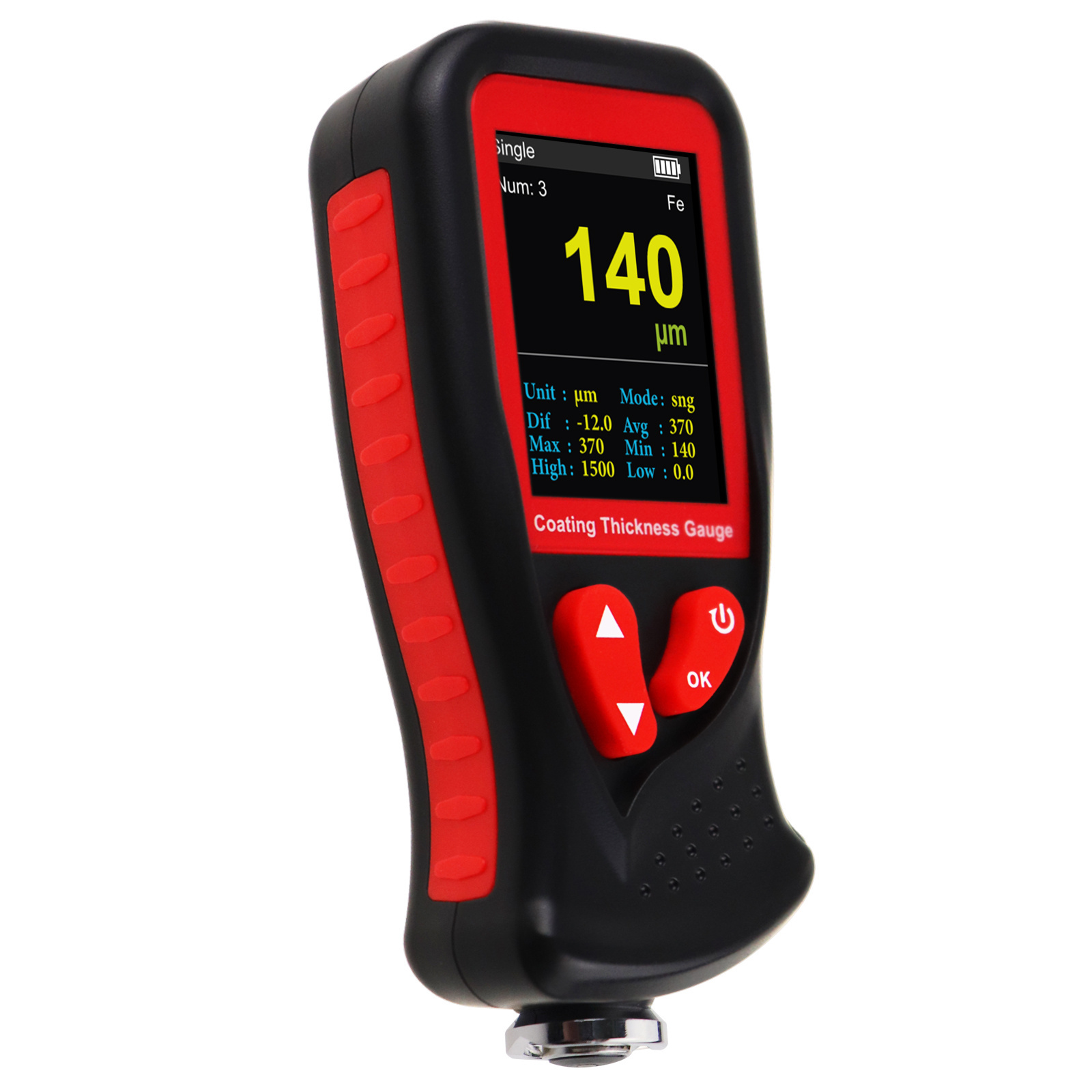

Coating Thickness Meter
-
Resolution:
-
[0.1μm(<100μm), 1μm( ≥100μm)]/0.1mil
-
Measurement error:
-
≤150μm ±5μm / >150μm ±(3%H+1μm)
-
Measurement range:
-
0~1300um/51mil
-
Minimum diameter (magnetic):
-
12mm
-
Minimum diameter (non-magnetic):
-
50mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GAINEXPRESS
-
Model Number:
-
CTM-275
-
Type:
-
Coating Thickness Meter
-
Resolution:
-
[0.1μm(<100μm), 1μm( ≥100μm)]/0.1mil
-
Measurement error:
-
≤150μm ±5μm / >150μm ±(3%H+1μm)
-
Measurement range:
-
0~1300um/51mil
-
Minimum diameter (magnetic):
-
12mm
-
Minimum diameter (non-magnetic):
-
50mm
Product Description
Features
Color-screen HD display with menu operation available in 3 languages (English, Chinese and Russian)
* Single measurement and continuous measurement method
* Automatic substrate identification (magnetic metal and non-magnetic metal)
* Basic and Zero-point calibration
* ON / OFF um & mil display unit
* Metric/imperial unit
* Data storage function 1500 items (15 items/set, max100set)
* Metric/imperial unit
* Data storage function 1500 items (15 items/set, max100set)
Specifications
|
Measurement range
|
0~1300um/51mil
|
|
|
|
Resolution
|
[0.1μm(<100μm), 1μm( ≥100μm)]/0.1mil
|
|
|
|
Measurement error
|
≤150μm ±5μm / >150μm ±(3%H+1μm)
|
|
|
|
Magnetic metal substrate
|
* Minimum diameter: 12mm
|
* Minimum thickness: 0.5mm
|
|
|
Non-magnetic metal substrate
|
* Minimum diameter: 50mm
|
* Minimum thickness: 0.5mm
|
|
|
Minimum radius of curvature
|
* Magnetic convex substrate: 2mm
|
* Magnetic concave substrate: 11mm
|
|
|
Working voltage
|
DC 3.7V (Lithium battery capacity 1000mAh)
|
|
|
