Quick Details
-
Model Number:
-
Longva1501
-
Brand Name:
-
LONGVA or OEM
-
Standard:
-
JIS,DIN,ASTM
-
size:
-
DN50-DN1200
-
end connection:
-
wafer,flange
-
Sealing material:
-
rubber,PTFE,SS304,SS316,STL/K20/YG8
-
Material:
-
WCB or stainless steel
-
Operate:
-
manual,pneumatic,electric
-
standard:
-
JIS,ANSI,DIN,GB
-
Medium:
-
water,oil,gas
-
Package:
-
export plywood case
-
Applicationtion:
-
power station, chemical, food, paper making, pharmaceutical, etc.
Quick Details
-
Port Size:
-
DN50-DN1200
-
Warranty:
-
12 monthes
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Longva1501
-
Brand Name:
-
LONGVA or OEM
-
Standard:
-
JIS,DIN,ASTM
-
size:
-
DN50-DN1200
-
end connection:
-
wafer,flange
-
Sealing material:
-
rubber,PTFE,SS304,SS316,STL/K20/YG8
-
Material:
-
WCB or stainless steel
-
Operate:
-
manual,pneumatic,electric
-
standard:
-
JIS,ANSI,DIN,GB
-
Medium:
-
water,oil,gas
-
Package:
-
export plywood case
-
Applicationtion:
-
power station, chemical, food, paper making, pharmaceutical, etc.

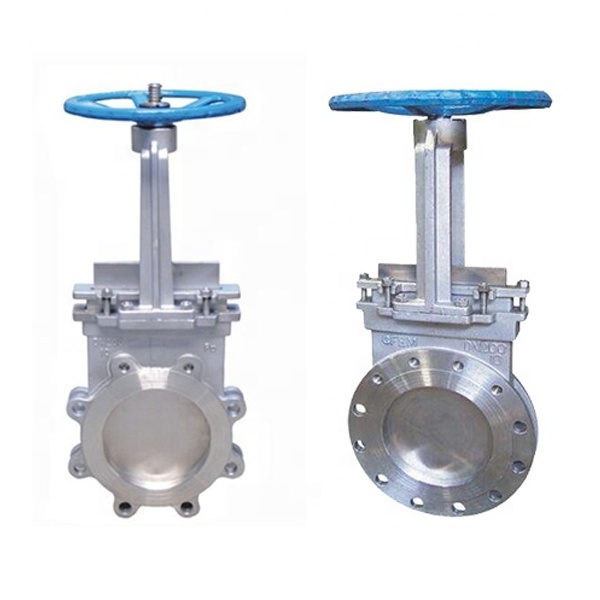

Name: JIS10K stainless steel cf8 wafer flange knife gate valve
| Size | DN50-DN1200 |
| Material | Stainless steel,WCB |
| Connection | Wafer,Flange |
| Pressure | 0.6-1.6mpa,class 150LB |
| Drive | Manual,pneumatic,electric |
| Standard | JIS,DIN,ASTM |
Knife gate valves are suitable for pipelines with suspended particles, fibrous material pulp, sewage, coal slurry, ash and cement mixture, etc., relying on blade-shaped gates that can cut fibrous materials. Cut off these media. The valve body does not actually have a cavity. The gate moves up and down in the side guide groove and is pressed against the valve seat by the lug at the bottom. If a higher medium tightness is required, an O-shaped valve seat can be used. Two-way seal. According to the driving mode, it is divided into manual knife gate valve, pneumatic knife gate valve, and electric knife gate valve.
Knife gate valve has the advantages of light and flexible operation, small volume, smooth channel, small flow resistance, light weight, easy installation and easy disassembly. The nominal size is DN50 ~ DN800, which can be normal at working pressure of 0.6MPa ~ 1.6MPa and operating temperature≤100 ℃ jobs. The gate of the knife gate valve has a shearing function, which can scrape off the adhesion on the sealing surface and automatically remove debris. The stainless steel gate can prevent seal leakage caused by corrosion.
Application
Mining, iron and steel industry-for coal slurry, ballast slurry, etc.
Purification device-used for wastewater, mud, dirt and clarified water with suspended matter.
Papermaking industry-for any concentration of pulp and feed water mixture.
Sugar industry-used for sugar beet washing, syrup, juice, juice, etc.
Food industry-for washing and rinsing equipment, grain conveying equipment, mash, etc.
Power station ash removal-used for ash slurry.
(As your reference)
To choose perfect products, please confirm:
1. Size (necessary).
2. Material (necessary).
3. Connection End (necessary).
4. Handle type.
5. Seal.
6. Standard.
7. Medium.
