Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Brand:
-
dongjun
-
Model:
-
DJ-TL155
-
Product Name:
-
Stainless Steel Cable Drag Chain
-
Application:
-
Moving Cable Protection
-
Color:
-
Silver
-
Function:
-
Cable Protection
-
Feature:
-
flexible
-
Structure:
-
Combined Chain
-
Bend radius:
-
50mm-350mm
-
Inside Dimension:
-
Reference Details
-
Size:
-
Customized Sizes
-
Place of origin:
-
Hebei China (Mainland)
Quick Details
-
Brand Name:
-
dongjun
-
Material:
-
stainless steel
-
Weight (KG):
-
10
-
Marketing Type:
-
Hot Product 2023
-
Brand:
-
dongjun
-
Model:
-
DJ-TL155
-
Product Name:
-
Stainless Steel Cable Drag Chain
-
Application:
-
Moving Cable Protection
-
Color:
-
Silver
-
Function:
-
Cable Protection
-
Feature:
-
flexible
-
Structure:
-
Combined Chain
-
Bend radius:
-
50mm-350mm
-
Inside Dimension:
-
Reference Details
-
Size:
-
Customized Sizes
-
Place of origin:
-
Hebei China (Mainland)

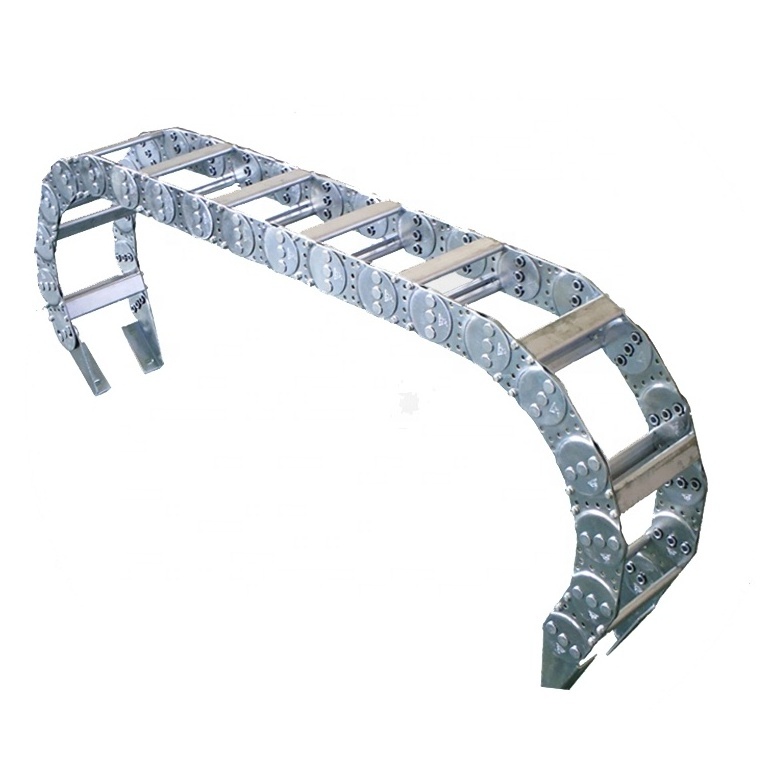

TL series drag chains are mainly consisting of chain plate (top quality stainless steel with chromium plated), supporing board (extruded aluminium alloy) and pinshaft (alloy), etc. There is no relative motions between the cables/rubber hoses and the drag chains, giving no deforming or twists. The chromium plated chain board has very nice-looking appearance and hasvery rational construction and flexible and high strength. It isreliable and easy to operate, install, dismantal or assemble. It is worthwhile mentioning that the anti-wearing performance has been improved greatly due to wear resistant material and alloy pinshaft are used. The product is flexible to bending and has low resistance, giving low noises. It can be used for a very longperiod of time without any deformation or hanging dowm.
Product: stainless steel TL cable drag chain
Material: stainless steel 304
size:45-250
Type: supporting board I integra type
supporting board II seperate type
supporting board III frame type
|
Type
Reference |
TL125 | TL155 | TL180 | TL225 | TL250 |
| Pitch t | 125 | 155 | 180 | 225 | 250 |
|
R
Bending radius Can be customized according to user requirements |
200,250
300,350, 470,500, 575,700,750 |
200,250
300,350, 450,500, 600 |
250,300,
350,450, 490,600, 650 |
400,450, 600,750, 800,850, 1000 |
400,450, 500,600, 750,800, 1000 |
|
B mix
Minimum width of drag chain |
80 | 90 | 100 | 160 | 190 |
|
L
Height of drag chain |
96 | 120 | 144 | 200 | 220 |
| Length of drag chain | customized | ||||
|
D1
Max.hole diameter of support plate |
75 | 97 | 110 | 146 | 166 |
| Non-support range | 10 | 10 | 10 | 12 | 14 |
| Type | I,II,III | II, III | II, III | II, III | II, III |
