Quick Details
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
DNH1
-
Max. Current:
-
630A
-
Product:
-
3 Phase 160/3P Fused Mounted Disconnector Fuse Switches Disconnect
-
Usage:
-
Low voltage
-
Fuse size:
-
NH / NT
-
Rated current:
-
160A-630A
-
Rated voltage:
-
380V&660V
-
pole:
-
3P
-
OEMODM:
-
Yes
-
Peculiarity:
-
Fair retardant V0
-
Structure:
-
Visual window
-
External Material:
-
Plastic& Metal
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
DNH1
-
Max. Current:
-
630A
-
Product:
-
3 Phase 160/3P Fused Mounted Disconnector Fuse Switches Disconnect
-
Usage:
-
Low voltage
-
Fuse size:
-
NH / NT
-
Rated current:
-
160A-630A
-
Rated voltage:
-
380V&660V
-
pole:
-
3P
-
OEMODM:
-
Yes
-
Peculiarity:
-
Fair retardant V0
-
Structure:
-
Visual window
-
External Material:
-
Plastic& Metal
Product Introduction

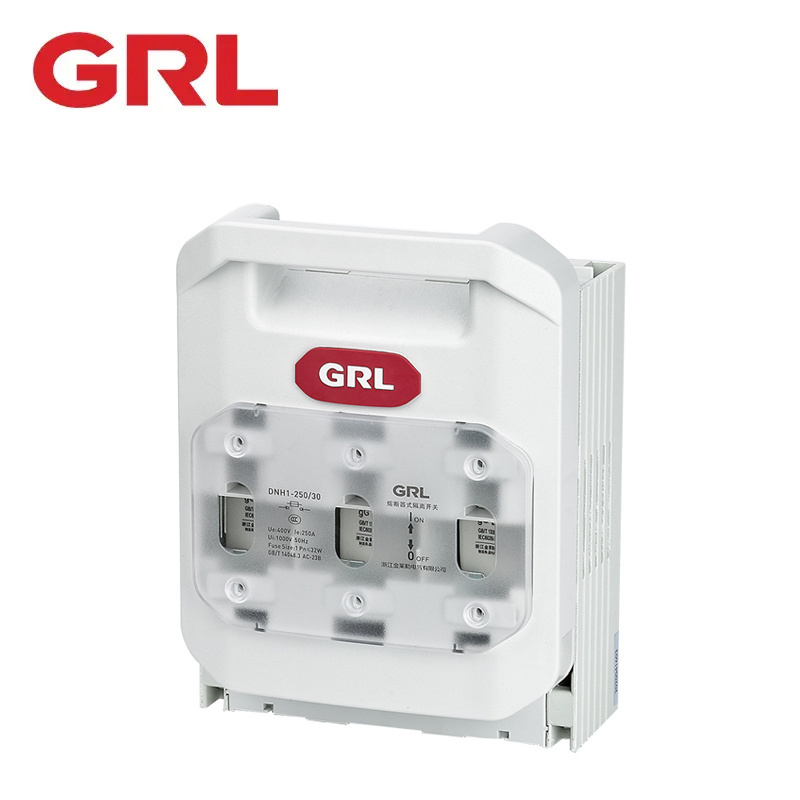

DNH1 Fuse-switch Disconnector is applied to under Rated Voltage 690V. The main current is 16A to 630A.It is mainly used as power switch, isolator switch and emergency switch in power system.With CE certificate and test report.
The switch is consist of base and handle,three phase horizontal design.Operation type is manual front-side,suit for NH fuse ,what’s more u can observe the fuse data and operation condition via the transparent cover.
Construction of DNH1 Fuse-switch disconnector is compact and modern appearance and more safe in operation.It is widely application in power grid,construction industry,Industrial control and new energy...etc.
| Model | DNH1-160 | DNH1-250 | DNH1-400 | DNH1-630 |
| Fuse | NH00(NT00) | NH1(NT1) | NH2(NT2) | NH3(NT3) |
| Rated operational voltage Ue V | 400 | 400 | 400 | 400 |
| Max current | 160A | 250A | 400A | 630A |
| Rated insulation voltage | 1000V | |||
| Rated impulse withstand voltage | 8000V | |||
| Fuse protected short circuit making | 50kA/ms | |||
| Rated making and breaking capacity | AC22B | AC22B | AC22B | AC22B |
| Rated frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 |
| Power loss at Im without fuse-link/phase | 12W | 23W | 34W | 48W |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |
