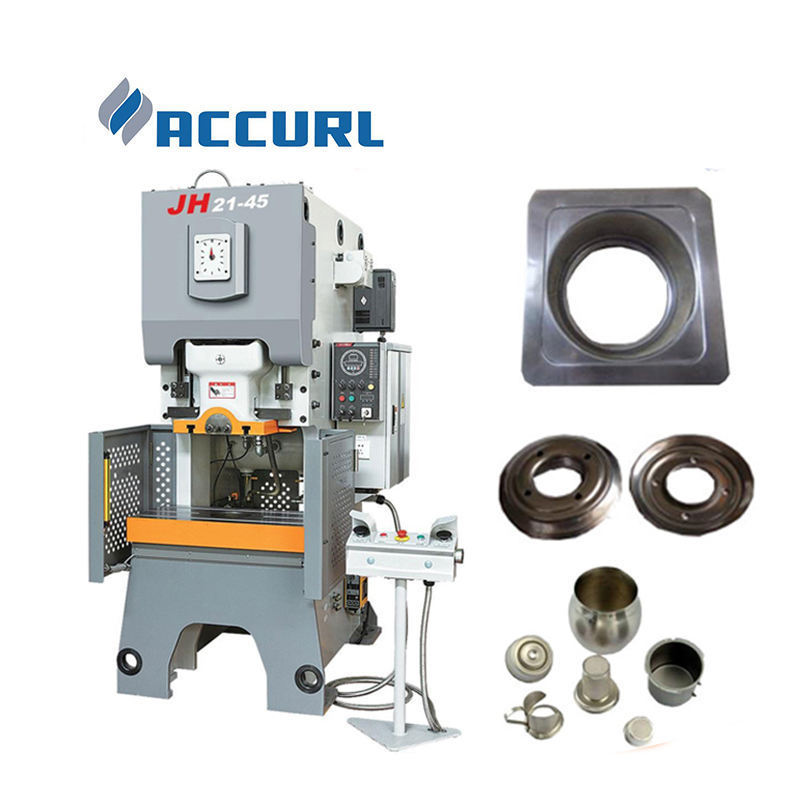

JH21 Series cnc punching machine Clutch High Performance Punch press machine coin stamping machine

JH21 Series cnc punching machine Clutch High Performance Punch press machine coin stamping machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $28000

≥5 Sets

US $19600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220v/380v

Dimension(L*W*H):: 1540*1200*2570mm

Motor Power (kW):: 5.5

Model Number:: JH21-63T

Weight (T):: 5150

Marketing Type:: Hot Product 2021

Nominal Stroke:: 4mm

Max Die Set Heigh:: 330mm

Die Height Adjus-tment:: 70mm

Throat Depth:: 270mm

Distance Between Uprights:: 560mm

Blanking Hole Diameter:: 150mm

Bolster Tickness:: 130mm

Bolster Surface Height:: 900mm

Press Pressure:: 0.5Mpa

Color:: Optional

Quick Details

Slide Stroke (mm):: 80

Place of Origin:: Anhui, China

Brand Name:: Accurl

Voltage:: 220v/380v

Dimension(L*W*H):: 1540*1200*2570mm

Motor Power (kW):: 5.5

Model Number:: JH21-63T

Weight (T):: 5150

Marketing Type:: Hot Product 2021

Nominal Stroke:: 4mm

Max Die Set Heigh:: 330mm

Die Height Adjus-tment:: 70mm

Throat Depth:: 270mm

Distance Between Uprights:: 560mm

Blanking Hole Diameter:: 150mm

Bolster Tickness:: 130mm

Bolster Surface Height:: 900mm

Press Pressure:: 0.5Mpa

Color:: Optional

Product Overview

_{C Frame Crank Type Mechanical Stamping Press}

JH21 series are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing,ect.

Product Features

1.The production efficiency can be increased by 30% or so compared with common crank punch press

2.High rigidity welded fuselage

3.Dry pneumatic friction clutch

4.Safety double solenoid valve

5.High sensitivity hydraulic overload protection

6.Multifunctional high affinity electronic control system

7.PLC centralized control, convenient operation

HIGH PRECISION FOR SHEET METAL PUNCHING AND STAMPING

The press body is milling and boring by PAMA machine center and all the surfaces and holes will be finished machining in on position

WET TYPE PNEUMATIC CLUTCH AND BRAKE

Wet type pneumatic clutch with impor ted clutch disc, NOK seals, lower noise and maintenance cost, longer service life.

HMI FOR EASY OPERATION

HMI according to the working time or working stroke times. HMI with setting function, I/O monitor, counter and preset counter.

Product Paramenters

Type			Nominal	Nominal Stroke	Slide Stroke	Max Die Set Height	Throat Depth	Motor	Weight	Press Pressure
Type				KN	mm	mm	mm	mm	Kw	Kg	Mpa
JH21-45	H	450	4	70	295	225	5.5	3550	0.5
JH21-45		450	S		4	225	5.5	3550		120	270
JH21-60	H	600	4	80	330	270	5.5	5150
JH21-60		600	S		4	270	5.5	5150		140	300
JH21-80	H	800	5	100	350	310	7.5	6450
JH21-80		800	S		5	310	7.5	6450		160	320
JH21-100	H	1000	5	100	365	330	7.5	8650
JH21-100		1000	S		5	330	7.5	8650		160	335

Advantage:

1. The main body is welded with high quality steel plate. It will be heat treated and ball blasting treated to release the stress and improve the rigidity.

2. The press adopts Panasonic or Omron PLC with high stability and longer service life.

3. The wet cultch produced by World is made up of the best seals, bearing and friction discs. It features lower noise and longer service life.

4. The control panel includes double hand buttons and emergency stop button and foot pedal control switch is optional.

5. The press is equipped with auto lubrication pump and it is easy for maintenance.

6. The hydraulic overload protected pump is used to protect the press and the die from overloading.

7. The motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It offers stable positioning accuracy and quick adjustment.
