Quick Details
-
Bending Precision (Deg):
-
0.1mm
-
Place of Origin:
-
China
-
Brand Name:
-
JIUXING
-
Year:
-
2023
-
Power (kW):
-
3
-
Weight (KG):
-
260
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-

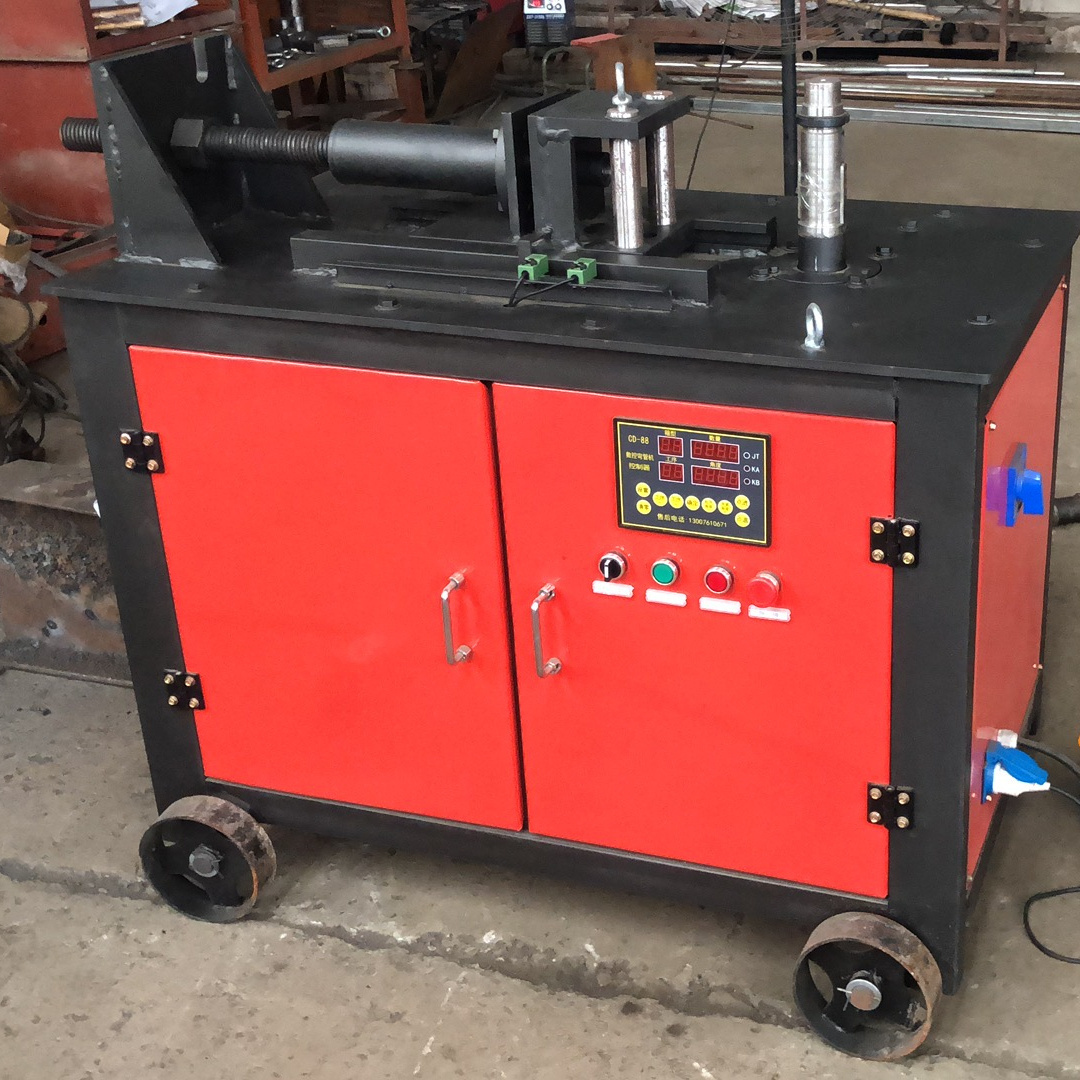

WG38 CNC Pipe Bending Machine
-
Pipe diameter:
-
≤38mm
-
Motor power:
-
3KW-4p
-
Spindle speed:
-
16r/min
-
Voltage:
-
380V 50Hz
-
Numbers of Angle:
-
10 angles avaiable
-
Angle range:
-
5-180°
-
Pipe thickness:
-
≤3mm
-
Size:
-
950*850*1000mm
Quick Details
-
Machine Type:
-
pipe bending machine, Pipe and Tube Bending Machine
-
Bending Radius (mm):
-
4 - 38
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
0.1mm
-
Place of Origin:
-
China
-
Brand Name:
-
JIUXING
-
Year:
-
2023
-
Power (kW):
-
3
-
Weight (KG):
-
260
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
WG38 CNC Pipe Bending Machine
-
Pipe diameter:
-
≤38mm
-
Motor power:
-
3KW-4p
-
Spindle speed:
-
16r/min
-
Voltage:
-
380V 50Hz
-
Numbers of Angle:
-
10 angles avaiable
-
Angle range:
-
5-180°
-
Pipe thickness:
-
≤3mm
-
Size:
-
950*850*1000mm
Technical parameters
|
Model |
WG -38 |
|
Pipe diameter range |
≤38mm |
|
Thickness |
≤3mm |
|
Available angles |
10 different angles |
|
Bending Speed: |
16r/min |
|
Max Bending Angle: |
180 |
|
Min Bending Angle: |
5 |
|
Motor power: |
3kw-4 |
|
Power supply: |
380V,50HZ |
|
Foot switch voltage: |
DC 5V |
|
Overall dimension: |
930*680*850mm |
|
Total weight: |
260kg |
This machine is widely used in road,bridge,tunnels and other giant construction projects .
| 1⇒ | Check the diameter of tube /pipe |
|
|
| 2⇒ | Check the motor rotation direction |
|
|
| 3⇒ | set the angle you need |
|
|
| 4⇒ | put the tube into the die |
|
|
| 5⇒ | strenthen the pressure wheel |
| 6⇒ | working! |
