Quick Details
-
Place of Origin:
-
Fujian China
-
Brand Name:
-
ZJT
-
Model Number:
-
ZJT004
-
Material:
-
Galvanized
-
mesh wire diameter:
-
2.0-3.0mm
-
mesh size:
-
50*50mm
-
surface treatment:
-
galvanized
-
panel max length:
-
3000mm
-
Panel width:
-
1200mm
-
Truss wire:
-
1.8-2.5mm,2.5-3.5mm galvanized
-
EPS insulation core:
-
30-150mm or as customer's request
-
Advantage:
-
Lightweight
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian China
-
Brand Name:
-
ZJT
-
Model Number:
-
ZJT004
-
Material:
-
Galvanized
-
mesh wire diameter:
-
2.0-3.0mm
-
mesh size:
-
50*50mm
-
surface treatment:
-
galvanized
-
panel max length:
-
3000mm
-
Panel width:
-
1200mm
-
Truss wire:
-
1.8-2.5mm,2.5-3.5mm galvanized
-
EPS insulation core:
-
30-150mm or as customer's request
-
Advantage:
-
Lightweight
Product Description
Detail Information

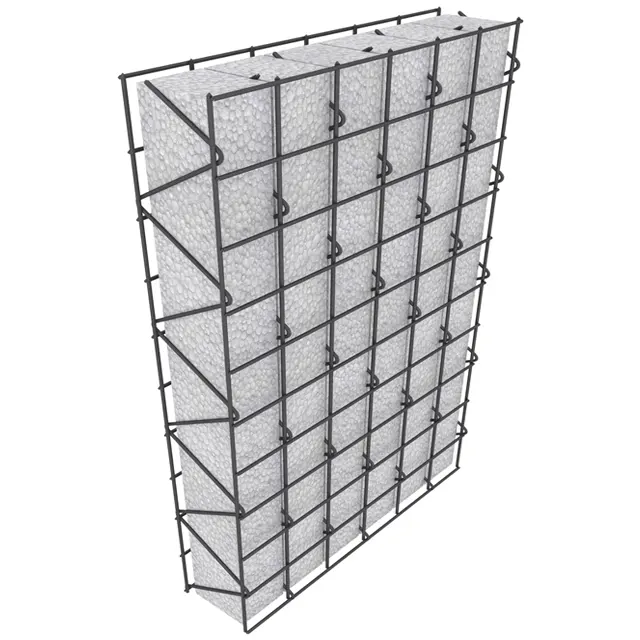

3D wire mesh panel is a new wire mesh products, mainly used in construction. It's high tensile and easy install are very popular by world construction customers.3d wire mesh panel also called two double layer welded wire panel, using welded way join two pieces of welded wire panel together.
Foamed polystyrene insulating layer with the thickness of 100m/m in the center, steel wire truss coated with zinc of 3m/m(3.8mm)
between the insulating layer is pinned at 2`` intervals, at both sides of which forms up at 5Cm X 5Cm(5Cm X 10Cm) intervals with
the wire mesh coated with zinc of 3m/m(3.8mm) that is at fine-spun 50m(100m)intervals. So the whole points of contact in all steel
wires is joined in a spot welding, which is a panel of 2.4m(4m) full length, 1.2m width, 60~200m/m thickness.
1.Material: Galvanized or cold drawing low carbon wire
2.mesh wire diameter : 1.8-2.5mm,2.5-3.5mm
3.mesh size: 50*50mm-200*200mm
4.surface treatment:galvanized or non-galvanized
5.panel max length:5000mm
6.Panel width:1200mm or as your request
7.Truss wire: 1.8-2.5mm,2.5-3.5mm galvanized or non-galvanized
8.EPS insulation core: 30-150mm or as customer's request.
between the insulating layer is pinned at 2`` intervals, at both sides of which forms up at 5Cm X 5Cm(5Cm X 10Cm) intervals with
the wire mesh coated with zinc of 3m/m(3.8mm) that is at fine-spun 50m(100m)intervals. So the whole points of contact in all steel
wires is joined in a spot welding, which is a panel of 2.4m(4m) full length, 1.2m width, 60~200m/m thickness.
1.Material: Galvanized or cold drawing low carbon wire
2.mesh wire diameter : 1.8-2.5mm,2.5-3.5mm
3.mesh size: 50*50mm-200*200mm
4.surface treatment:galvanized or non-galvanized
5.panel max length:5000mm
6.Panel width:1200mm or as your request
7.Truss wire: 1.8-2.5mm,2.5-3.5mm galvanized or non-galvanized
8.EPS insulation core: 30-150mm or as customer's request.
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
|
|
Application
|
Warehouse
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Fujian China
|
|
Brand Name
|
ZJT
|
|
Model Number
|
ZJT-1004
|
|
Panel Material
|
Nonmetal
|
|
Material
|
Galvanized
|
|
mesh wire diameter
|
2.0-3.0mm
|
|
mesh size
|
50*50mm
|
|
surface treatment
|
galvanized
|
|
panel max length
|
3000mm
|
|
Panel width
|
1200mm
|
|
Truss wire
|
1.8-2.5mm,2.5-3.5mm galvanized
|
|
EPS insulation core
|
30-150mm or as customer's request
|
|
Application
|
Warehouse
|
|
Advantage
|
Lightweight
|
Packing & Delivery
1.Free packing (with normal pallet and packing belt) 2.Standard exporting packing (wrapped with plastic thin film,edge protect and good pallet): USD20-30/Package 3.Packing size: 1500-3000*610*1000mm Loading: 18 pallets per 20' container, 11000kgs-18000kgs per 20' container
