Quick Details
-
Production Capacity:
-
16-60bags/min
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGCHUANG
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product name:
-

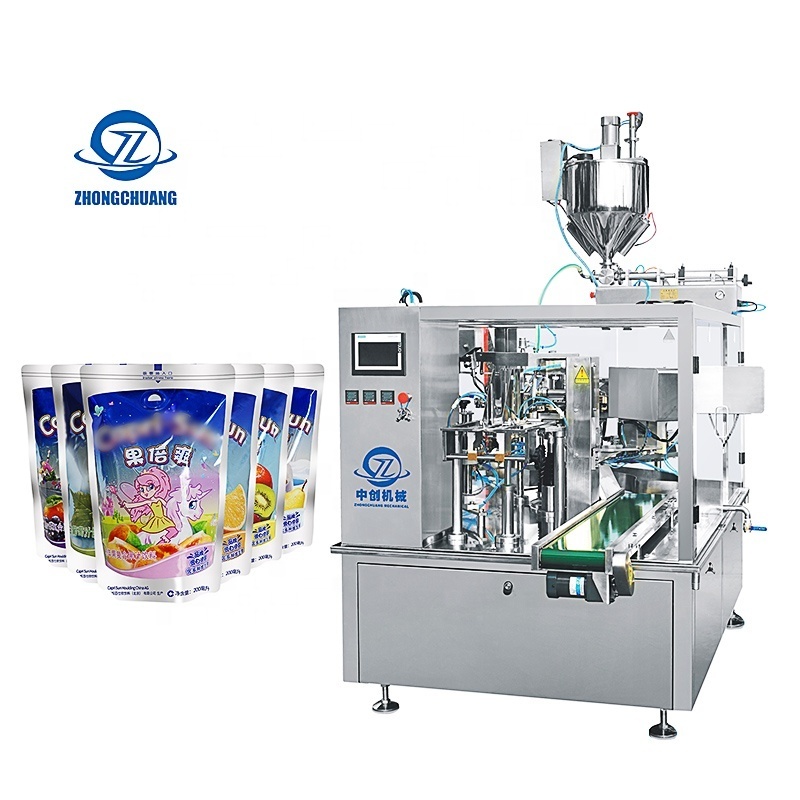

Automatic Liquid Packing Machine
-
Packing Bag width:
-
60-200mm/80-250mm
-
Packing Bag Length:
-
100-350mm
-
Air Consumption:
-
≤0.6m3/min
-
Gross Weight:
-
1800KG
-
Usage:
-
Liquid Paste Jam Packing
-
Keyword:
-
Automatic Conveying Packing Machine
-
Feature:
-
Servo Automatic Packing Machine
-
Advantage:
-
Servo Motor Control
-
Certification:
-
CE
Quick Details
-
Function:
-
FILLING, Wrapping, Capping, Sealing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Pouch
-
Packaging Material:
-
Plastic, Paper, Wood
-
Production Capacity:
-
16-60bags/min
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGCHUANG
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product name:
-
Automatic Liquid Packing Machine
-
Packing Bag width:
-
60-200mm/80-250mm
-
Packing Bag Length:
-
100-350mm
-
Air Consumption:
-
≤0.6m3/min
-
Gross Weight:
-
1800KG
-
Usage:
-
Liquid Paste Jam Packing
-
Keyword:
-
Automatic Conveying Packing Machine
-
Feature:
-
Servo Automatic Packing Machine
-
Advantage:
-
Servo Motor Control
-
Certification:
-
CE
Product Paramenters
|
Item NO.
|
ZC-Y200/250
|
|
|
|
|||
|
Dimensions
|
L4000mm×W2000mm×H2100mm
|
|
|
|
|||
|
Packing Speed
|
16-60 Bags/min (depending on products character and filling volume)
|
|
|
|
|||
|
Packing Bag Size
|
L: 100-350mm
W : 60-200mm/80-250mm |
|
|
|
|||
|
Weight
|
1800KG
|
|
|
|
|||
|
Air Compressed air consemed
|
≤0.6m³ / min
|
|
|
|
|||
|
Accuracy
|
±1g (≤100g) / ± 1%( >100g) according to material
|
|
|
|
|||
|
Application
|
Suitable for liquid or semifluid products packing, such as beverages, juice, ketchup, bechamel etc.
|
|
|
|
|||
|
|
1.Bag feeding
2.Coding 3.Opening 4.Filling A 5.Filling B 6.Heat sealing A 7.Heat sealing B 8.Forming and output |
|
|
|
|||
