Quick Details
-
Brand Name:
-
Oriens
-
Model Number:
-
OP-005
-
Structure:
-
Saddle Clamp
-
Usage:
-
Pipe Clamp
-
Bandwidth:
-
8mm,12.7mm
-
MOQ:
-
1000pcs
-
Delivery:
-
10-25days
-
Surface treatment:
-
black rubber lined/coated
-
Screw:
-
M5-M10
-
Application:
-
Wires, cables,pipes, hoses
Quick Details
-
Measurement system:
-
INCH
-
Material:
-
Metal
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Oriens
-
Model Number:
-
OP-005
-
Structure:
-
Saddle Clamp
-
Usage:
-
Pipe Clamp
-
Bandwidth:
-
8mm,12.7mm
-
MOQ:
-
1000pcs
-
Delivery:
-
10-25days
-
Surface treatment:
-
black rubber lined/coated
-
Screw:
-
M5-M10
-
Application:
-
Wires, cables,pipes, hoses

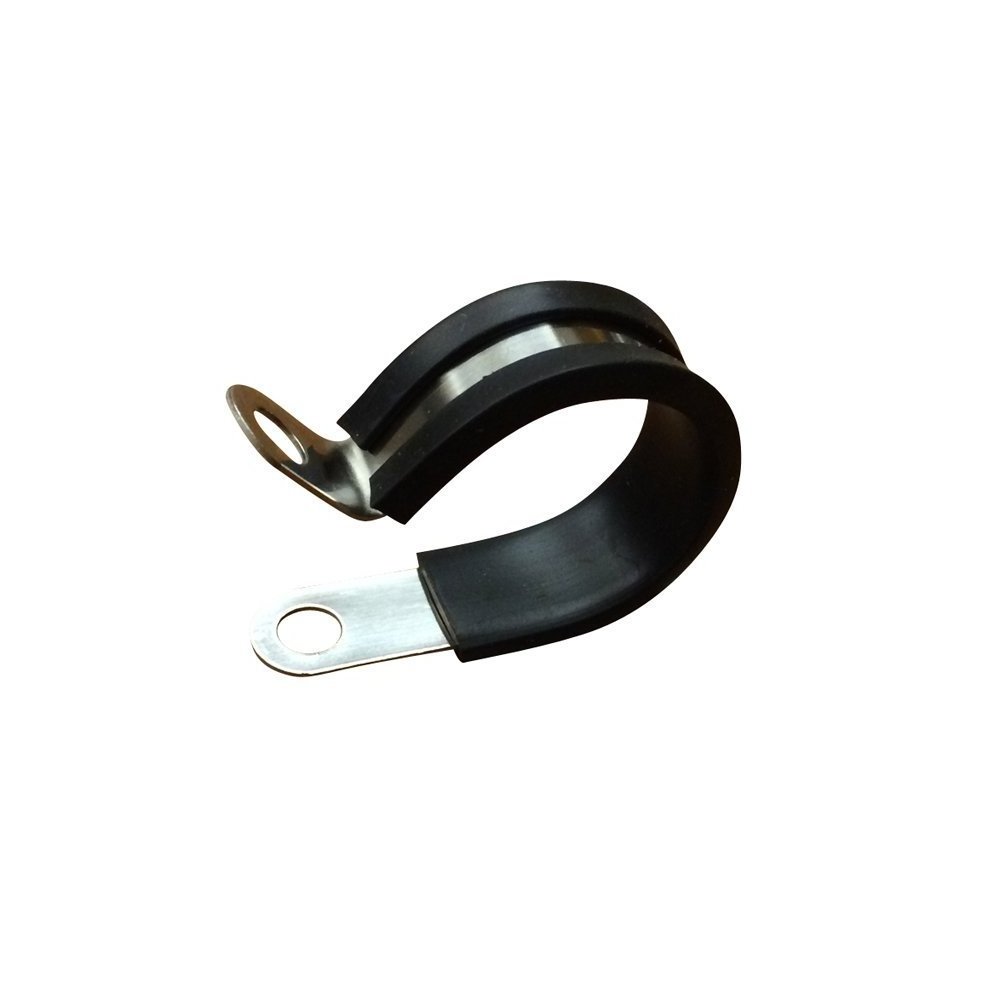

Rubber Lined P Clips Rubber Pipe Clamps R Types Hose Clamps
|
Article |
rubber hose clamp |
|
Material |
W1,W2,W4 |
|
Bandwidth |
8mm,12.7mm |
|
Band Thinkness |
0.6mm,0.7mm,0.8mm |
|
Diameter |
8-305mm |
|
Screw |
M5-M10 |
|
Delivery |
As your order quanlity |
|
Payment terms |
L/C, TT, Western Union |
| Port |
Tianjin or as your request |
|
Shipping |
By air, by express or by sea |
|
Package |
1. Packing concrete pump rubber hose clamp in plastic bag or box, then in export carton, outside is pallet. 2. As your request. |
|
Certificate |
ISO9001:2008,RoHS,SGS |
|
Oriens Advantage of Metal Stamping |
1. More than 25 years production experienc e 2. Strict QC system in steel pipe band clamps 3.Small quantity is accepted 4.P retty competitive price, quick reply, fast delivery |
More details of rubber hose clamp :
| Material | Band | Housing | Screw |
| W1 | Galvanized Steel | Galvanized Steel | Galvanized Steel |
| W2 |
Stainless Steel (201ss,304ss,430ss) |
Stainless Steel (201ss,304ss,430ss) |
Galvanized Steel |
| W4 |
Stainless Steel (201or304) |
Stainless Steel (201or304) |
Stainless Steel (201or304) |
|
Note: According to the requirement of customers, other sizes and material are also available . |
|||
Size of rubber hose clamp :
| Bandwidth(mm) | Size(mm) | Pcs/bag | Pcs/Carton | Carton Dimension(mm) |
| 8mm | 8-12 | 100 | 2000 | 320*270*130 |
| 8mm | 10-16 | 100 | 2000 | 380*270*150 |
| 8mm | 14-24 | 100 | 2000 | 380*270*200 |
| 8mm | 18-28 | 100 | 2000 | 380*270*240 |
| 8mm | 24-36 | 50 | 1000 | 380*270*190 |
| 8mm | 25-45 | 50 | 1000 | 380*270*240 |
| 8mm | 32-52 | 50 | 1000 | 380*270*290 |
| 8mm | 40-60 | 20 | 500 | 380*270*200 |
| 8mm | 47-67 | 20 | 500 | 380*270*250 |
| 8mm | 62-82 | 20 | 500 | 380*270*290 |
| 12.7mm | 10-22 | 50 | 1000 | 380*270*210 |
| 12.7mm | 11-25 | 50 | 1000 | 380*270*240 |
| 12.7mm | 14-27 | 50 | 1000 | 380*270*240 |
| 12.7mm | 18-32 | 50 | 1000 | 380*270*210 |
| 12.7mm | 14-38 | 20 | 1000 | 380*270*280 |
| 12.7mm | 19-44 | 20 | 1000 | 380*270*300 |
| 12.7mm | 35-51 | 20 | 500 | 380*270*230 |
| 12.7mm | 38-57 | 20 | 500 | 380*270*260 |
| 12.7mm | 40-64 | 20 | 500 | 380*270*290 |
| 12.7mm | 46-70 | 20 | 500 | 400*370*240 |
| 12.7mm | 52-76 | 20 | 500 | 400*370*280 |
| 12.7mm | 52-76 | 20 | 250 | 380*270*240 |
| 12.7mm | 59-82 | 20 | 250 | 380*270*260 |
| 12.7mm | 65-89 | 20 | 250 | 380*270*290 |
| 12.7mm | 76-92 | 20 | 250 | 380*270*290 |
| 12.7mm | 78-101 | 20 | 250 | 400*370*220 |
| 12.7mm | 98-114 | 20 | 250 | 400*370*240 |
| 12.7mm | 105-127 | 20 | 250 | 400*370*280 |
| 12.7mm | 120-146 | 20 | 250 | 400*370*300 |
| 12.7mm | 130-152 | 20 | 250 | 400*370*400 |
| 12.7mm | 120-165 | 10 | 250 | 400*370*400 |
| 12.7mm | 145-178 | 10 | 250 | 400*370*400 |
| 12.7mm | 130-203 | 10 | 250 | 400*370*400 |
| 12.7mm | 235-254 | 10 | 100 | 400*370*350 |
| 12.7mm | 280-305 | 10 | 100 | 400*370*350 |
Application of rubber hose clamp :
rubber hose clamps are widely used in the vehicle, ship, construction, fire control,
textile, the gasoline engine, the diesel engine, sprinkler irrigation machinery, mechanical equipment,
the hose outlet gas and heating, they are necessary for all kinds of hose interface tighten connecting
fittings.
