Quick Details
-
Model Number:
-
SI16-1T, SI16-1T
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Radial spherical plain bearing
-
Material:
-
Iron housing+Chrome Steel GCR15 bearing(or as required)
-
Brand:
-
LLH or as required
-
Package:
-
Industry+ Carton + Pallet or as required
-
Stock:
-
Great Supplying Ability
-
OEM ODM service:
-
Accept OEM service
-
Sample:
-
Avaliable
-
Service:
-
Customized Services
-
Certification:
-
ISO9001
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Printing Shops, Energy & Mining, Advertising Company, Other
-
Precision Rating:
-
P0 P2 P4 P5 P6
-
Brand Name:
-
LLH or as required
-
Model Number:
-
SI16-1T, SI16-1T
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Radial spherical plain bearing
-
Material:
-
Iron housing+Chrome Steel GCR15 bearing(or as required)
-
Brand:
-
LLH or as required
-
Package:
-
Industry+ Carton + Pallet or as required
-
Stock:
-
Great Supplying Ability
-
OEM ODM service:
-
Accept OEM service
-
Sample:
-
Avaliable
-
Service:
-
Customized Services
-
Certification:
-
ISO9001
female heim rose joint spherical rod end bearing SI16-1T rod end bearings m16 x 1.5
before your order online, feel free to contact me for a discount
A joint bearing , also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other
attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Rod End Bearing
mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.
Rod End Bearing
is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.
Rod End Bearing
Material
:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.
|
Bearing
|
Dimensions (MM)
|
Mass
|
||
|
d
|
d3
|
B
|
kg
|
|
|
6H
|
||||
|
SI5T/K
|
5
|
M5x0.8
|
8
|
0.016
|
|
SI6T/K
|
6
|
M6x1.0
|
9
|
0.022
|
|
SI8T/K
|
8
|
M8x1.25
|
12
|
0.047
|
|
SI10T/K
|
10
|
M10x1.5
|
14
|
0.077
|
|
SI10-1T/K
|
10
|
M10x1.25
|
14
|
0.077
|
|
SI12T/K
|
12
|
M12x1.75
|
16
|
0.1
|
|
SI12-1T/K
|
12
|
M12x1.25
|
16
|
0.1
|
|
SI14T/K
|
14
|
M14x2.0
|
19
|
0.16
|
|
SI14-1T/K
|
14
|
M14x1.5
|
19
|
0.16
|
|
SI16T/K
|
16
|
M16x2.0
|
21
|
0.22
|
|
SI16-1T/K
|
16
|
M16x1.5
|
21
|
0.22
|
|
SI18T/K
|
18
|
M18x1.5
|
23
|
0.32
|
|
SI20T/K
|
20
|
M20x1.5
|
25
|
0.42
|
|
SI22T/K
|
22
|
M22x1.5
|
28
|
0.54
|
|
SI25T/K
|
25
|
M24x2.0
|
31
|
0.72
|
|
SI28T/K
|
28
|
M27x2.0
|
35
|
0.82
|
|
SI30T/K
|
30
|
M30x2.0
|
37
|
1.1
|
|
SI30-1T/K
|
30
|
M27x2.0
|
37
|
1.1
|
|
SI35T/K
|
35
|
M36x2.0
|
43
|
1.6
|
|
SI40T/K
|
40
|
M42x2.0
|
49
|
2.4
|
|
SI50T/K
|
50
|
M48x2.0
|
60
|
5
|

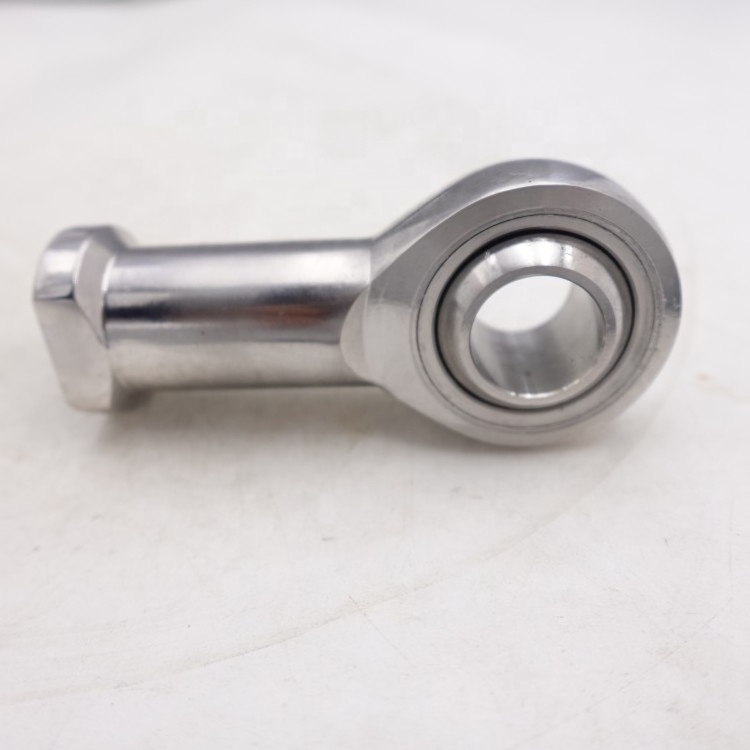

Product show
other model bearings you may interested
|
Bearing No.
|
Boundary dimensions mm
|
Mass
|
||
|
d
|
B
|
dk
|
Kg
|
|
|
POS 5
|
5
|
8
|
11.1
|
0.016
|
|
POS 6
|
6
|
9
|
12.7
|
0.026
|
|
POS 8
|
8
|
12
|
15.9
|
0.044
|
|
POS 10
|
10
|
14
|
19.1
|
0.072
|
|
POS 12
|
12
|
16
|
22.2
|
0.108
|
|
POS 14
|
14
|
19
|
25.4
|
0.161
|
|
POS 16
|
16
|
21
|
28.6
|
0.225
|
|
POS 18
|
18
|
23
|
31.8
|
0.295
|
|
POS 20
|
20
|
25
|
34.9
|
0.382
|
|
POS 22
|
22
|
28
|
38.1
|
0.488
|
|
POS 25
|
25
|
31
|
42.9
|
0.749
|
|
POS 28
|
28
|
35
|
47.6
|
0.949
|
|
POS 30
|
30
|
37
|
50.8
|
1.13
|
Package:
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Shipping Method:
1. for sample: By express courier, such as DHL, FeDex, UPS, TNT, EMS etc.
2.for large goods: By Air, by Land or by Sea.
Payment Terms:
A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Paypal
1.high precison high speed low friction
2.factory price
3.short delivery time (shenzhen port or guangdong port)
4.large stock is available
5.we can offer sample
6.many brands can choose and oem service
7.various payment terms(L/C,T/T,West Union,MoneyGram,Paypal)
8.we will find the perfect transportation ways for you
9. welcome customized service( customized size bearing, customized packing....)
