Quick Details
-
Product name:
-

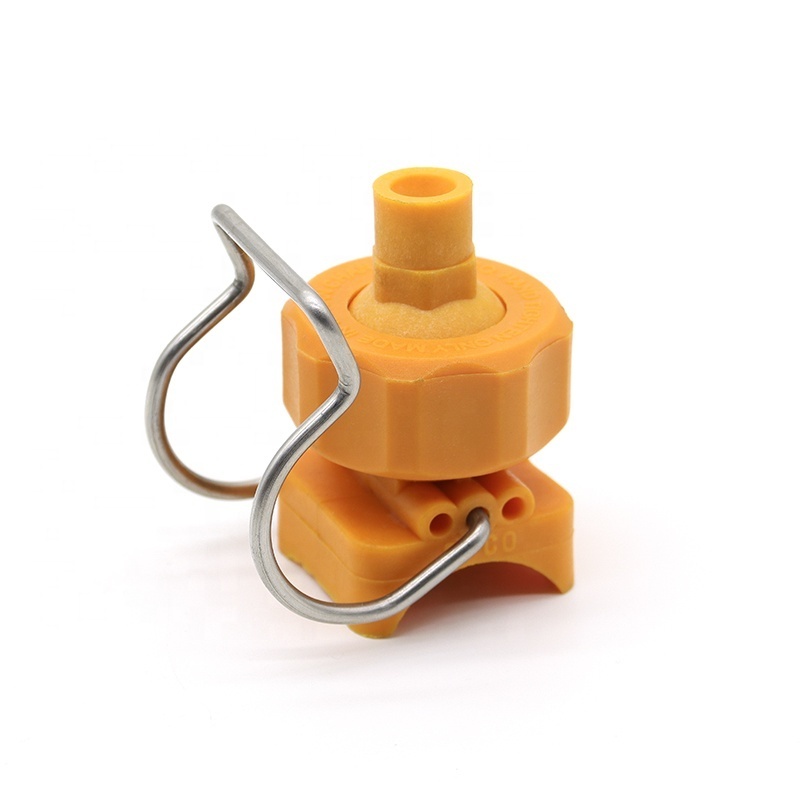

Adjustable Clamp Nozzle
-
Design feature:
-
Easy dismantling
-
Connection Type:
-
BSPT,NPT
-
Application:
-
Washing, Cleaning, Cooling, Dust Control
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Canada, Thailand, South Korea
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYCO
-
Model:
-
G Series
-
Product name:
-
Adjustable Clamp Nozzle
-
Design feature:
-
Easy dismantling
-
Connection Type:
-
BSPT,NPT
-
Application:
-
Washing, Cleaning, Cooling, Dust Control
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Canada, Thailand, South Korea
-
Marketing Type:
-
New Product 2020
Products Description
Specification
|
Product name
|
26988 Plastic clamp spray nozzle
|
|
Material
|
PP+304SS, PP+316SS
|
|
Thread size
|
1",1-1/4",1-1/2",2"
|
|
Thread type
|
BSPT
|
|
Spray pattern
|
Hollow cone,Flat fan, Full cone
|
|
Pressure
|
0.8bar - 4bar
|
|
Capacity
|
6.2L/min -48L/min
|
|
Spray angle
|
35-90 degree
|
|
Drop size
|
100-300μm
|
|
Application
|
1.Metal Cleaning
2.Degreasing in surface treatment 3.Phosphatizing in surface treatment 4.Other Low Pressure Spraying Applications |
|
Net weigh
|
56g, 68g, 75g
|
Deaign features:
Adjustable Ball-Type Clamp Nozzle have got two types: clamp connection type (26988/27988 series) and thread connection type (155series).
Common Application:
Metal Cleaning
Degreasing in surface treatment
Phosphatizing in surface treatment
Other Low Pressure Spraying Applications
Metal Cleaning
Degreasing in surface treatment
Phosphatizing in surface treatment
Other Low Pressure Spraying Applications
Spray pattern
Size and weight:
Performance data:
Our factory
Company profile
Dongguan Changyuan Spraying Technology Co., Ltd. which was found in the year 1997 is a professional Hi-tech Spraying &Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
CYCO offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle,water
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle.
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle.
Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so
on.And our products have been exported to many foreign countries, such as USA, German, England, Japan, Korean, Russia, India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
on.And our products have been exported to many foreign countries, such as USA, German, England, Japan, Korean, Russia, India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
Advanced Production Equipments:
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines,
2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines,
2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
Production Process
Product packaging
Transportation
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-We have answers. With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
