Quick Details
-
Model Number:
-
dm2550
-
Dimension:
-
483 x 45 x 375mm
-
Storage:
-
CUSTOMIZATION
-
SNR:
-
≥80dB
-
Output Power:
-
(8Ω,1kHz) 2x550W/650W/750/850W
-
Format:
-
CUSTOMIZATION
-
Weight:
-
6kg
-
Power Supply:
-
AC 110V/220V 50Hz/60Hz
-
Power consumption:
-
180w 210w 245w 275w
-
output:
-
(4Ω,1kHz) 2x900W/1050W/1200/1400W
Quick Details
-
Warranty:
-
3 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
veida
-
Model Number:
-
dm2550
-
Dimension:
-
483 x 45 x 375mm
-
Storage:
-
CUSTOMIZATION
-
SNR:
-
≥80dB
-
Output Power:
-
(8Ω,1kHz) 2x550W/650W/750/850W
-
Format:
-
CUSTOMIZATION
-
Weight:
-
6kg
-
Power Supply:
-
AC 110V/220V 50Hz/60Hz
-
Power consumption:
-
180w 210w 245w 275w
-
output:
-
(4Ω,1kHz) 2x900W/1050W/1200/1400W

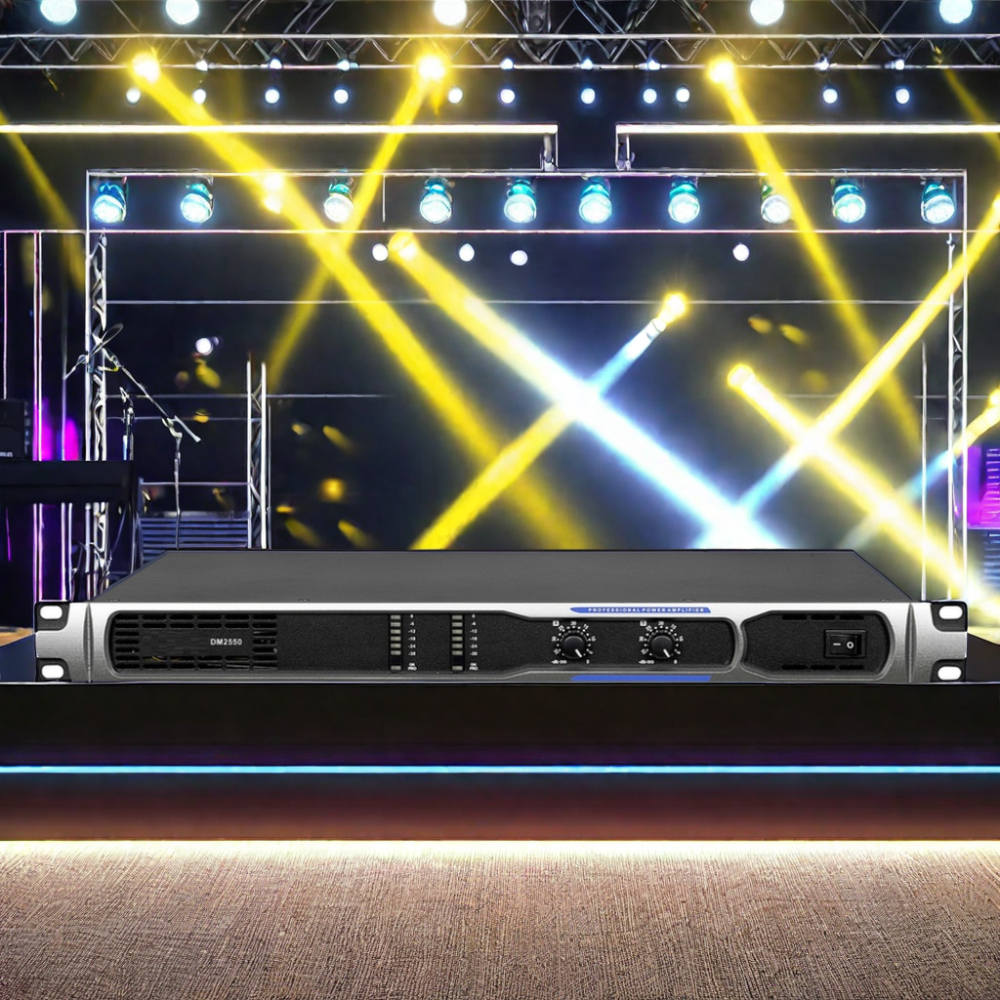

8 ohms 550w/650w/750w/850watts audio power amplifier
◆ Ultra-large capacity switching power amplifier.
◆ Automatic limiting output, short circuit, overload, over temperature, power-on delay and other protection functions
◆ The power amplifier is equipped with a delayed start system to protect the speaker from damage due to impact
◆ Balanced input interface
◆ 483MM standard rack structure
◆ Power amplifier part switching power supply part All have separate cooling systems
◆ Phoenix terminal input and output connectors
◆ The cooling fan is controlled by advanced stepless speed circuit
◆ 1U design, light body, easy to carry and install
Specification
|
Item No.
|
DM2550
|
DM2650
|
DM2750
|
DM2850
|
|||
|
output (8Ω、1kHz)
|
2x550W
|
2x650W
|
2x750W
|
2x850W
|
|||
|
output (4Ω、1kHz)
|
2x900W
|
2x1050W
|
2x1200W
|
2x1400W
|
|||
|
Bridge 8Ω、1kHz)
|
No
|
No
|
No
|
No
|
|||
|
Frequency response
|
20Hz~20kHz ±3dB
|
|
|
|
|||
|
T.H.D
|
1%(8Ω、550W)
|
1%(8Ω、650W)
|
1%(8Ω、750W)
|
1%(8Ω、850W)
|
|||
|
imput sensity
|
+4dB*(1.23V)
|
|
|
|
|||
|
Imput impedance
|
10kΩ(electronically balanced)
|
|
|
|
|||
|
S/N ratio
|
≥80dB
|
|
|
|
|||
|
Connectors terminal input
|
imput ( CH1-2):3-pin Phoenix
|
|
|
|
|||
|
|
output（CH1-2):2-pin Phoenix
|
|
|
|
|||
|
power supply voltage
|
AC110~120V、5060Hz 、AC220~240V、5060Hz(use internal jumper switchVia inside jumping switch)
|
|
|
|
|||
|
1/8 Power consumption
|
180W
|
210W
|
245W
|
275W
|
|||
|
working temperature
|
0~50℃
|
|
|
|
|||
|
working humidity
|
90%RH or under 90%RH
|
|
|
|
|||
|
size
|
483 x 45 x 375mm
|
|
|
|
|||
|
weight
|
6kg
|
|
|
|
|||
