Quick Details
-
Dimensions (L x W x H) (mm):
-
8520x2300x2550
-
Place of Origin:
-
Hubei, China
-
Product name:
-
wrecker truck body
-
Driving type:
-
4x2, 6x4, 8x4
-
Color:
-
white,yellow
-
Warranty:
-
1 Year
Quick Details
-
Emission Standard:
-
EURO 5
-
Condition:
-
New
-
Brand Name:
-
CLW
-
Dimensions (L x W x H) (mm):
-
8520x2300x2550
-
Place of Origin:
-
Hubei, China
-
Product name:
-
wrecker truck body
-
Driving type:
-
4x2, 6x4, 8x4
-
Color:
-
white,yellow
-
Warranty:
-
1 Year
Product Description

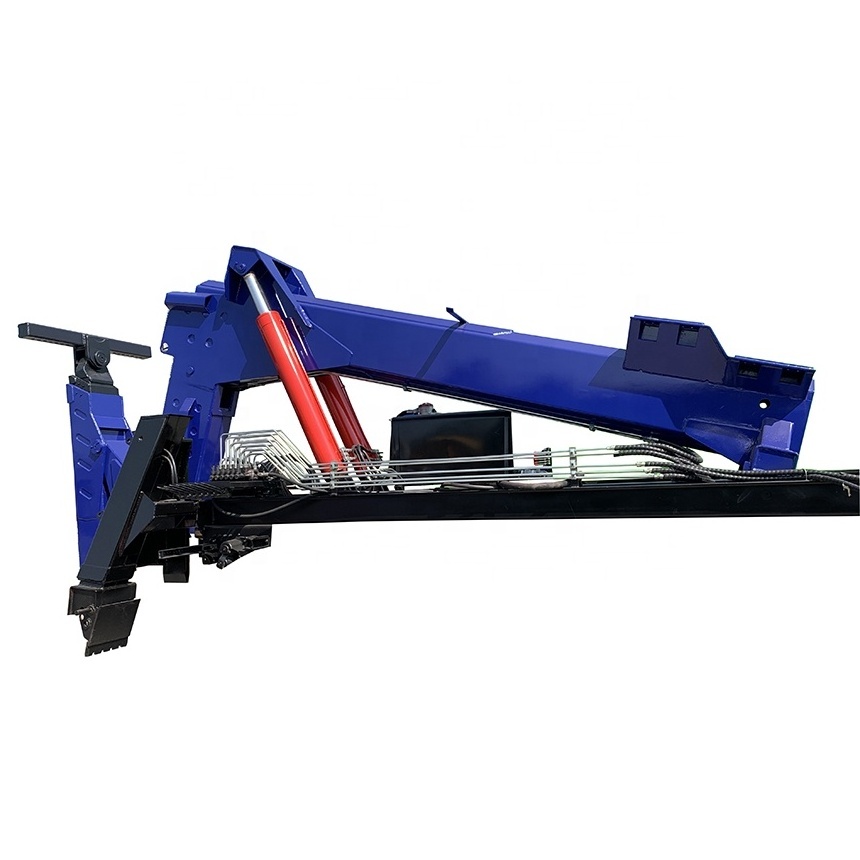

New design integrated wrecker truck body rotator wrecker towing truck for sales
cylinders and all necessary accessories parts without the chassis.
|
Parameter of 30-tons wrecker body
|
|
|
||
|
Boom
|
Two-section hexagon lifting boom and three section supporting arm
|
|
||
|
Max. Lifting quality of the boom
|
30000 kgs
|
|
||
|
Full extended max. lifting mass
|
8000kgs
|
|
||
|
The length of boom in full extended
|
8470mm
|
|
||
|
Cylinder telescopic stroke
|
3300mm
|
|
||
|
Max. lifting height of boom
|
6500mm
|
|
||
|
Quantity of winch
|
2 pcs
|
|
||
|
Each rated traction of winch
|
100 KN X2
|
|
||
|
The diameter of wire rope
|
φ22
|
|
||
|
The length of wire rope
|
60 x 2
|
|
||
|
Minimum wire rope speed
|
5 m/min
|
|
||
|
Max. lift mass of support arm
|
30000 kgs
|
|
||
|
Max. towing mass
|
≥60000kgs
|
|
||
|
Max. lifting q'ty at full extension
|
9500kgs
|
|
||
|
Effective lifting length
|
1460～3599mm
|
|
||
Details Images
Toolbox on the right
Toolbox on the left
portal frame
lights
Hydraulic legs
Two 10-tons winches
Hydraulic oil tanker
operating bar
2 pc of #7 fork/2 pc of #9 fork
2 pc of #11 fork /2 pc of #12 fork
J type hook (optional)
2 pcs of Spring fork
Tire holder
2 pcs of fork pedestal
Fork and Pedestal
2 pcs of high fork pedestal
fork and pedestal
Multi-way valve
PTO
