Quick Details
-
Brand Name:
-
BEFANBY
-
Product Name:
-
Pyrolysis copper bar electric railroad hydraulic lifting transfer cart
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Running Distance:
-
According to your requirement
-
Application:
-
industrial transfer
-
Color:
-
Yellow/Customized
-
Running Time:
-
Unlimited
-
Power supply:
-
Cable drum power
-
Volatge:
-
380V or customized
-
Size:
-
Customized Size
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BEFANBY
-
Product Name:
-
Pyrolysis copper bar electric railroad hydraulic lifting transfer cart
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Running Distance:
-
According to your requirement
-
Application:
-
industrial transfer
-
Color:
-
Yellow/Customized
-
Running Time:
-
Unlimited
-
Power supply:
-
Cable drum power
-
Volatge:
-
380V or customized
-
Size:
-
Customized Size
-
Certification:
-
CE ISO
Products Description

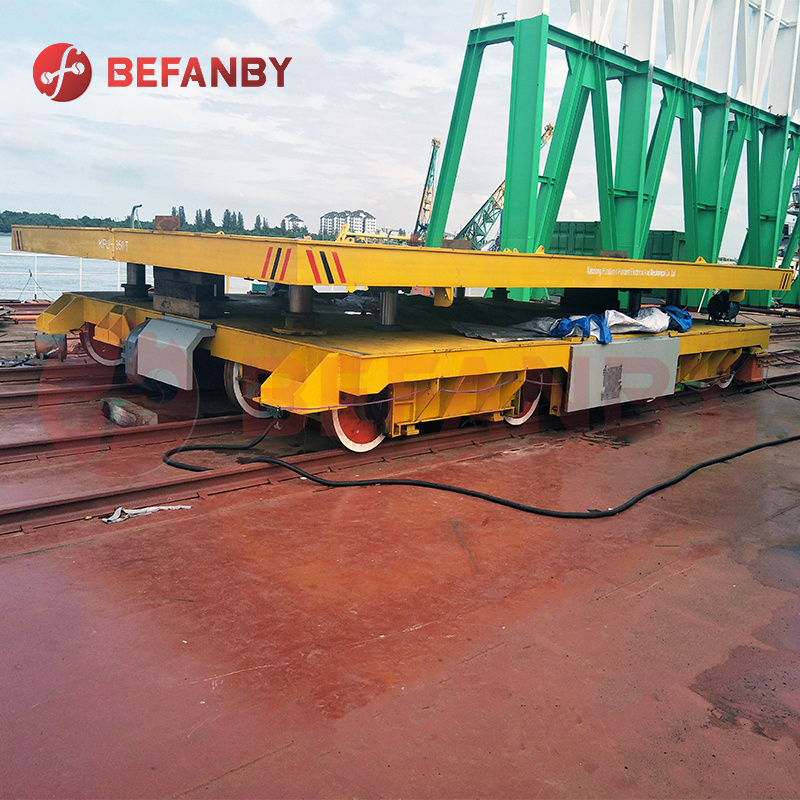

Pyrolysis factory metallurgy plant copper bar electric railroad hydraulic lifting transfer cart
KPJ Series railway flat carts are powered by the cable reels. The flat carts get power AC 380V through the device of cable reel which is installed at the bottom of the cart. The motor is controlled by the power through the AC control system. We use this principle to operate the carts, for example, start, stop, go forward and backward and so on. The operation system is low voltage 36V. The hydraulic lifting device can be installed.
Features for transfer cart:
1. High frequency of use, unlimited running time.
2. Easy operation and low cost.
3. The operating distance is less than 200 meters.
4. Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other
environments.
environments.
5. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
Details Images
Product Parameter
|
Modle
|
KPJ-10T
|
KPJ-30T
|
KPJ-50T
|
KPJ-80T
|
KPJ-100T
|
KPJ-150T
|
|||||
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.65
|
5.5*2.5*0.7
|
6.0*2.6*0.9
|
6.5*2.8*1.0
|
10*3.0*1.2
|
|||||
|
Power
|
Cable Drum
|
|
|
|
|
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|||||
|
Wheel Dia.
|
350mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|||||
|
Running Speed
|
25m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|||||
|
Motor Power
|
1.5kw
|
4kw
|
5.5kw
|
7.5kw
|
11kw
|
15kw
|
|||||
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|||||
|
Reference weight
|
4t
|
6.5t
|
7.8t
|
12.3t
|
14.1t
|
26.2t
|
|||||
|
Recommend Rail
|
P18
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
|||||
Remark:
the technical parameter of the transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.
