1500 ton hydraulic press deep drawing machine press machine hydraulic

1500 ton hydraulic press deep drawing machine press machine hydraulic

FOB Reference Price: Get Latest Price

≥1 Sets

US $158000

≥3 Sets

US $150000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Return Force (kN):: 10000 kN

Place of Origin:: Shandong, China

Brand Name:: woda

Year:: new

Voltage:: 220-600v

Dimension(L*W*H):: Customized

Weight (T):: 30 T

Model Number:: YQ32

Motor Power (kw):: 44 kw

Marketing Type:: New Product

Product name:: Deep Drawing Press Machine

Keyword:: Hydryalic Press

Power Source:: Hydraulic Power

Function:: Pressing

Advantage:: Easy Operation

Color:: Grey

Technology:: Advanced Technology

Open height:: 900 Mm

Table Size:: 1200*1300MM

Hydraulic press:: Hydraulic Press 600 Ton

Quick Details

Machine Type:: Four-column Three-beam Hydraulic Press

Slide Stroke (mm):: 900

Ejector Force (kN):: 1000

Return Force (kN):: 10000 kN

Place of Origin:: Shandong, China

Brand Name:: woda

Year:: new

Voltage:: 220-600v

Dimension(L*W*H):: Customized

Weight (T):: 30 T

Model Number:: YQ32

Motor Power (kw):: 44 kw

Marketing Type:: New Product

Product name:: Deep Drawing Press Machine

Keyword:: Hydryalic Press

Power Source:: Hydraulic Power

Function:: Pressing

Advantage:: Easy Operation

Color:: Grey

Technology:: Advanced Technology

Open height:: 900 Mm

Table Size:: 1200*1300MM

Hydraulic press:: Hydraulic Press 600 Ton

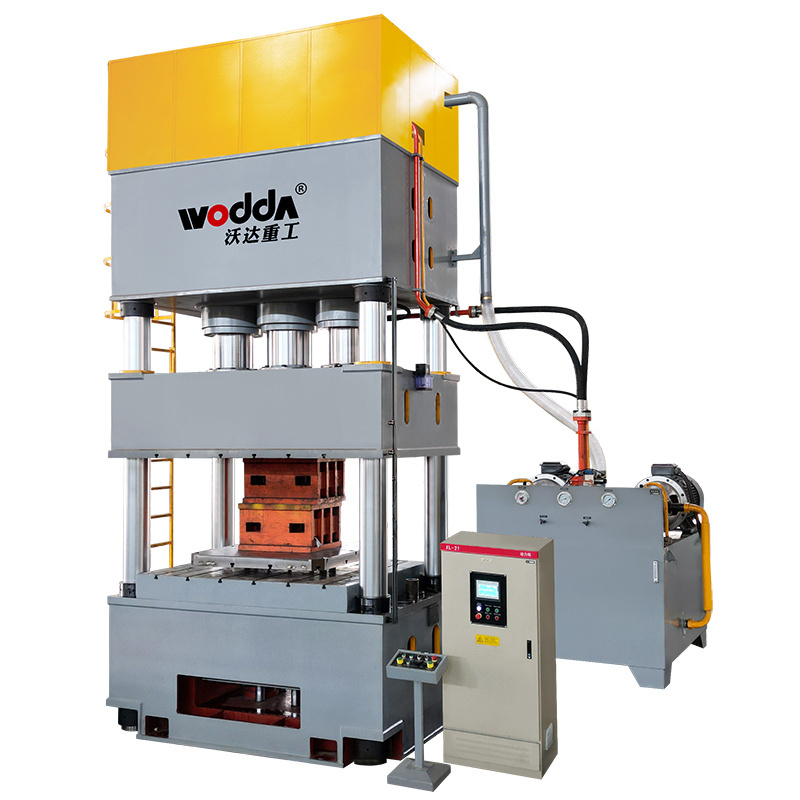

Metal stamping deep drawing machine four column 1500ton hydraulic press

Product Description

The main performance characteristics:

1500 ton Four Column Deep drawing Hydraulic press for stainless steel, Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point.Movement reliability,durable and long life span.It is constant pressure to realize with calm in the first place and calm producedure two develop technology,have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control.Can realization manual,Semi-automatic,automatic 3 operate form.

Application:

Hydraulic Press Machine 1500 Ton With Hydraulic Cushion For Stretching, such as stamping, bending, flanging sheet stretching, and can be engaged in correction, manhole cover making, press fit, plastic products, powder products, compression molding.

Specification	Units	1000t	1250t	1500t
Nominal force	KN	10000	12500	15000
Slider stroke	mm	900	900	900
Max opening height	mm	1500	1600	1600
Working table size	mm	1500×1500	1700x1600	2000x1600
Empty stroke descent speed	mm/s	120	120	120
Working speed	mm/s	6-12	5-10	4-8
Returning speed	mm/s	80	70	60
Motor power	kw	74	74	74
Pump displacement	ml/r	320	320	320
Ejection force	t	125	200	200
Ejection stroke	mm	350	450	450

Product Description

This machine is suitable for the pressing of bearng parts, bending, pressing and shaping of sheet metal stretching of simple parts,stretching of simple parts.Mainly used in enterprise assembly line.

Processing site

1. Hydraulic power part, manual and electric
2. Mechanical control part;
3. Working cylinder part;
4. Hydraulic power part;
By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling
5. Mechanical control part;
It is controlled by distribution box and combination button switch
6. Tubing part: connected by high pressure seamless steel tube

Company Introduction

Shandong Woda Heavy Industry Machine Tool Co., Ltd.is located in Tengzhou Economic Development Zone, Shandong Province .The company has long been committed to the development of forging machinery and CNC machine tools.The company is mainly engaged in the development,design,manufacture and technical service

of four-column hydraulic press,single-column hydraulic press, gantryhydraulic press,hydraulic stretcher

hydraulic cylinder,complete hydraulic system and hydraulicprerss,hydraulic electric controlproduction line .Products are widely used in steel,metallurgy ,light industrial machinery machinery ,chemical machenery ,auto
parts ,plastic products and other industries.

Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, Alibaba / China manufacturing network SGS certification.

We go to all kinds of fairs, if you're interested.You can come to China to participate in the exhibition, we will meet here.

Packing&Shipping

1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.

FAQ

Q:How about your machine quality?We are worry about the quality.

A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:Why Choose your company?

A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.

Q:How to select your machine?

A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
