Quick Details
-
Production Capacity:
-
100
-
Place of Origin:
-
China
-
Brand Name:
-
Lingdiao
-
Voltage:
-
380V
-
Weight:
-
3500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-

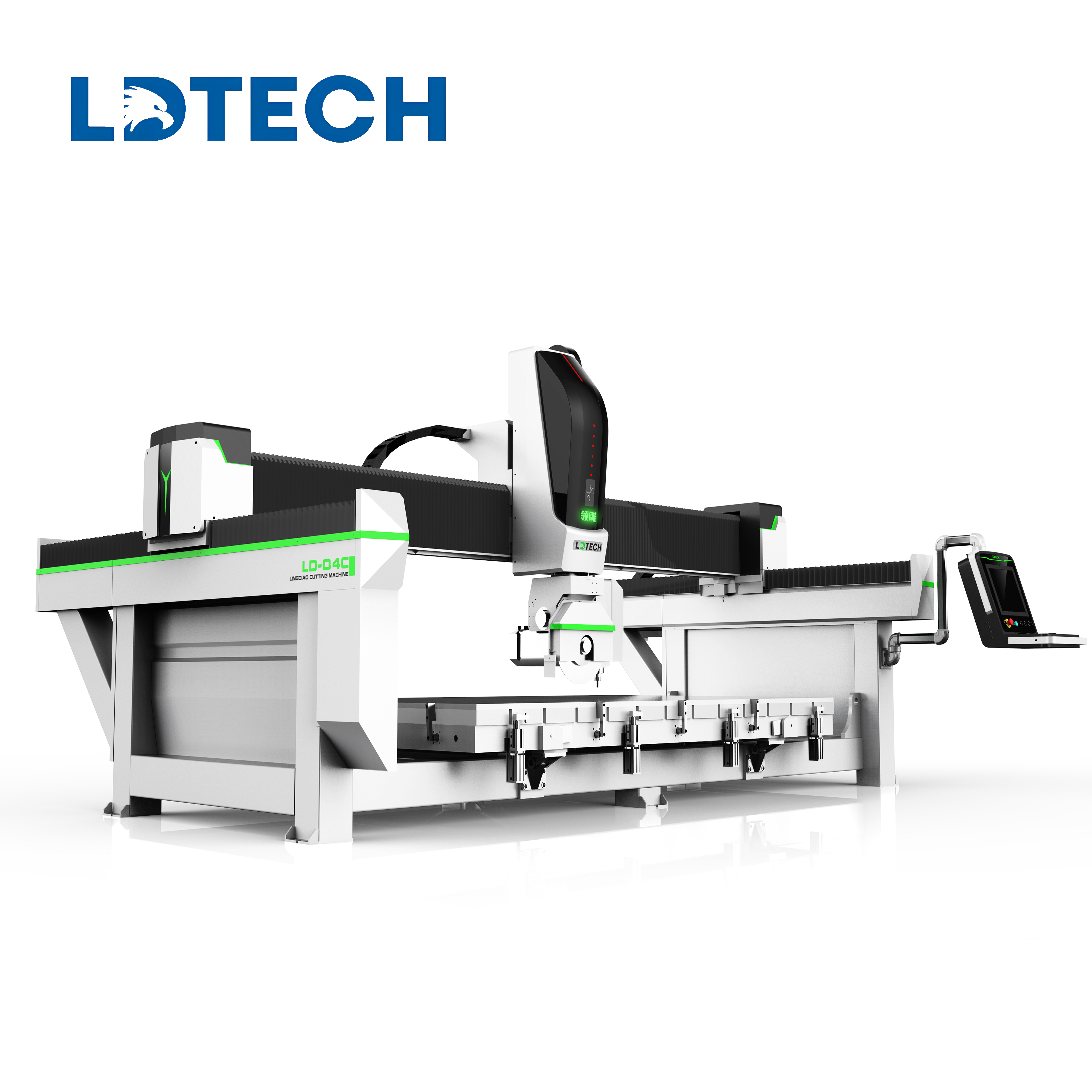

4 axis bridge saw cutting machine
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Function:
-
Cut Slabs
-
Control system:
-
PLC(imported Brand)
-
Model:
-
3220
-
Spindle power:
-
15.8kw SACCARDO
-
Blade diameter:
-
500mm
-
Motor:
-
Japanese Servo Motor
-
Transmission:
-
TBI Ball Screw
-
Software:
-
Pegasus
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
18.5kw
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
100
-
Place of Origin:
-
China
-
Brand Name:
-
Lingdiao
-
Voltage:
-
380V
-
Weight:
-
3500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
4 axis bridge saw cutting machine
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Function:
-
Cut Slabs
-
Control system:
-
PLC(imported Brand)
-
Model:
-
3220
-
Spindle power:
-
15.8kw SACCARDO
-
Blade diameter:
-
500mm
-
Motor:
-
Japanese Servo Motor
-
Transmission:
-
TBI Ball Screw
-
Software:
-
Pegasus
It adopts PLC system and Human-machine interface, combined with high precision magnetic ruler and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials, eg: Schneider brand, Omron brand; the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating.
1.Big Size &Precise Cutting
This series can cut to length 3000mm.
With automatic and high quality rails,the cutting operation is more stable and precise.
2.Multi-function
This series are designed for multi-function purpose.it’s very easy to shift and perform cutting, chamfering,drilling notching and polishing functions.
3.Automated Control
Well-design automatic system can be shifted freely among manual,automatic and continuous mode.
4.Easy Operation And Quick Assembly
It;s very easy for ne operators to learn how to operate the machine .By using forklift,it’s very easy to move the machine in warehouse or take it to jobsite.
5.Optional Laser Guide And Rolling Table
Customer can purchase laser guide or another rolling table separately
This series can cut to length 3000mm.
With automatic and high quality rails,the cutting operation is more stable and precise.
2.Multi-function
This series are designed for multi-function purpose.it’s very easy to shift and perform cutting, chamfering,drilling notching and polishing functions.
3.Automated Control
Well-design automatic system can be shifted freely among manual,automatic and continuous mode.
4.Easy Operation And Quick Assembly
It;s very easy for ne operators to learn how to operate the machine .By using forklift,it’s very easy to move the machine in warehouse or take it to jobsite.
5.Optional Laser Guide And Rolling Table
Customer can purchase laser guide or another rolling table separately
Specification
|
Model
|
LD-3220
|
|
Working size
|
3200*2000*500mm
|
|
Table Tilting degree(nº)
|
0-85°
|
|
Table Rotating degree(nº)
|
90-360°
|
|
Rotating Speed of A Axis
|
0-7R/min
|
|
Blade Speed
|
2800rpm/minute
|
|
Cutting Speed
|
1-2000mm/min
|
|
Cutting Precision
|
±0.2mm
|
|
Main Power
|
18KW
|
|
Water consumption(m3/h)
|
4
|
|
Cutting Thickness
|
0-100mm
|
|
Control System
|
Syntec 5axis
|
|
Motor
|
X/Y/Z Japan Yaskawa Servo Motor
|
|
Guide Rail
|
HIWIN Linear Rail 35mm
|
|
Voltage
|
380V
|
|
Overall Dimensions
|
6000x5000x2800mm
|
