Quick Details
-
CPU:
-
Amlogic S912 64 bit Octa core ARM Cortex-A53
-
GPU:
-
ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
-
OS:
-
Android 7.1
-
RAM:
-
3GB DDR3
-
ROM:
-
16GB EMMC FLASH
-
WIFI:
-
Built in 2.4G/5G WiFi Support IEEE 802.11 a/b/g/n/ac
-
Bt:
-
4.0
-
LAN Ethernet:
-
10/100M/1000M
-
DVB-S2, DVB-T2,DVB-C:
-
Support
Quick Details
-
Support Resolution:
-
4k
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Amlogic S912 64 bit Octa core ARM Cortex-A53
-
GPU:
-
ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
-
OS:
-
Android 7.1
-
RAM:
-
3GB DDR3
-
ROM:
-
16GB EMMC FLASH
-
WIFI:
-
Built in 2.4G/5G WiFi Support IEEE 802.11 a/b/g/n/ac
-
Bt:
-
4.0
-
LAN Ethernet:
-
10/100M/1000M
-
DVB-S2, DVB-T2,DVB-C:
-
Support

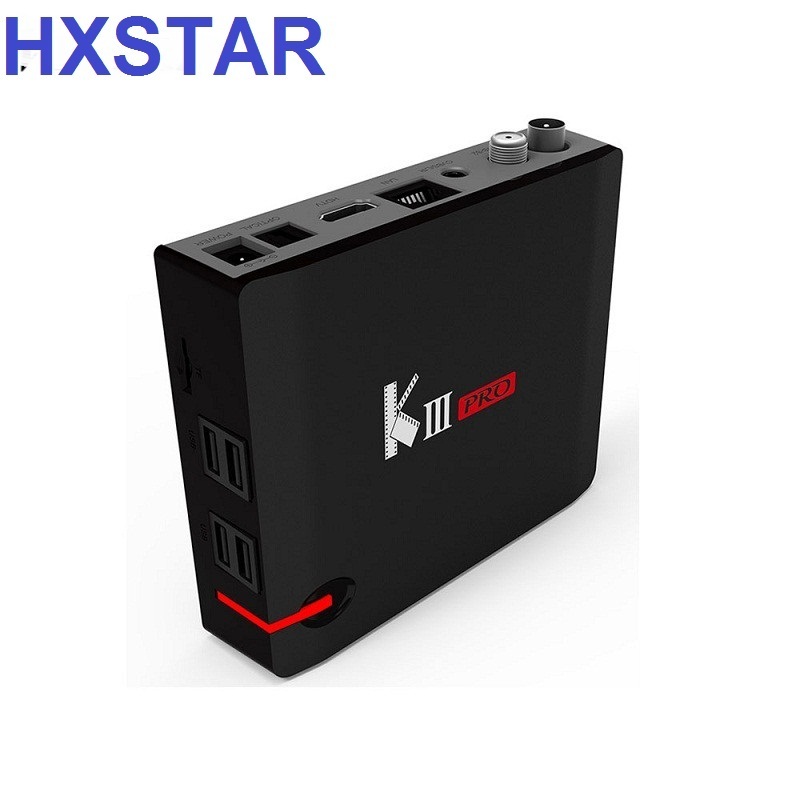

MECOOL KIII Pro S912 TV BOX support DVB-S2, DVB-T2,DVB-C Android TV Box 3G 16G Amlogic S912 Octa Core 4K H.265 Decoding 2.4G+5G Dual Band WiFi BT 4.0 Media Player
Main products details
Android TV Box + DVB-T2+DVB-S2+DVB-C
Amlogic S912 64 bit Octa core ARM Cortex-A53
Android 7.1 OS
DDRIII 3GB, eMMC Flash 16GB
Support H.265 HEVC
Support 2.4/5GHz Dual Wifi, 1000M LAN Ethernet, BT4.0
Support Cccam & Newcamd
Function & Features
|
Hardware Specifications |
|
|
CPU |
Amlogic S912 64 bit Octa core ARM Cortex-A53 |
|
GPU |
ARM Mali-T820MP3 GPU up to 750MHz (DVFS) |
|
RAM |
3GB DDR3 |
|
ROM |
16GB EMMC Flash |
|
WiFi |
Built in 2.4G/5G WiFi Support IEEE 802.11 a/b/g/n/ac |
|
Bt |
4.0 |
|
LAN Ethernet |
10/100M/1000M |
|
Main Features |
|
|
OS |
Android 7.1 |
|
DVB-S2 |
DVB-S2 system standard: ETS 302 307 |
|
Symbol Rates: QPSK,8PSK |
|
|
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|
|
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates |
|
|
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 |
|
|
Symbol Rates: 1- 55 Msps |
|
|
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
Input Signal level: -84 dBm to 0 dBm (average power) |
|
|
ANT. Connector:IEC TYPE F |
|
|
DVB-C |
Support |
|
DVB-T2 |
DVB-T2 system standard: ETSIEN 302 755 |
|
Support MPLP |
|
|
Demodulation: QPSK,16QAM,64QAM or 256QAM |
|
|
Forward error correction rate 1/2,2/3,3/4,3/5,5/6 |
|
|
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 |
|
|
Bandwith: 6/7/8MHz |
|
|
Input Frange range:54--860MHz Input Impedance:75 Ω |
|
|
Input Signal level: -84 dBm to 0 dBm (average power) |
|
|
ANT. Connector:IEC TYPE, female |
|
|
Video decorder |
H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps |
|
Video encorder |
H.264 1080P @60fps |
|
HDR |
HDR 10, HLG HDR |
|
Decoder format |
HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 |
|
Media format |
Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
|
Music format |
MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
|
Photo format |
HD JPEG/BMP/GIF/PNG/TIFF |
|
Network Function |
Miracast,,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc. |
|
Language |
Chinese , English ,Germany ,Japanese, Korea etc. 24 languages |
|
OTA |
Support OTA update |
|
Port Specifications |
|
|
I/O |
1* HDTV output 2.0 4K*2K @ 60Hz |
|
2* High speed USB 2.0,support U DISK and USB HDD |
|
|
1* TF CARD Support 1~32GB |
|
|
1* 3.5 Phone out CVBS&L/R output |
|
|
1*SPDIF output |
|
|
1* RJ45 LAN Ethernet 10M/100M/1000M |
|
|
Power Supply |
DC 12V/1A |
|
LED Indicator |
Power ON :blue; Standby :Red |
