* Motion detection sensor array.
* Automatic opening in the event of an emergency.
* Easy integration with any type of identification or authorization system.
* Bi-directional access control.
* Adjustable auto-delay closing.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Aluminum Alloy
-
Dimension:
-
1400*120*1000 mm
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Passing Speed:
-
35persons/min
-
Direction:
-
Bi-direction Adjustable
-
Motor:
-
Servo motor
-
Communication Interface:
-
RS485/RS232/IP/TCP
-
Passage Width:
-
650-900mm
-
Warranty:
-
2 Years
-
MCBF:
-
>5 million times
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuyuan
-
Model Number:
-
YY-SG112
-
Material:
-
Aluminum Alloy
-
Dimension:
-
1400*120*1000 mm
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Passing Speed:
-
35persons/min
-
Direction:
-
Bi-direction Adjustable
-
Motor:
-
Servo motor
-
Communication Interface:
-
RS485/RS232/IP/TCP
-
Passage Width:
-
650-900mm
-
Warranty:
-
2 Years
-
MCBF:
-
>5 million times

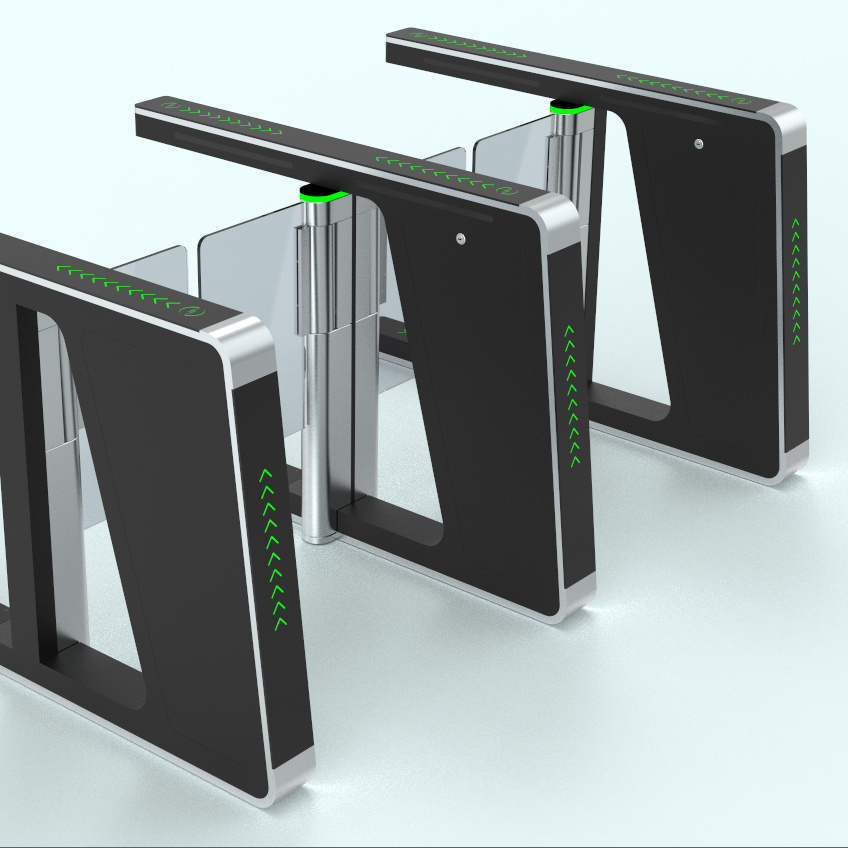

Product Overview
YY-SG112
Aluminum Alloy
Speed Gate
YY-SG112
Aluminum Alloy speed gate
is the narrowest, most intuitive speed gate turnstile available.
This speed gate turnstile is best-in-class when it comes to restricted spaces. Sleek in design and powered by state-of-the-art technology.
FEATURES AT A GLANCE
* Motion detection sensor array.
* Automatic opening in the event of an emergency.
* Easy integration with any type of identification or authorization system.
* Bi-directional access control.
* Adjustable auto-delay closing.
full height swing panel speed gate
handicapped wide lane speed gate
smart access control software
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Power Requirements
|
AC 100 to 120V / 200 ~ 240V, 50 / 60Hz
|
|
2
|
Working Temperature
|
-28°C to 60°C
|
|
3
|
Lane Width (mm)
|
635mm ( optional ≤ 850 )
|
|
4
|
Infrared Sensor
|
4 pairs
|
|
5
|
Dimension (L*W*H)
|
1400 * 120 * 1000 ( mm )
|
|
6
|
Cabinet Material
|
SUS304 Stainless Steel + tempered Glass
|
|
7
|
Lid Material
|
SUS304 Stainless Steel + Acrylic
|
|
8
|
Barrier Material
|
Tempered Glass ( optional: arcylic)
|
|
9
|
Emergency Mode
|
support
|
|
10
|
Motor
|
Brushless servo motor
|
PRODUCT CONFIGURATION
Brushless Servo Motor
Multi-function Speed gate motherboard
6 pairs of infrared sensors
SALES AND SERVICE NETWORK
Successful Project
Glass body speed gate in Italy
Speed Gate in USA
Speed gate in Czech Republic
SIMILAR PRODUCTS
FAQ
Q1： Are you manufacturer?
A1： Yes, we are a manufacturer with 13 years history.
Q2: When can you ship the tripod turnstile gate ?
A2: Normal 3-5 days, some stock goods within 24 hours.
Q3: Do you offer access control system too ?
A3: Yes. we have many kinds of access control solutions like cards. QR code. Face recognition.
Q4: Do you support OEM ?
A4: Absolutely yes. we can do private design and customization.
Q5: What is the warranty ?
A5: 2 years warranty. during this period. Any parts broken, you will get a new one to replace.
Q6: How to connect it to my access control device ?
A6: There is a signal input port on our gate controller board,its dry contact signal input. it can put into directly using without integrate.
Q7: Does it easy for installation ?
A7: Very easy, just prepare the floor or ground, fix it by Expansion screws.
