Quick Details
-
Dimension(L*W*H):
-
10125*3960*2250 mm
-
Weight:
-
18000 KG
-
Model:
-
1500*4000 mm
-
Application:
-
Ball Mills can grind materials either wet or dry
-
Grinding media:
-
Steel balls, Ceramic Ball, Steel Bar
-
Max. Weight of Grinding Balls Load:
-
15.0 tons
-
Cylinder Rotation Speed:
-
25.4 r/min
-
Feeding size:
-
<25 mm
-
Output size:
-
0.074-0.4 mm
-
Wearing Parts:
-
Cylinder Liner and Grinding balls
-
Power:
-
132 KW
-
Overall Dimension Size:
-
10125*3960*2250 mm
Quick Details
-
Capacity(t/h):
-
4.8-10.5 t/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Yongsheng
-
Dimension(L*W*H):
-
10125*3960*2250 mm
-
Weight:
-
18000 KG
-
Model:
-
1500*4000 mm
-
Application:
-
Ball Mills can grind materials either wet or dry
-
Grinding media:
-
Steel balls, Ceramic Ball, Steel Bar
-
Max. Weight of Grinding Balls Load:
-
15.0 tons
-
Cylinder Rotation Speed:
-
25.4 r/min
-
Feeding size:
-
<25 mm
-
Output size:
-
0.074-0.4 mm
-
Wearing Parts:
-
Cylinder Liner and Grinding balls
-
Power:
-
132 KW
-
Overall Dimension Size:
-
10125*3960*2250 mm
Products Description

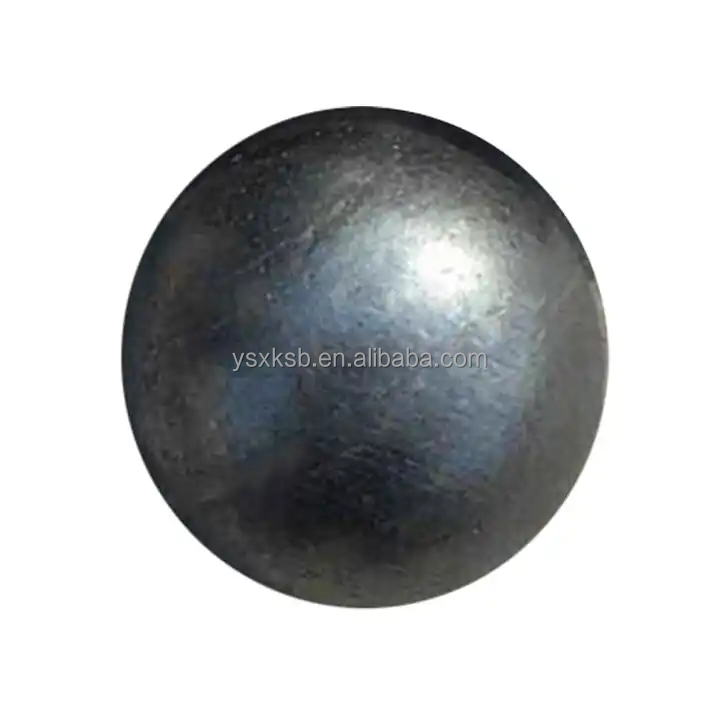

Factory outlet 20-150 mm forged and Casting Steel Balls Grinding Ball For Ball Mill Grind Medium
Round alloy steel bar material after passing the inspection, product according to the size of the steel ball . The steel forging is heated to a certain temperature by intermediate frequency furnace to ensure the effective generation of variables in the forging;
The red-hot steel forging is sent into the air hammer and processed by skilled operators.
After forging the red hot steel ball immediately into specially designed heat treatment equipment for quenching and tempering heat treatment, this can made the steel ball have high and uniform hardness value.
Specification
|
Parameters
|
Low Chrome
|
Medium Chrome
|
High Chrome
|
Higher Chrome
|
|
Cr %
|
0.8 – 3.5
|
4 – 9
|
10 – 18
|
22 – 25
|
|
C %
|
2.2 – 3.5
|
2 – 3.3
|
1.6 – 3.3
|
2.0 – 3.3
|
|
Si %
|
1.2 max
|
1.2 max
|
1.0 max
|
1.0 max
|
|
Mn %
|
1.5 max
|
1.8 max
|
2.5 max
|
2.5 max
|
|
Mo %
|
1.0 max
|
1.5 max
|
1.0 max
|
2.0 max
|
|
Cu %
|
0.5 max
|
1.0 max
|
1.5 max
|
1.5 max
|
|
P %
|
0.15 max
|
0.15 max
|
0.10 max
|
0.10 max
|
|
S %
|
0.15 max
|
0.15 max
|
0.10 max
|
0.10 max
|
|
Metallographic structure
|
Carbide + Pearlite
|
Carbide + Pearlite
|
Carbide + Martensite
|
Carbide + Martensite
|
|
Hardness (HRC)
|
45 or above
|
50 or above
|
58 or above
|
60 or above
|
|
Times of falling ball
|
8000 or above
|
12000 or above
|
15000 or above
|
22000 or above
|
|
Nominal diameter （mm）
|
Weight of single ball in average(g)
|
Quantity/ MT /ton
|
Surface hardness(HRC)
|
Endurance impact test(Times)
|
|
φ15
|
13.8
|
72549
|
>60 |
>10000
|
|
φ17
|
20.1
|
49838
|
|
>10000
|
|
φ20
|
32.7
|
30607
|
|
>10000
|
|
φ25
|
64
|
15671
|
|
>10000
|
|
φ30
|
110
|
9069
|
|
>10000
|
|
φ40
|
261
|
3826
|
|
>10000
|
|
φ 50
|
510
|
1959
|
|
>10000
|
|
φ60
|
882
|
1134
|
|
>10000
|
|
φ70
|
1401
|
714
|
|
>10000
|
|
φ80
|
2091
|
478
|
>58 |
>10000
|
|
φ90
|
2977
|
336
|
|
>10000
|
|
φ100
|
4084
|
245
|
|
>8000
|
|
φ120
|
7057
|
142
|
|
>8000
|
|
φ130
|
8740
|
115
|
|
>8000
|
The Other Type Balls----Forged Steel Ball
We can also supply The Other Type Balls----
20-150 mm
Forged Steel Ball
CUSTOMER MINE SITE VIEW
1400 TONS PER DAY PRODUCTION LINE FOR ROCK GOLD MINE
Packing & Delivery
( 1 ) Container bag : Dia20mm-150mm 1000kg / Container Bag
( 2 ) Steel Drums : Dia20mm-80mm 900kg / Drum : Dia90mm-150mm850kgs / Drum ;
( 3 ) Steel Drum on Pallet or Bag on Pallet
( 2 ) Steel Drums : Dia20mm-80mm 900kg / Drum : Dia90mm-150mm850kgs / Drum ;
( 3 ) Steel Drum on Pallet or Bag on Pallet
