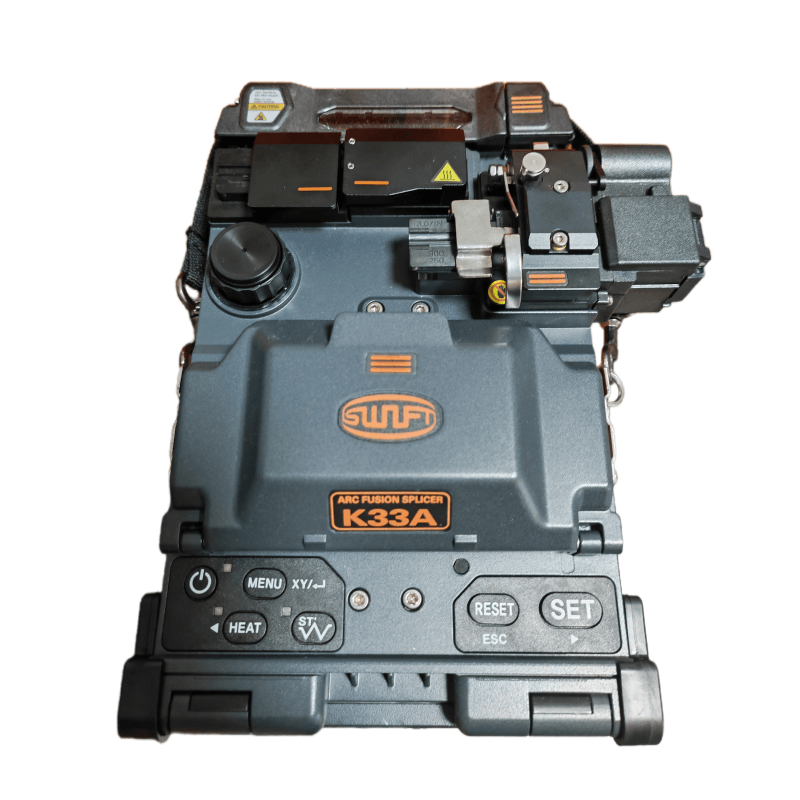

Automatic Thermal Stripper Swift K33a Fusion Splicer Splicing Machine Fiber Optic Tools

Automatic Thermal Stripper Swift K33a Fusion Splicer Splicing Machine Fiber Optic Tools

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ILSINTECH

Use:: Fusion Splice Machine

Warranty Time:: 1 Year

Product Name:: Ilsintech Swift K33A Fusion Splicer

Fiber alignment:: IPAAS Core Alignment

Fiber count:: Single fiber

Applicable type of fibers:: SM MM DS (G.653); NZDS (G.655)

Applicable fiber dimensions:: Cladding diameter: 80~150um, Coating diameter: 100m~3mm

Splicing time:: Typical 6 sec. (quick mode)

Sleeve heating time:: 9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)

Electrode life:: Up to 18,000 splices

Blade life:: Up to 77,000 cleaves

Dimension:: 142 (W) x 219 (L) x 137 (H)

Quick Details

Type:: Fiber fusion splicer

Model Number:: TW-FS-K33A-R1

Place of Origin:: South Korea

Brand Name:: ILSINTECH

Use:: Fusion Splice Machine

Warranty Time:: 1 Year

Product Name:: Ilsintech Swift K33A Fusion Splicer

Fiber alignment:: IPAAS Core Alignment

Fiber count:: Single fiber

Applicable type of fibers:: SM MM DS (G.653); NZDS (G.655)

Applicable fiber dimensions:: Cladding diameter: 80~150um, Coating diameter: 100m~3mm

Splicing time:: Typical 6 sec. (quick mode)

Sleeve heating time:: 9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)

Electrode life:: Up to 18,000 splices

Blade life:: Up to 77,000 cleaves

Dimension:: 142 (W) x 219 (L) x 137 (H)

Product Description

Automatic Thermal Stripper Swift K33a Fusion Splicer Splicing Machine Fiber Optic Tools

Product details

Product Name	Ilsintech Swift K33A Fusion Splicer
Fiber alignment	IPAAS Core Alignment
Fiber count	Single fiber
Applicable type of fibers	SM MM DS (G.653); NZDS (G.655)
Applicable fiber dimensions	Cladding diameter: 80~150um, Coating diameter: 100m~3mm
Splicing time	Typical 6 sec. (quick mode)
Sleeve heating time	9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)
Electrode life	Up to 18,000 splices
Blade life	Up to 77,000 cleaves
Dimension	142 (W) x 219 (L) x 137 (H)
Product Keywords	Fusion Splicer,Splicing Machine,fiber optic tools

Description

The new Swift K33A, a premium IPAAS core alignment splicer offers our exclusive All-In-One system that provides the best workability, and the integration of 5 functions into one unit (stripping, cleaning, cleaving, splicing, and protecting). This compact and rugged fiber splicer is ideal for medium and long range optical circuits, LAN, CATV, FTTx. With a rotating blade that can allow up to 77,000 cleaves, the K33A combines long-lasting durability with high precision performance.

Features

• Remote maintenance via Internet

• The fusion splicer with All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)

• No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)

• Wide 127mm (5.0 in) Color LCD monitor with electrostatic touch screen & bidirectional operation system

• Powerful lithium polymer battery with large capacity (6000mAh)

• Resistance to shock, dust, and water

• Compatible with Fusion Splice-On Connector (FSOC) in accordance with the industry standard

• Rotating blade allows up to 77,000 cleaves
