Quick Details
-
Throat Depth (mm):
-
400 mm
-
Width of Working Table (mm):
-
90 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WILAMAC
-
Year:
-
2023
-
Weight (KG):
-
8000
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 years
-
Type:
-
WC67Y/WC67K
-
Power:
-
Hydraulic
-
Material:
-
carbon steel/stainless steel
-
CNC or not:
-
CNC Bending Machine
-
Bending length:
-
3200mm Max
-
Control Axis:
-
4 Axis+crowning
-
Control system:
-
TP10S
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
Quick Details
-
Machine Type:
-
Torsion Bar
-
Length of Working Table (mm):
-
3200
-
Slider Stroke (mm):
-
200 mm
-
Throat Depth (mm):
-
400 mm
-
Width of Working Table (mm):
-
90 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WILAMAC
-
Year:
-
2023
-
Weight (KG):
-
8000
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 years
-
Type:
-
WC67Y/WC67K
-
Power:
-
Hydraulic
-
Material:
-
carbon steel/stainless steel
-
CNC or not:
-
CNC Bending Machine
-
Bending length:
-
3200mm Max
-
Control Axis:
-
4 Axis+crowning
-
Control system:
-
TP10S
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
Product Description

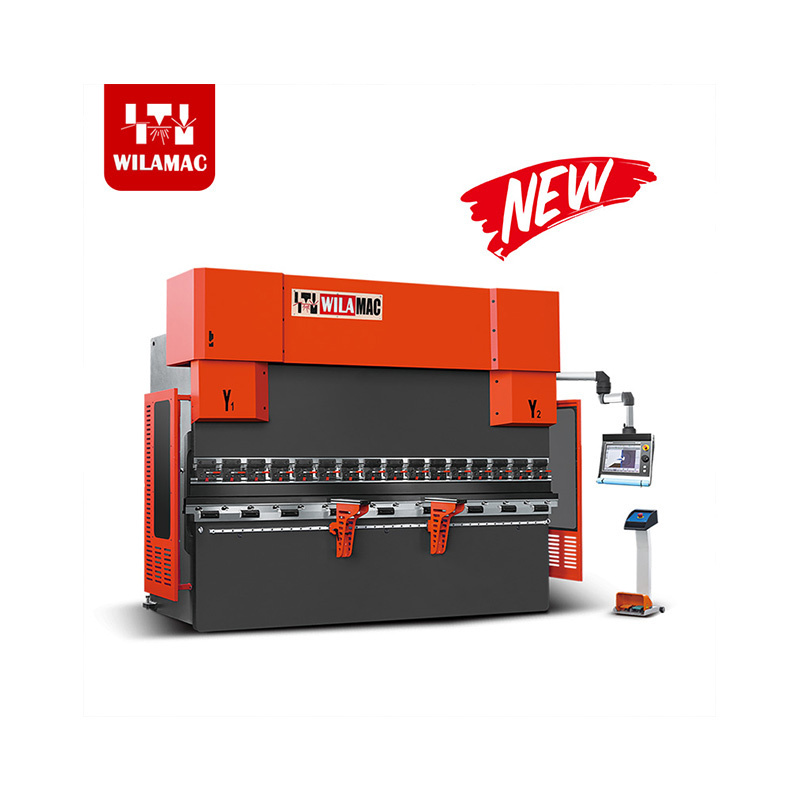

3M leading cnc metal folding machine/ Metal Plate Hydraulic Sheet Metal Press Brake
TP10s 4+1 axis Bending machines/ Press brake/ Metal bending machines/ Sheet metal bending machines/ Press brake machines/ CNC bending machines/ Steel bending machines/ CNC press brakes
1.Chrome coated cylinders are machined with 0,001 mm precision and pistons are specially hardened.
2.Clamps are user-friendly and machined with high precision.
3.Front support arms are slideable along machine length and easy to adjust.
4.Compact and well-known brand hydraulic system are produced according to CE standards.
5.Fast tool tightening.
6.Optic linear scales are sensitive up to ± 0,01 mm.
7.Synchronized working cylinders will give you the best bending result with their perfect repeatability ratio.
8. 2 axis ultra strong backgauge system with ± 0,01 mm repeatability.
9.By CNC controller, foldable back gauge fingers for reverse bending applications.
10.SIEMENS electrical system.
11.Automatic axis referencing when machine is turned on.
3.Front support arms are slideable along machine length and easy to adjust.
4.Compact and well-known brand hydraulic system are produced according to CE standards.
5.Fast tool tightening.
6.Optic linear scales are sensitive up to ± 0,01 mm.
7.Synchronized working cylinders will give you the best bending result with their perfect repeatability ratio.
8. 2 axis ultra strong backgauge system with ± 0,01 mm repeatability.
9.By CNC controller, foldable back gauge fingers for reverse bending applications.
10.SIEMENS electrical system.
11.Automatic axis referencing when machine is turned on.
|
Model
|
Nominal pressure
(KN)
|
Bending length (mm)
|
Between columns
(mm)
|
Throat depth (mm)
|
Stroke (mm)
|
Open height (mm)
|
Main power(KW)
|
|
30T-1600
|
300
|
1600
|
1295
|
200
|
80
|
370
|
3
|
|
63T-2500
|
630
|
2500
|
2000
|
280
|
120
|
380
|
5.5
|
|
80T-2500
|
800
|
2500
|
2000
|
280
|
120
|
390
|
7.5
|
|
80T-3200
|
800
|
3200
|
2600
|
280
|
120
|
390
|
7.5
|
|
100T-3200
|
1000
|
3200
|
2600
|
320
|
140
|
410
|
7.5
|
|
125T-3200
|
1250
|
3200
|
2600
|
320
|
140
|
410
|
11
|
|
125T-4000
|
1250
|
4000
|
3200
|
320
|
140
|
410
|
11
|
|
160T-3200
|
1600
|
3200
|
2600
|
380
|
200
|
460
|
15
|
|
160T-4000
|
1600
|
4000
|
3200
|
380
|
200
|
460
|
15
|
|
200T-3200
|
2000
|
3200
|
2600
|
380
|
200
|
460
|
15
|
|
250T-4000
|
2500
|
4000
|
3200
|
400
|
200
|
460
|
20
|
|
300T-6000
|
3000
|
6000
|
4900
|
420
|
250
|
480
|
30
|
(The parameters are provided for reference only!)
Request a free quotation!
Contact us now, If you need other sizes.
Request a free quotation! Contact now!
(we also have other press brake controllers)
|
Main configuration list
|
|
|
|
CNC Control system
|
TP10S
|
|
|
Electrical components
|
Schneider Electrical from French
|
|
|
Hydraulic System
|
Bosch-Rexroth from Germany
|
|
|
Main Motor
|
Siemens from Germany
|
|
|
Backgauge
|
Accurate positioning control X,R
|
|
|
Ball screw/ Liner guide
|
HIWIN from Taiwan
|
|
|
Foot switch
|
KACON from South Korea
|
|
|
Tubing connector
|
EMB from Germany Brand
|
|
|
Hydraulic Pump
|
Sunny from America
|
|
Detailed Images
1.Through the Solidworks of Stress analysis
2.
Framework by heat treatment
3.TP10S CNC System
4. Electrical cabinet with IP54 grade
5.Schneider Electric Components
6. Servo Motor
7.Hydraulic System, Bosch-Rexroth
8. SUNNY Pump
9.Crowning System (Not required below 3200 mm)
10. Magnetic scale
11.Quick clamp
12. Supporting arms
13.Ball screw and linear guide
14.Finger block
15.EMB Tubing connector
16.SIEMENS Motor
17.Light curtain (optional)
18.Laser protective device (optional)
19.Torsion-bar with rack structure
20.Press brake punch and die tool
21.Servo control R axis
22.Multifunctional Foot Switch
This is a
Mexican
customer who came to visit our press brake factory
Press Brake Toolings
Our Service
Packing & Delivery
Certifications
