- Product Details
- {{item.text}}
Quick Details
-
Input Voltage(V):
-
AC 110-240
-
Lamp Luminous Flux(lm):
-
7950
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cheng Wen
-
Emitting Color:
-
RGB
-
Color:
-
13 colors +blank + rainbow color, half color effect
-
Gobo wheel:
-
11 fixed gobos + open + 3 glass gobos
-
Channel:
-
20CH
-
Strobe:
-
strobe macro control available
-
Prism:
-
8-facet Prism / 8+16+24-facet prism rotation
-
Control mode:
-
DMX512/master-slave/sound/auto
-
Dimmer:
-
0-100% ,mechanical dimming and free dimming available.
-
Display:
-
LCD Display
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Type:
-
Moving Lights
-
Warranty(Year):
-
2-Year
-
Input Voltage(V):
-
AC 110-240
-
Lamp Luminous Flux(lm):
-
7950
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cheng Wen
-
Emitting Color:
-
RGB
-
Color:
-
13 colors +blank + rainbow color, half color effect
-
Gobo wheel:
-
11 fixed gobos + open + 3 glass gobos
-
Channel:
-
20CH
-
Strobe:
-
strobe macro control available
-
Prism:
-
8-facet Prism / 8+16+24-facet prism rotation
-
Control mode:
-
DMX512/master-slave/sound/auto
-
Dimmer:
-
0-100% ,mechanical dimming and free dimming available.
-
Display:
-
LCD Display

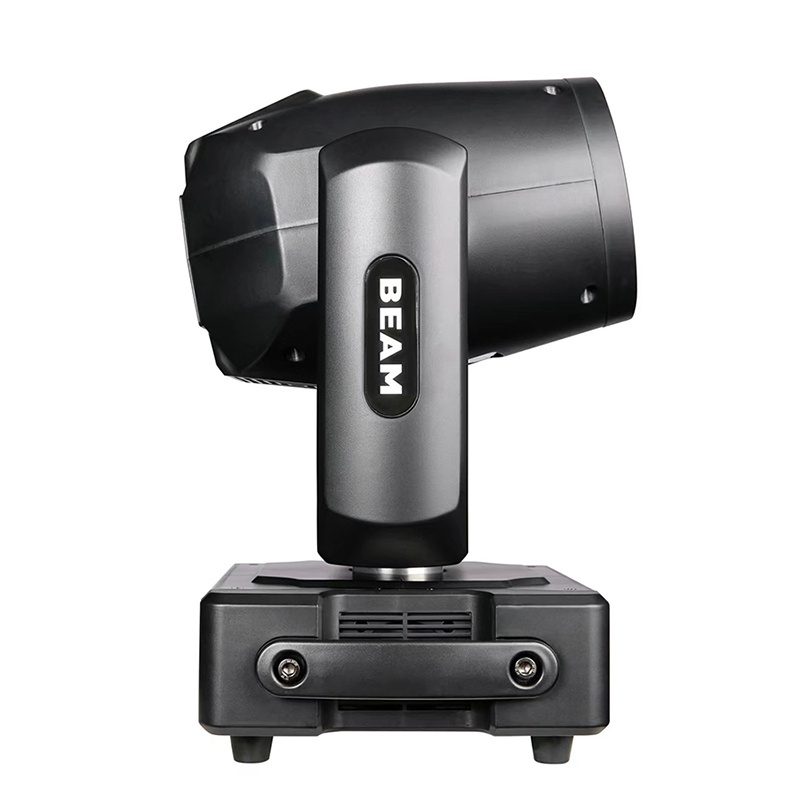

Products Description
Light Source: 250w lamp (life:2200 hours Color temperature: 8000K)
Channel mode:20 DMX512 Channel
Pan scan：540°(16bit) Electric correction
Tilt scan：270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show
Color wheel: one color wheel, 13 colors +blank + rainbow color, half color effect
Gobo: 11 fixed gobos + open + 3 glass gobos
Effect Wheel：Prism 1 : 8-facet prism rotation
Prism 2: 8+16+24-facet prism rotation , 2 prisms can be overlapped. effect move , frost,
0-100% mechanical dimming, mechanical dimming and free dimming available.
strobe macro control available.
Lens optical system mechanical focus .beam angle 0～4°
Over heat protection
Power Input: 100-240V，50/60Hz
Power Dissipation：280W
IP level : IP20
Magnetic ballast and AC/DC power supply
Product size :286*233.5*441mm
Packing Size: 61*36*68cm (2in1 flight case)
Net weight：39.4KG
Detail Image
Certificate
Company Introduction
Guangzhou Cheng Wen Photoelectric Technology Co.,Ltd.
was established in 2012,
is a independent
professional manufacturer of the stage equipments and LED display with over 10 years experience,we can always make the quality products at the competitive price to fit the clients' exact business needs.
The products have already been widely applied in both domestic and oversea markets.The reliable quality have been praised all the time by the customers .
The main market of our product is Colombia, Mexico, Brazil, America, Spain, Germany, France, Thailand, Vietnam, Pakistan, Japan and many other countries in North America and South America.
The main market of our product is Colombia, Mexico, Brazil, America, Spain, Germany, France, Thailand, Vietnam, Pakistan, Japan and many other countries in North America and South America.
Exhibition
Packing&Shipping
FAQ
1.Q:What is our factory product range?
A:We are the professional manufacturer in designing and producing: beam lights, moving head lights, wall wash lights, LED par lights, laser lights, follow lights, controllers, smoke machines, indoor and outdoor led display screens, etc .
2.Q:How to order?
A : Please send us your purchase order by Alibaba, E-mail,Skype, Facebook or making a call.All the inquiry information we need to know include the product detail(the more specific,the better),delivery time required, shipping information,And it could not be more perfect if you can tell us your budget.So we can reply you with a clear and competitive quotation.
3.Q:How long and how to get sample from us?
A: a.If you need the samples to check the quality, we will make it as same as requested.And we will start the production after we receive not only the specific details of the order but also the payment.You should pay for the cost of the sample and the shipping
b.Lead time for making sample about 2~3 days;
c.The shipping cost for samples:It depends on the total weight,packing size and your location.
4.Q:What is the payment terms for sample and order amount?
A:It's acceptable for us when the sample order is only one piece of the product.And we accept a lot of payment terms such as WeChat,Western Union,MoneyGram etc.
5.Q:How long will the warranty period last?
A:We usually offer 2-Years warranty.
A:We are the professional manufacturer in designing and producing: beam lights, moving head lights, wall wash lights, LED par lights, laser lights, follow lights, controllers, smoke machines, indoor and outdoor led display screens, etc .
2.Q:How to order?
A : Please send us your purchase order by Alibaba, E-mail,Skype, Facebook or making a call.All the inquiry information we need to know include the product detail(the more specific,the better),delivery time required, shipping information,And it could not be more perfect if you can tell us your budget.So we can reply you with a clear and competitive quotation.
3.Q:How long and how to get sample from us?
A: a.If you need the samples to check the quality, we will make it as same as requested.And we will start the production after we receive not only the specific details of the order but also the payment.You should pay for the cost of the sample and the shipping
b.Lead time for making sample about 2~3 days;
c.The shipping cost for samples:It depends on the total weight,packing size and your location.
4.Q:What is the payment terms for sample and order amount?
A:It's acceptable for us when the sample order is only one piece of the product.And we accept a lot of payment terms such as WeChat,Western Union,MoneyGram etc.
5.Q:How long will the warranty period last?
A:We usually offer 2-Years warranty.
