Quick Details
-
Application:
-
Hay
-
Dimension(L*W*H):
-
4100*2150*1300mm
-
Weight:
-
2000 KG
-
Product name:
-
pine straw crops baler square hay baler machine for sale
-
Brand:
-
Nkun
-
Working width(mm):
-
1440-1600
-
Color:
-
green
-
Matched power(hp):
-
25-50
-
Working efficiency:
-
80-240 bales per hour
-
PTO speed:
-
540r/min
-
MOQ:
-
1 Set
-
Bale Length:
-
30-130(adjustable)
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nkun
-
Application:
-
Hay
-
Dimension(L*W*H):
-
4100*2150*1300mm
-
Weight:
-
2000 KG
-
Product name:
-
pine straw crops baler square hay baler machine for sale
-
Brand:
-
Nkun
-
Working width(mm):
-
1440-1600
-
Color:
-
green
-
Matched power(hp):
-
25-50
-
Working efficiency:
-
80-240 bales per hour
-
PTO speed:
-
540r/min
-
MOQ:
-
1 Set
-
Bale Length:
-
30-130(adjustable)
Products Description

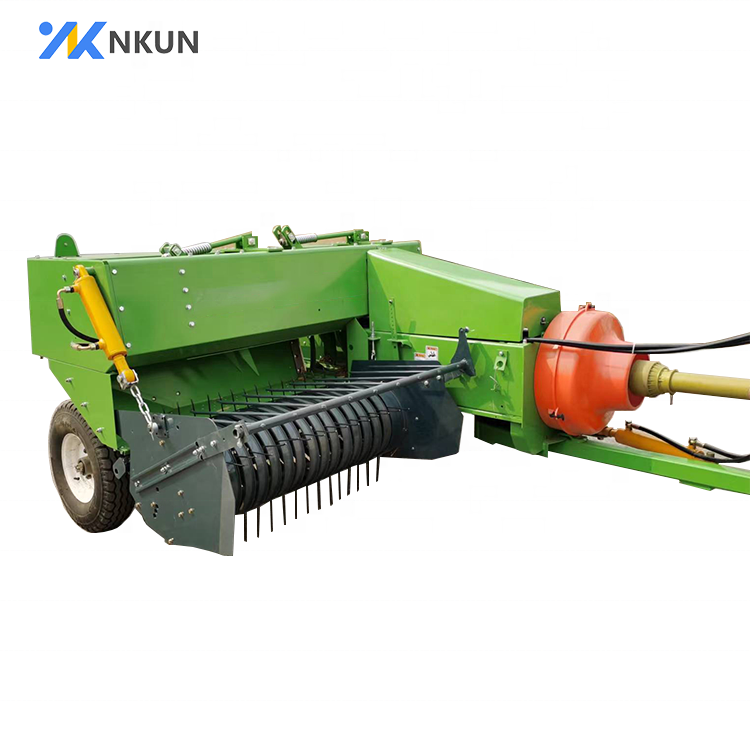

Farm machinery pine straw crops baler square hay baler machine for sale
NKFK series Square Baler should be trailed by tractor or combine harvester and working for picking up rice straw , wheat straw, soybean, corn stalk or forage grass scattered in the field and deliver them into forming assembly which will make straw or forage grass into square package with compression space.needn't stop the tractor after the bales are finished, so, the efficiency is higher than a round baler.
Advantages
：
1).Simple and Compact in structure
2). Easy operation
3).High working efficiency
4).Low cost and spare parts are available from us.
5).offset design, easy to check the working situation.
6).for compact tractors 25HP is enough.
7).towed type, using 2 point link or trailer mounted
8).widely used in all kinds straw
NKFK series Square Baler
design details：
1. two stage PTO transmission
2. hydrualic adjust towing angle
3. hydrualic adjust pickup height
4. fan over knotter.
Product Paramenters
|
Model
|
NKFK2060
|
Model
|
NKFK5070
|
|
Dimensions
|
4100*2150*1300mm
|
Bale cross size （width*height）
|
46*36cm
|
|
Structural Weight
|
1030kgs
|
Bale length
|
30-130cm,adjustable
|
|
Working Width
|
1440mm
|
Working width
|
160cm
|
|
Cross Size of Bale
(height&width)
|
320*420mm
|
Spring tooth number
|
78 pieces
|
|
Length of Bales
|
300-1200mm
|
Knot number
|
2
|
|
Spring Teeth No.s
|
32
|
Matched power
|
Above 55hp （29.4-51.4KW）
|
|
Plunger Stoke
|
600mm
|
PTO speed
|
540rpm
|
|
Plunger Frequency
|
92times/min
|
Working speed
|
32km/h
|
|
Working Efficiency
|
80-240bales/h
|
Overall size
|
6260*2800*1800mm(length*width*height)
|
|
Matching Power
|
25-50hp
|
Weight
|
2000kgs
|
|
PTO Speed
|
540 rpm/min
|
Number if twine bobbins,pcs (thread to tie up the bale)
|
8
|
|
/
|
/
|
Speed of pressing piston,stroke/min
|
93
|
|
/
|
/
|
Right tire size(cm)
|
31*13.5-15
|
|
/
|
/
|
Left tire size(cm)
|
10-15
|
