Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO electric winch
-
Model Number:
-
PA- Electric Winch
-
Electric Winch Volt:
-
110v,220V
-
Wire Less Control:
-
Avilale
-
hoist Single Speed:
-
Yes
-
Electric Winch Warranty:
-
1 Year
-
MOQ:
-
1 SET
Quick Details
-
Power Source:
-
Electric
-
Application:
-
AUTO
-
Capacity:
-
electric winch
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO electric winch
-
Model Number:
-
PA- Electric Winch
-
Electric Winch Volt:
-
110v,220V
-
Wire Less Control:
-
Avilale
-
hoist Single Speed:
-
Yes
-
Electric Winch Warranty:
-
1 Year
-
MOQ:
-
1 SET

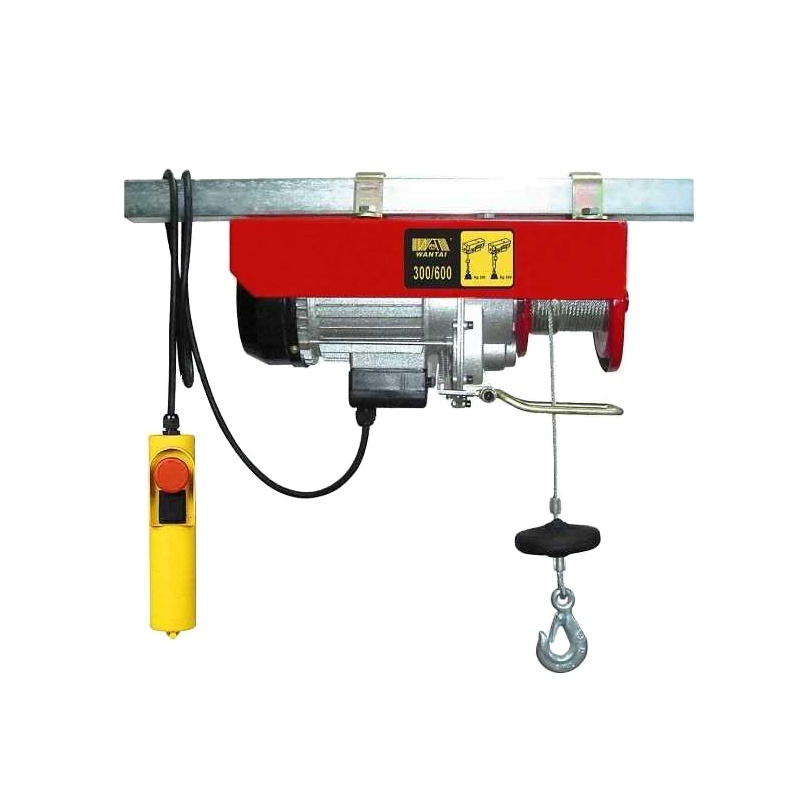

Singe Speed Small Construction 220v Electric Winches Mini Electric Hoists
Small Electric Winch Mini Electric Hoist 220v
| Product parameters of Small Electric Winch Mini Electric Hoist 220v | |||||||
|
Model |
PA200 |
PA250 |
PA400 |
PA500 |
PA600 |
PA800 |
PA1000 |
|
Rated Volt(V) |
230-50hz S3 20% 10 min |
||||||
|
Input Power (w) |
450 |
500 |
750 |
900 |
1050 |
1300 |
1600 |
|
Rate Lifting(kg) |
100/200 |
125/250 |
200/400 |
250/500 |
300/600 |
400/800 |
500/1000 |
|
Lifting height(m) |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
|
Lifting speed(m/min) |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
|
packing dimensions(cm) |
44*38*20 |
44*37*25 |
44*37*25 |
44*37*25 |
53*45*19 |
53*28*35 |
53*28*35 |
|
G.W/N.W |
24/22 |
25/24 |
25/33 |
36/34 |
41/38 |
38/36 |
40/38 |
|
quan/ctn(pcs) |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
1. Steel body cover.
2. High Quality wire rope.
3. Most tensile safety hooks without break
4. Compact and high efficient motor with heat protection device
5. Use Copper motor,big power and different voltage are available
6. Push button is with 24V low voltage to guarantee safety and limit switch system
7. Sensitive break system .Friction disk without asbestos
8. Choose presice process of high tensile helix gear working system to keep lower noise
9. Low headroom space to suit different lifting length.
10. IP54 protection grade on electric hoist for prevent water and dust.
11. Insulation class: FED 25%
12. One year guarantee.
