Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Spectrophotometer
-
Integrating Sphere Size:
-
154mm
-
Spectrophotometric Mode:
-
Concave Grating
-
Sensor:
-
256 Image Element Double Array CMOS Image Sensor
-
Wavelength Range:
-
360-780nm
-
Wavelength Interval:
-
10nm
-
Semi-band Width:
-
10nm
-
Measured Reflectance Range:
-
0-200%
-
Observer Angle:
-
2°/10°
-
Measuring Time:
-
About 2.4s (Measure SCI & SCE about 5s)
Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-GS6060
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Spectrophotometer
-
Integrating Sphere Size:
-
154mm
-
Spectrophotometric Mode:
-
Concave Grating
-
Sensor:
-
256 Image Element Double Array CMOS Image Sensor
-
Wavelength Range:
-
360-780nm
-
Wavelength Interval:
-
10nm
-
Semi-band Width:
-
10nm
-
Measured Reflectance Range:
-
0-200%
-
Observer Angle:
-
2°/10°
-
Measuring Time:
-
About 2.4s (Measure SCI & SCE about 5s)
Product Description
Product Name:

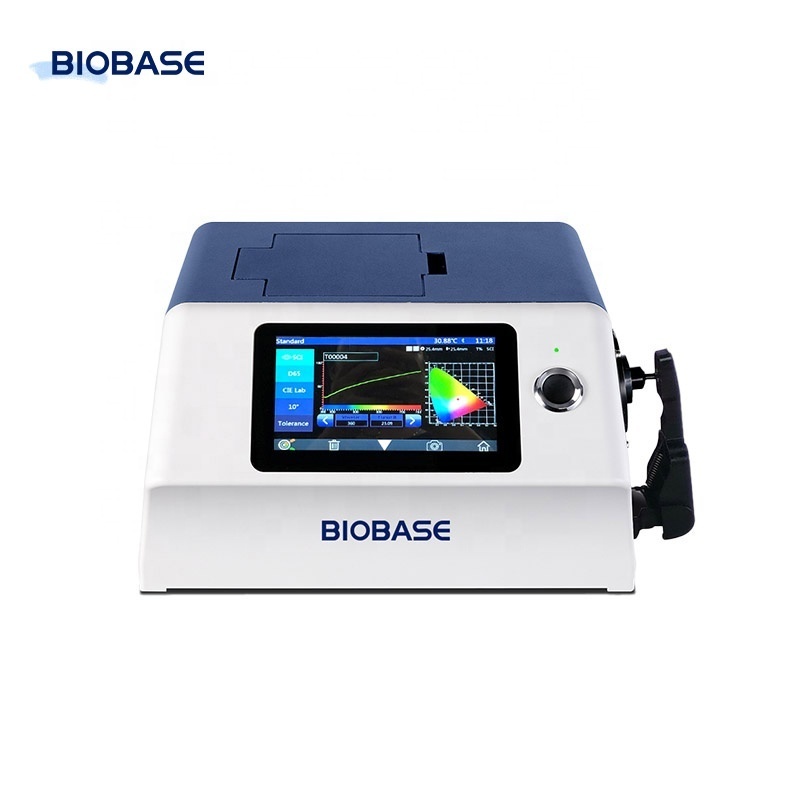

Benchtop Grating Spectrophotometer BK-GS6060
Features：
BK-GS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.
Technical Parameter
|
Model
|
BK-GS6060
|
|
Optical Geometry
|
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ; SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
|
Application
|
It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and
dyeing, printing etc industries for color transfer and quality control. |
|
Integrating Sphere Size
|
Φ154mm
|
|
Light Source
|
360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nm Cut-off light source, UV Lamp
|
|
Spectrophotometric Mode
|
Concave Grating
|
|
Sensor
|
256 Image Element Double Array CMOS Image Sensor
|
|
Wavelength Range
|
360-780nm
|
|
Wavelength Interval
|
10nm
|
|
Semi-band Width
|
10nm
|
|
Measured Reflectance Range
|
0-200%
|
|
Measuring Aperture
|
Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive: Φ30mm/Φ25.4mm; |
|
Specular Component
|
Reflectance: SCI&SCE / Transmittance: SCI&SCE
|
|
Color Space
|
CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN
|
|
Color Difference Formula
|
ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1) , ΔE * 00 , DINΔE 99 ,ΔE (Hunter),
|
|
Other Colorimetric Index
|
WI (ASTM E313, CIE/ISO, AATCC, Hunter,
YI (ASTM D1925, ASTM 313),TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-Co Index, 555 Index |
|
Observer Angle
|
2°/10°
|
|
Illuminant
|
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
|
|
Displayed Data
|
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
|
|
Measuring Time
|
About 2.4s (Measure SCI & SCE about 5s)
|
|
Repeatability
|
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
Inter-instrument Error
|
Φ25.4mm/SCI, Within ΔE*ab 0.12 (Average for 12 BCRA Series II color tiles)
|
|
Illuminant Life Span
|
5 years, more than 3 million times measurements
|
|
Display
|
7-inch TFT color LCD, Capacitive Touch Screen
|
|
Data Port
|
USB & Bluetooth
|
|
Data Storage
|
Standard 5000 Pcs, Sample 40000 Pcs (One PCS can include both SCI and SCE)
|
|
Language
|
Chinese, English
|
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
|
Storage Environment
|
-20~50℃, 0~85%RH (no condensing)
|
|
Standard Accessory
|
White and Black Calibration Board, Checking Green Board, Sample Holder,∮4mm, ∮8mm, ∮15mm, ∮25.4mm Aperture, Power Adapter, USB
Cable, User Guide, PC Software |
|
Optional Accessory
|
Micro printer, Transmissive Test Clamp Component
|
|
Power Supply
|
DC 24V, 3A; Power adapter: 110~230V 50/60HZ
|
|
External Size(L*W*H)
|
370*300*200mm
|
|
Weight
|
9.6kg
|
|
Package Size (W* D*H)
|
350*470*520mm
|
|
Gross Weight
|
18kg
|
