- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TDER
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
4255*2245*2850mm
-
Weight (KG):
-
14500 kg
-
Product Name:
-

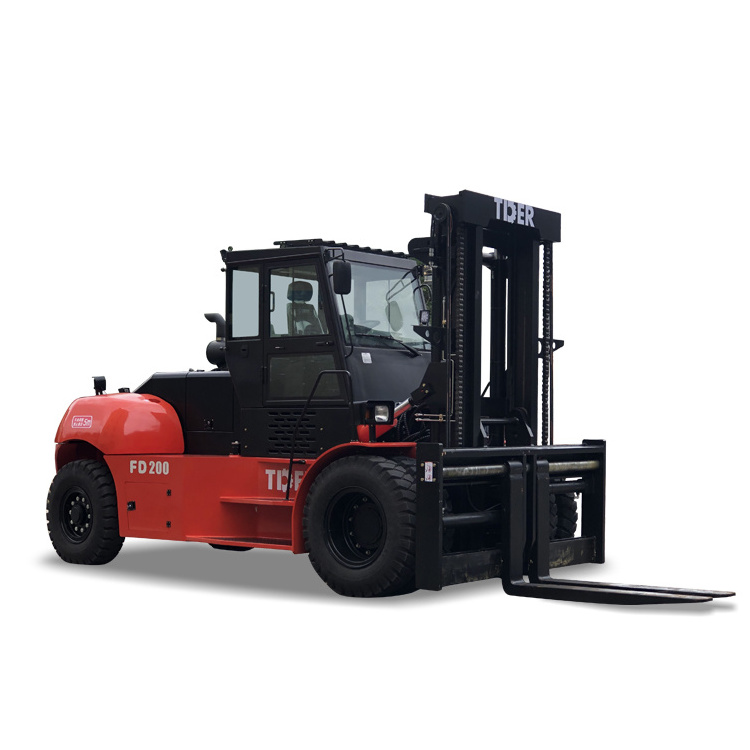

Big forklift diesel 10 ton diesel forklifts
-
Brand:
-
TDER
-
Engine:
-
ISUZU
-
Tire:
-
Solid/Pneumatic
-
Load center:
-
600mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Load capacity:
-
12000kg
-
Wheelbase:
-
2800mm
-
Attachments:
-
Paper Roll Clamp
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TDER
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
4255*2245*2850mm
-
Weight (KG):
-
14500 kg
-
Product Name:
-
Big forklift diesel 10 ton diesel forklifts
-
Brand:
-
TDER
-
Engine:
-
ISUZU
-
Tire:
-
Solid/Pneumatic
-
Load center:
-
600mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Load capacity:
-
12000kg
-
Wheelbase:
-
2800mm
-
Attachments:
-
Paper Roll Clamp
-
Marketing Type:
-
Ordinary Product
|
Model
|
|
FD180
|
FD200
|
FD250
|
FD300
|
FD320
|
|
|
Load Centre
|
|
900mm
|
900mm
|
1220mm
|
1220mm
|
1220mm
|
|
|
Load capacity
|
|
18000kg
|
20000kg
|
25000kg
|
30000kg
|
32000kg
|
|
|
Mast
|
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
|
|
Fork size
|
|
1800x240x90
|
2200x220x100
|
2400x300x100
|
2400x320x110
|
2400x320x120
|
|
|
Engine
|
|
YUCHAI
|
WEICHAI
|
WEICHAI
|
WEICHAI
|
WEICHAI
|
|
|
Tire
|
Front
|
12.00-24PR
|
14.00-24-18PR
|
14.00-24PR
|
14.00-24PR
|
16.00-25PR
|
|
|
|
Rear
|
12.00-24PR
|
14.00-24-18PR
|
14.00-24PR
|
14.00-24PR
|
16.00-25PR
|
|
|
Length to face of fork
|
|
5760mm
|
6030mm
|
6550mm
|
6550mm
|
7060mm
|
|
|
Overall Width
|
|
2750mm
|
2930mm
|
3060mm
|
3060mm
|
3360mm
|
|
|
Overhead Guard Height
|
|
3240mm
|
3400mm
|
3440mm
|
3440mm
|
3460mm
|
|
Features
1.Half shaft sealing technology on drive axle end improves sealing reliability and reduces after-sale service cost.
2.Clearance buffering structure on lifting cylinder bottom makes goods lowering stable and improves working safety.
3.Steering axle with big steering angle is dust proof and water proof, reliable and has long maintenance interval.
4.Integrated modularized electric box with up to IP56 protection degree is safe, reliable and easy to be maintenance.
5.Innovative designed “dual-lip elastic sealing gasket” solve oil tank cover leakage and impregnate completely.
6.Engine electric control technology protects engine from multi-aspects and ensures engine safety working.
7.Safety mechanisms such as fuel adding cover with lock and self-lock type engine hood gas spring improve truck safety.
8.Multi-protection systems on LPG truck improve truck safety.
