Quick Details
-
Material:
-
Metal Housing
-
Compression Format:
-
H.265/H264
-
Video input:
-
16 channel with 8 of POE Ports
-
Max Resolution:
-
4K 8MP
-
Smart Function:
-
Human/Vehicle /Crossline
-
SATA:
-
1HDD, Max 8TB Each
-
Audio I/O:
-
16(IPC in):1(RCA)
-
Phone APP:
-
Guard Viewer
-
PC Software:
-
Guard Station
-
Power Supply:
-
DC48V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G.Craftsman
-
Model Number:
-

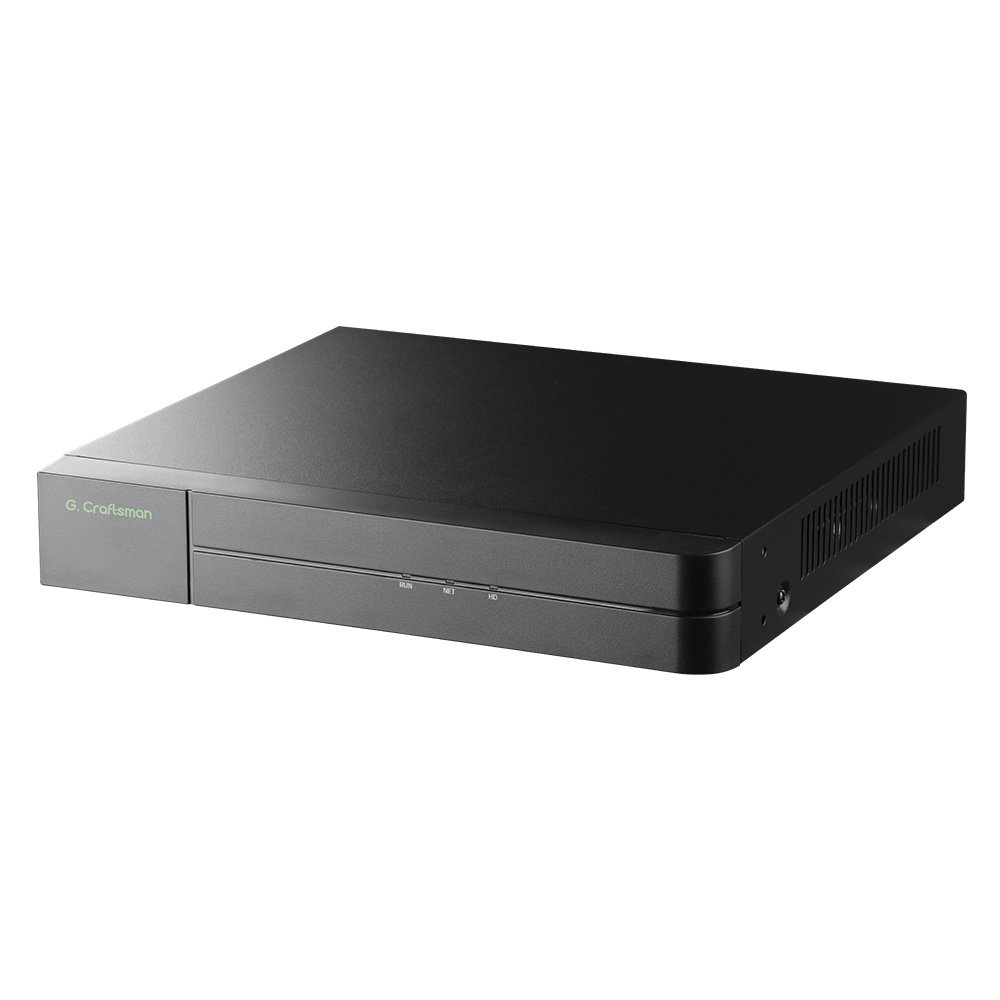

GU-N8016H1S-P8 POE NVR
-
Material:
-
Metal Housing
-
Compression Format:
-
H.265/H264
-
Video input:
-
16 channel with 8 of POE Ports
-
Max Resolution:
-
4K 8MP
-
Smart Function:
-
Human/Vehicle /Crossline
-
SATA:
-
1HDD, Max 8TB Each
-
Audio I/O:
-
16(IPC in):1(RCA)
-
Phone APP:
-
Guard Viewer
-
PC Software:
-
Guard Station
-
Power Supply:
-
DC48V
Product Description
AI VCA Management
GCraftsman 4K Smart H.265 NVR supports alarm configurations and event search of Smart VCA. Once suspicious events detected, the devices can trigger alarms and recordings, help you improve video surveillance efficiency.
Intelligent Search & Playback
G.Craftsman NVR supports the intelligent search and playback by AI analysis results such as humanoid and vehicle, which greatly enhances the monitoring efficiency.
Smart Alerts & Message Push
Powered by smart VCA technology, Gcraftsman camera can detect moving people and vehicles (cross lines and Incursion is based on UNV Camera) . Get email alerts and phoneAPP push when suspicious person or car is loitering around your house or store. Protect your property from potential threat.
Smart H.265 Compression
Smart H.265, The advanced video codec,save 70%~80% bandwidth compared with H.264. Especially Gcraftsman smart NVR working with smart IPC is able to display the best image quality in a lower bit rate.
Multi-Languages Menu
Multiple Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German etc, it is easy for global users.Besides, we can also custmoize language at customer’s requirement.
View Management System
GCraftsman VMS software( Guard Station) installed on PC can preview and control IP cameras by Local or Remote Access(Could Device). It supports Centralized management, Batch modification and upgrade, Local/Cloud playback etc.
Plug and Play
GCraftsman 4K H.265 PoE NVR Series offer a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
Better in Details
High-end Materials
Except for the galavanized steel casing, Gcraftsman selects superior quality chip, and SMT produce an Integral motherboard with POE module. High-end materials and scientific design ensure our NVRs are more stable and durable than our competitiors.
Thermal Design
The built-in radiation fin of PCB dissipates the heat effectively. Meanwhile, the ventilation holes on the side and bottom panels of NVR maximize airflow and carry heat away, ensuring the heat to transfer under a variety of different load conditions.
Packing & Delivery
Quality NVR and all of the accessories are well-packed with protective mat in the box. G.Craftsman uses h
ard & thick cartons with cornor pads to protect the cameras, especially the
vibration test before shipment can ensure the goods arrive there in good condition.
Product Parameters
|
NVR System
|
|
|
|
|
||||
|
Type
|
16CH NVR with 8 POE Ports
|
|
|
|
||||
|
Compression Method
|
H.265/ H.264
|
|
|
|
||||
|
Operating System
|
Embedded LINUX
|
|
|
|
||||
|
HDD
|
1SATA, MAX 6TB Each
|
|
|
|
||||
|
Network Protocol
|
RTSP、ACP、ONVIF、P2P、UPnP、NTP、DHCP、PPPoE
|
|
|
|
||||
|
Intelligent Function
|
Working with Same Series IPC: Human Detection Recording,Vehicle Detection etc
|
|
|
|
||||
|
Incoming bandwidth
|
64Mbps
|
|
|
|
||||
|
Display & Recording
|
|
|
|
|
||||
|
Video Preview
|
16CH*8MP@30fps and below
|
|
|
|
||||
|
Preview Split
|
1/4/8/16 Screen
|
|
|
|
||||
|
Corridor Mode
|
3/4/5/7/9/10/12/16
|
|
|
|
||||
|
Recording Mode
|
Manual/fixed time/alarm recording
|
|
|
|
||||
|
Playback
|
1 x 4K@30, 1 x 5MP@25,2 x 4MP@25,4x 2MP@30
|
|
|
|
||||
|
Video | Alarm | Audio
|
|
|
|
|
||||
|
Video Input
|
16ch Max 8MP Cameras
|
|
|
|
||||
|
Video Output
|
1x HDMI(3840x2160),1x VGA(1920x1080)
|
|
|
|
||||
|
Audio IN/OUT
|
16（IPC IN）:1 (RCA)
|
|
|
|
||||
|
Alarm IN/OUT
|
N/A
|
|
|
|
||||
|
Motion Detection
|
Yes
|
|
|
|
||||
|
Trigger Events
|
Recording, Email, Screen Tips, Buzzer, App push
|
|
|
|
||||
|
External Ports
|
|
|
|
|
||||
|
Network Port
|
1 pcs RJ45 100M/1000M Ports
|
|
|
|
||||
|
POE Port
|
8CH, 10/100Mbps, IEEE802.3af/at,108W
|
|
|
|
||||
|
Others
|
USB x2, HDMI, VGA, Audio Out
|
|
|
|
||||
|
General
|
|
|
|
|
||||
|
Power
|
DC48V ~52V
|
|
|
|
||||
|
Power Consumption
|
≤8W（without HDD）
|
|
|
|
||||
|
Working Temperature
|
-10°C ~ 55°C/10﹪-90﹪
|
|
|
|
||||
