Quick Details
-
Model Number:
-
12V 100AH
-
Place of Origin:
-
Guangdong, China
-
Electric Energy:
-
1280 Wh
-
Product name:
-

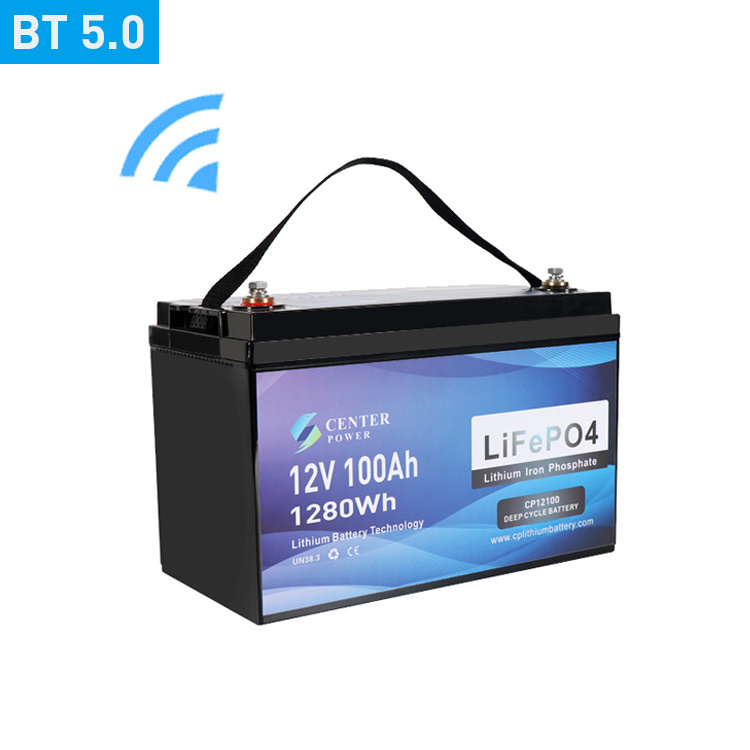

Marine Lithium Ion Batteries 12V 100ah LiFePO4 Battery
-
Feature:
-
Bolt in structure with single cell protection
-
Certification:
-
CE/UN38.3/MSDS
-
Size:
-
12.875" *6.62" *8.39"
-
Cycle life:
-
>4000 cycles
-
OEM/ODM:
-
Avaiable
-
Battery cell:
-
Safest Steel cyclindrical LiFePO4 Cell
-
Warranty:
-
3years
-
Battery Type:
-
LiFePO4
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, BOATS, Golf Carts, RV
-
Brand Name:
-
Center power
-
Model Number:
-
12V 100AH
-
Place of Origin:
-
Guangdong, China
-
Electric Energy:
-
1280 Wh
-
Product name:
-
Marine Lithium Ion Batteries 12V 100ah LiFePO4 Battery
-
Feature:
-
Bolt in structure with single cell protection
-
Certification:
-
CE/UN38.3/MSDS
-
Size:
-
12.875" *6.62" *8.39"
-
Cycle life:
-
>4000 cycles
-
OEM/ODM:
-
Avaiable
-
Battery cell:
-
Safest Steel cyclindrical LiFePO4 Cell
-
Warranty:
-
3years
-
Battery Type:
-
LiFePO4
Product Parameters
|
Model
|
CP12100
|
CP12120
|
CP12200
|
CP36100
|
|
Nominal Voltage(V)
|
12.8V
|
12.8V
|
12.8V
|
38.4V
|
|
Nominal Capacity(Ah)
|
100
|
120
|
200
|
100
|
|
Energy Capacity(Wh)
|
1280
|
1536
|
2560
|
3840
|
|
Dimension(mm)
|
328*171*215
|
328*171*215
|
525*240*220
|
525*270*220
|
|
Dimension(inch)
|
12.87''*6.62"*9.06"
|
12.87''*6.62"*9.06"
|
20.67"*9.45"*8.67"
|
20.67"*10.63"*8.67"
|
|
Weight(Kg)
|
13.5
|
14.5
|
27.6
|
37.6
|
|
Weight(lb)
|
29.76
|
31.96
|
60.84
|
82.89
|
|
Cycle Life
|
>6000 cycles when 0.1C discharge rate and 50% DOD
|
>6000 cycles when 0.1C discharge rate and 50% DOD
|
>6000 cycles when 0.1C discharge rate and 50% DOD
|
>6000 cycles when 0.1C discharge rate and 50% DOD
|
|
Working Temp.℃
|
-20-65
|
-20-65
|
-20-65
|
-20-65
|
|
Charge Voltage(V)
|
14.6
|
14.6
|
14.6
|
43.8
|
|
Cut-off Voltage(V)
|
10
|
10
|
10
|
30
|
|
Charge Current (A)
|
100
|
100
|
100
|
100
|
|
Discharge Current(A)
|
100
|
100
|
100
|
100
|
|
Peak Current(A)
|
200
|
200
|
200
|
200
|
|
Series or Parallel
|
Yes
|
Yes
|
Yes
|
Yes
|
Products Advantages
With Professional user manual; plug and play, easy to ooperation.
Battery Module Details
Charge and Discharge Curve
Receiving good comments all the time !
Application
Related Hot Products
Why Choose Us
Center Power
Is
Professional
LiFePO4 Battery manufactuer with
more than 10 years experience
. Technical Team from CATLBYD,OptimumNano and other
China Top 5
Lithium battery companies. We Exported product to Europe, North American, Australia, Kenya, Thailand, Korea and up to more than 100 international countries.About Battery solution,not only have
standard solution,
but also have
customized solutions
.
FAQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
A1: Over 10 Years production experience with this model battery; Battery made of UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
Q4. Can do the LCD with Battery?
A4: Yes, also we can do BT 5.0 Monitoring, can check the battery status by phone
Q5.Can it in Series and Parallel?
A5: Yes
Q6:Can you make battery with Prismatic Cell?
A6: Yes, Sure.
