Quick Details
-
Weight:
-
490 kg
-
Certificate:
-
CE, ISO9001:2008
-
Style:
-
Wheel adsorption
-
Desiccant Rotor:
-
Sweden Proflute
-
Rated Air Flow:
-
13800m³ /h
-
Desiccant Material:
-
Silica Gel Wheel
-
Supply Dry Air:
-
T=34℃ RH=5%
-
Usage:
-
Air humidity control
-
Installed Power:
-
107.7kw
-
Features:
-
Economical, energy-saving
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GALF
-
Voltage:
-
380V, 380V, 3 phase, 50Hz or customized
-
Weight:
-
490 kg
-
Certificate:
-
CE, ISO9001:2008
-
Style:
-
Wheel adsorption
-
Desiccant Rotor:
-
Sweden Proflute
-
Rated Air Flow:
-
13800m³ /h
-
Desiccant Material:
-
Silica Gel Wheel
-
Supply Dry Air:
-
T=34℃ RH=5%
-
Usage:
-
Air humidity control
-
Installed Power:
-
107.7kw
-
Features:
-
Economical, energy-saving
Recommend Products
Product Description
General Description:

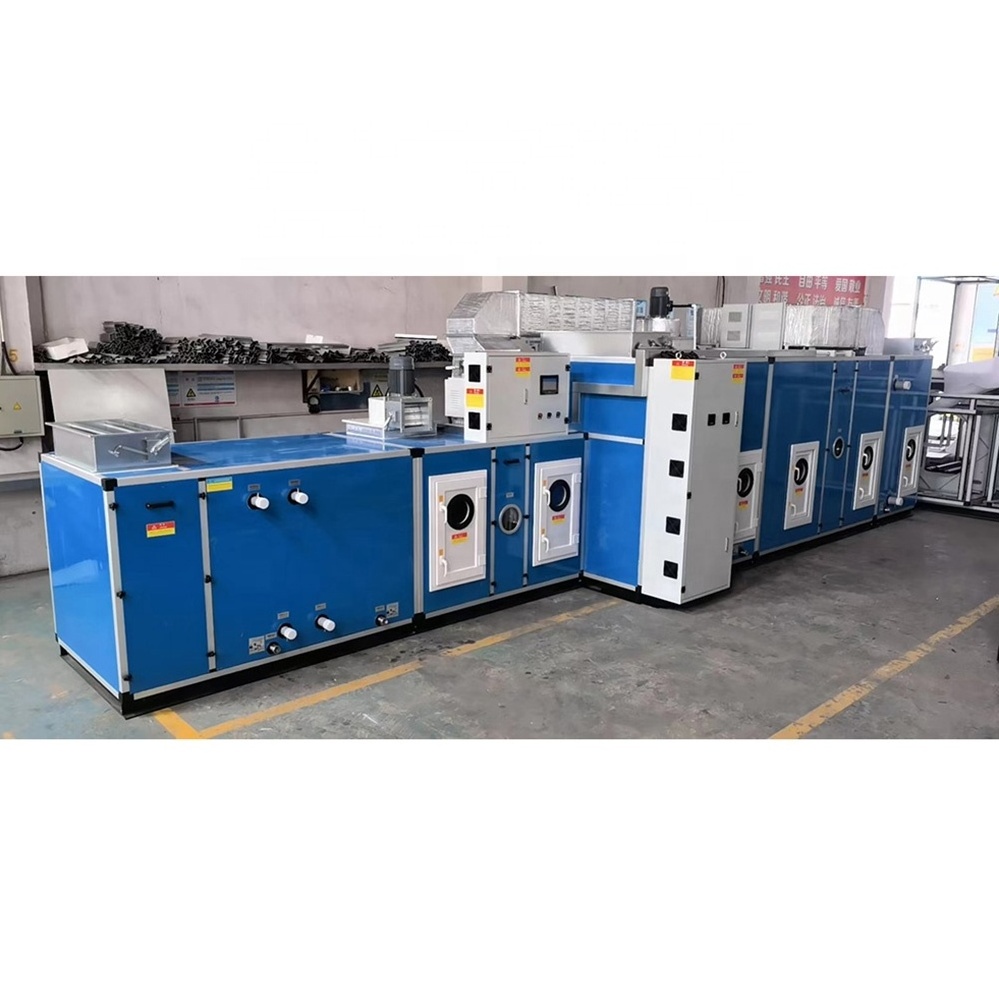

GKZHS Series Combined Industrial Desiccant Rotor Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the
cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the
cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
Applications:
* War Industry, Scientific Research, Electric Power Transportation
* Lithium Battery Industry, Biotechnology Pharmaceutical Industry
* Chemical, Daily Chemical Industry, Food Beverage Industry
* Safety Glazing Material Industry, Tyre and Rubber Industry
* Medical Instrument, Vegetables Frozen, Precise Instrument
* Wood Goods, Shipbuilding Painting Industry, Kinds of Storage
Competitive Advantage:
* Sweden Proflute silicon gel wheel
* A totally self contained unit
* PLC automatic control system, human-machine interface
* Aluminum alloy frame, anti-cold bridge
* Body modularization design, foam injected double wall casing
* Stainless steel drain pan and bottom boards
* Process and reactivation air flow sectors are insulated
* Electric or steam heating or convert type can be available
* All operation parameters can be on-line observed, ensuring operation reliability
* High temperature safety thermostat cutout
* Electrical interlocking of fan motors, heaters and rotor driving
* Sweden Proflute silicon gel wheel
* A totally self contained unit
* PLC automatic control system, human-machine interface
* Aluminum alloy frame, anti-cold bridge
* Body modularization design, foam injected double wall casing
* Stainless steel drain pan and bottom boards
* Process and reactivation air flow sectors are insulated
* Electric or steam heating or convert type can be available
* All operation parameters can be on-line observed, ensuring operation reliability
* High temperature safety thermostat cutout
* Electrical interlocking of fan motors, heaters and rotor driving
