Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RSBM, RSBM mud bucket
-
Model Number:
-
/
-
Condition:
-
New
-
Weight:
-
300
-
Max Jaw Opening:
-
/
-
Height:
-
/
-
Width:
-
/, 500mm-3500mm
-
Marketing Type:
-
New Product 2023
-
Key Word:
-
ditch bucket
-
Material:
-
Q345B Q460 NM360/400
-
Certification:
-
CE ISO
-
HS CODE:
-
84314100
-
Type:
-
ditch buckets
-
Color:
-
Customized
Quick Details
-
Suitable Excavator(ton):
-
1-50ton excavator
-
Bucket capacity:
-
Other
-
Bucket type:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RSBM, RSBM mud bucket
-
Model Number:
-
/
-
Condition:
-
New
-
Weight:
-
300
-
Max Jaw Opening:
-
/
-
Height:
-
/
-
Width:
-
/, 500mm-3500mm
-
Marketing Type:
-
New Product 2023
-
Key Word:
-
ditch bucket
-
Material:
-
Q345B Q460 NM360/400
-
Certification:
-
CE ISO
-
HS CODE:
-
84314100
-
Type:
-
ditch buckets
-
Color:
-
Customized
Products Details

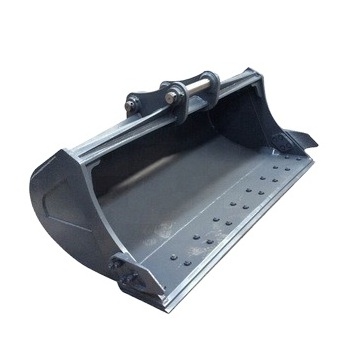

RSBM mini digger attachments ditch bucket for excavator
Ransun Ditching/Mud Bucket is ideal for cleaning out ditches, drainage canals, mucking ponds and lakes and other roadside maintenance. It is typically installed on both tracked and wheeled excavators with either standard length or long-reach sticks. No teeth are installed to allow the bucket to leave a smooth surface.
This bucket can also be supplied with an additional bolted reversible under-blade, to prevent the wear on the welded blade which is part of the structure
|
Mud Bucket
|
|
|
|
|
||||
|
Model
|
Carrier Size
|
Width(mm)
|
Capacity(m3)
|
Weight(kgs)
|
||||
|
RSMB-05
|
1-4t
|
1000
|
0.1
|
72
|
||||
|
|
2-6t
|
1000
|
0.2
|
125
|
||||
|
|
|
1200
|
0.24
|
172
|
||||
|
|
|
1500
|
0.3
|
263
|
||||
|
RSMB-20
|
7-11t
|
1500
|
0.45
|
360
|
||||
|
|
|
1750
|
0.6
|
410
|
||||
|
RSMB-30
|
12-15t
|
1800
|
0.8
|
539
|
||||
|
RSMB-40
|
16-19t
|
2000
|
1
|
610
|
||||
|
RSMB-50
|
20-26t
|
2000
|
1.2
|
1065
|
||||
|
RSMB-60
|
27-40t
|
2400
|
1.6
|
1400
|
||||
|
CONTACT US
for more details now
|
|
|
|
|
||||
|
RSBM REGULAR BUCKETS
|
|
|
|
|
||||
|
Item
|
Material
|
Parts
|
Configuration &Capability
|
Fit Models
|
||||
|
|
Teeth,
Side cutter |
Standard plate thickness like the original factory, domestic high quality tooth plate.
|
5-30T excavator:
CAT307 312 320 ,R55 R210 PC200 PC220 EX120 EX200 EC160
|
|||||
|
Q460
|
Adapter,
Teeth,
Side cutter,
protector
|
|
CAT 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc
|
|||||
|
|
Q345B
|
Adapter,
Teeth,
Side cutter,
protector
|
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending
|
|
||||
|
NM500
Q345B
|
Adapter,
Teeth,
Side cutter,
protector, wearing block
|
Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently.
|
CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250 ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 etc
|
|||||
|
NM400
NM400
Q345B
|
Adapter,
Teeth,
Side cutter,
protector, wearing block
|
Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.
|
|
|||||
