- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
AC110-200V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
4600*4800*1600mm
-
Weight:
-
1000 KG
-
Warranty of core components:
-
1~2 Year
-
Model:
-
YB-YX4
-
Filling head number:
-
4
-
Adding plug/dropper head:
-
2
-
Capping head number:
-
2
-
Filling volume:
-
2-100ml
-
Capacity:
-
10-70 bottles/min
-
Power supply:
-
1Ph.220V,50/60Hz
-
Total power:
-
3.0KW
-
Net weight:
-
About 1000kg
-
Overall dimension:
-
4600*4800*1600mm
Quick Details
-
Machinery Capacity:
-
10-70 bottles/min
-
Packaging Material:
-
Plastic, Paper, Glass, Wood
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
AC110-200V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
4600*4800*1600mm
-
Weight:
-
1000 KG
-
Warranty of core components:
-
1~2 Year
-
Model:
-
YB-YX4
-
Filling head number:
-
4
-
Adding plug/dropper head:
-
2
-
Capping head number:
-
2
-
Filling volume:
-
2-100ml
-
Capacity:
-
10-70 bottles/min
-
Power supply:
-
1Ph.220V,50/60Hz
-
Total power:
-
3.0KW
-
Net weight:
-
About 1000kg
-
Overall dimension:
-
4600*4800*1600mm

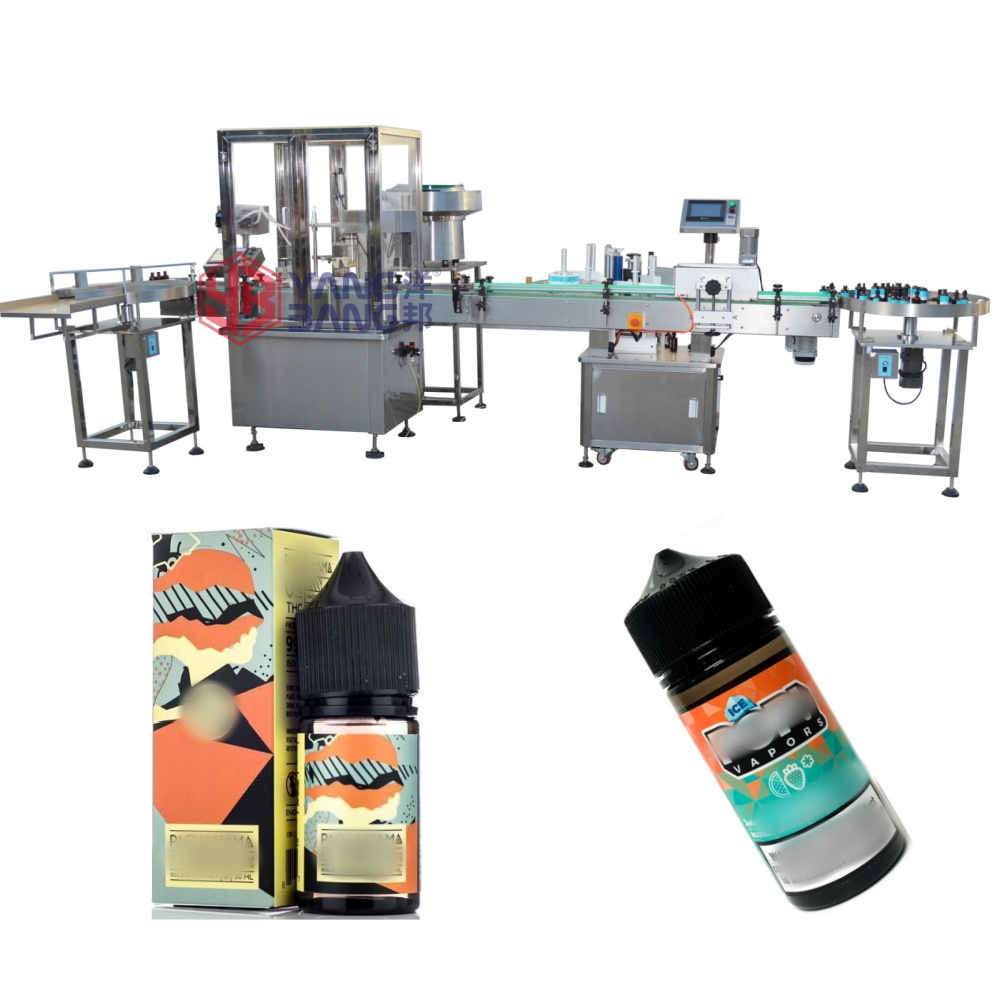

YB-YX4 5-30ml Bottle Filling Machine For Dropper Chubby Gorilla Eyedrop Bottle Filling Capping Line
Technical parameter
|
Model
|
YB-YX2
|
YB-YX4
|
|
Filling head number
|
2
|
4
|
|
Adding plug/dropper head
|
1
|
2
|
|
Capping head number
|
1
|
2
|
|
Filling volume
|
2-100ml
|
2-100ml
|
|
Capacity
|
5-35 bottles/min
|
10-70 bottles/min
|
|
Filling accuracy
|
≥99%
|
≥99%
|
|
Pass rate
|
≥98%
|
≥98%
|
|
Power supply
|
1Ph.220V/3Ph.380v,50/60Hz
|
1Ph.220V/3Ph.380v,50/60Hz
|
|
Total power
|
2.8KW
|
3.0KW
|
|
Net weight
|
About 850kg
|
About 1000kg
|
|
Overall dimension
|
L6500 x W1800 x H1600mm
|
L4600 x W4800 x H1600mm
|
Usages and Features
Usages:
This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and
other products fully automatic filling production.
other products fully automatic filling production.
Featurs:
1.PLC control system,color touch screen display.
2.This machine has function of no bottle no filling and no adding pump.
3. Servo motor control piston pump, pneumatic adding spray pump cap, lifting screw capping. Has advantages of accurate
filling,smooth capping and simple operation
4.Cap positioning device,makes sure plastic pipe which is longer or curved could go to bottleneck accurately.
5.Filling nozzles dive into bottle to fill and rise slowly to prevent foaming.Catch type flexible screw lid,adjustable tightness
6.Machine body is made by high quality stainless steel and machine meets GMP standard.
2.This machine has function of no bottle no filling and no adding pump.
3. Servo motor control piston pump, pneumatic adding spray pump cap, lifting screw capping. Has advantages of accurate
filling,smooth capping and simple operation
4.Cap positioning device,makes sure plastic pipe which is longer or curved could go to bottleneck accurately.
5.Filling nozzles dive into bottle to fill and rise slowly to prevent foaming.Catch type flexible screw lid,adjustable tightness
6.Machine body is made by high quality stainless steel and machine meets GMP standard.
