Quick Details
-
Model Number:
-
N6
-
Product name:
-
South N6 Total Station
-
Application:
-
Surveying
-
Type:
-
Reflective
-
Single Prism:
-
5000m
-
Reflectorless:
-
600m
-
Accuracy:
-
2''
-
Magnification:
-
30x
-
EDM System:
-
Laser Class 3R
-
Image:
-
Erect
-
Measuring Time Reflector:
-
Fine<0.3s, Tracking<0.1s
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South
-
Model Number:
-
N6
-
Product name:
-
South N6 Total Station
-
Application:
-
Surveying
-
Type:
-
Reflective
-
Single Prism:
-
5000m
-
Reflectorless:
-
600m
-
Accuracy:
-
2''
-
Magnification:
-
30x
-
EDM System:
-
Laser Class 3R
-
Image:
-
Erect
-
Measuring Time Reflector:
-
Fine<0.3s, Tracking<0.1s
Product Description
|

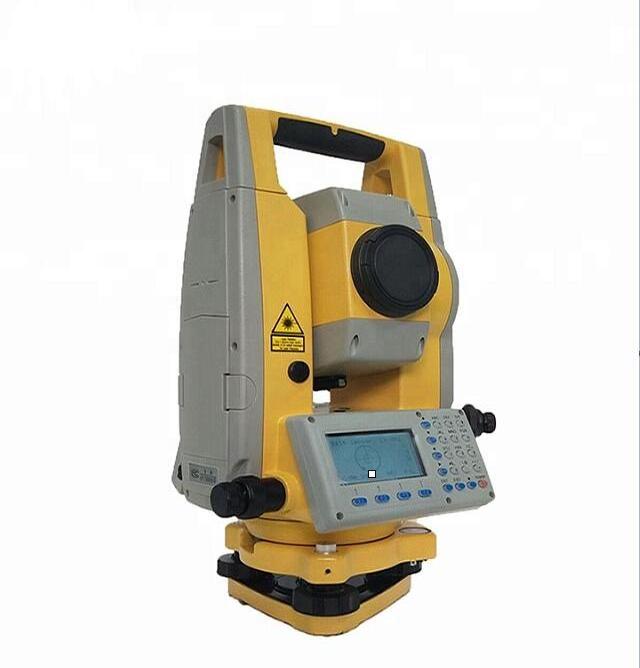

South Total Station N6
|
|
Distance Measurement
|
|
|
|
Max. Range Single Prism
|
5.0km
|
|
|
Reflectorless
|
600m
|
|
|
*Object in shade, or sky overcast
|
|
|
|
Accuracy Reflector Fine
|
±(2mm + 2X10-6 ・ D)
|
|
|
Accuracy Reflector Tracking
|
± (5mm 4-2X10-6 • D)
|
|
|
Accuracy Reflectlorless Fine
|
±(5mm + 2X10-6 • D)
|
|
|
Accuracy Reflectlorless Tracking
|
±(10mm-1-2X10-6 - D)
|
|
|
Reading
|
Max: 99999999.9999m Min:0.1mm
|
|
|
Measuring Time Reflector
|
Fine<0.3s, Tracking<0.1s
|
|
|
Measuring Time Reflectorless
|
0.3-3s
|
|
|
Atmosphere Correction
|
Manual Input, Au to correction
|
|
|
Atmosphere Refraction and Earth Curvature Correction
|
Manual Input, Au to correction
|
|
|
Prism Constant
|
Manual Input, Au to correction
|
|
|
Dist.Unit
|
Meter/ US.Feet/lnternational Feet/ Feet-inch optional
|
|
|
Angle Measurement
|
|
|
|
Measuring Method
|
Absolute Continuous
|
|
|
Dia of Encoder Disk
|
79mm
|
|
|
Minimum Reading
|
1” /5„
|
|
|
Accuracy
|
2” 5”
|
|
|
Detection Method
|
Horizontal: Dual, Vertical Dual
|
|
|
Telescope
|
|
|
|
|
Erect
|
|
|
Tube Length
|
154mm
|
|
|
Effective Apertu re
|
45mm (EDM:50MM)
|
|
|
Magnification
|
30X
|
|
|
Field of View
|
1° 30'
|
|
|
Minimum Focus Distance
|
lm
|
|
|
Resolving Power
|
3”
|
|
|
Reticle Illumination
|
Adjustable
|
|
|
Auto Compensator
|
|
|
|
System
|
Dual axis liquid-electric
|
|
|
Working Range
|
±3'
|
|
|
Accuracy
|
1''
|
|
|
Vial
|
|
|
|
Plate Vial
|
30"/2mm
|
|
|
Circular Vial
|
8'/2mm
|
|
|
Optical Plummet(optional)
|
|
|
|
|
Erect
|
|
|
Magnification
|
3X
|
|
|
Focusing Range
|
0.5m - oo
|
|
|
Field of View
|
5°
|
|
|
On-board Battery
|
|
|
|
Type
|
Rechargeable Lithium battery
|
|
|
Voltage
|
7.4V DC
|
|
|
Continuous Operation Time
|
8 hrs
|
|
|
Others
|
|
|
|
IP Standard
|
IP65
|
|
|
Keyboard
|
Alphanumeric 24 keys
|
|
|
Display
|
LCD 6 lines. Digital Screen
|
|
|
Data Communication
|
RS-232, USB, SD card
|
|
|
Temperature
|
from -20 to 50
|
|
|
Dimension and Weight
|
160X150 X330mm, 5.2kg
|
|
