Quick Details
-
Technology:
-
steam(electrical) heating, fiber filter, membrane permeation
-
Discharge Standard:
-
IMO MEPC.107(49)
-
MOQ:
-
1pcs
-
Electrical control box component brand:
-
Schneider
-
Certification:
-
CCS/EC/BV
-
Rating Capacity(m³/h):
-
0.25-5
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
2500 kg
-
Product name:
-
15ppm Bilge Separator
-
Technology:
-
steam(electrical) heating, fiber filter, membrane permeation
-
Discharge Standard:
-
IMO MEPC.107(49)
-
MOQ:
-
1pcs
-
Electrical control box component brand:
-
Schneider
-
Certification:
-
CCS/EC/BV
-
Rating Capacity(m³/h):
-
0.25-5
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Video technical support
Specification

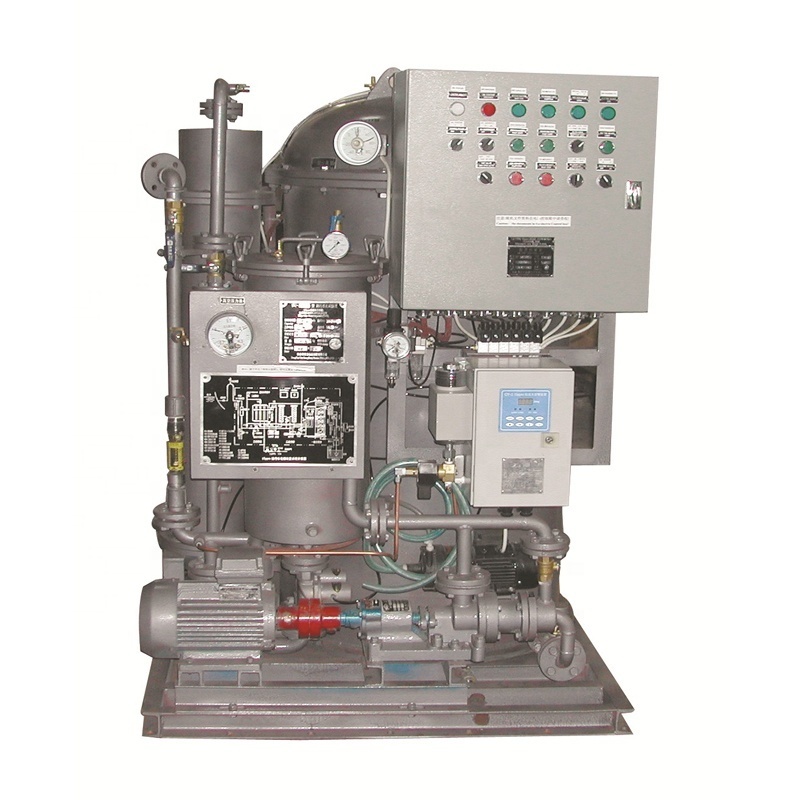

15ppm Bilge Separator
By GL-EC approved 15ppm bilge separator, the main parts adopt international famous brands, including
electrical control box components provided by Schneider, 15ppm bilge alarm provided by the German
DECKMA Ha, screw pump provided by the Mono Pump.
This separator can also be used in industrial and petroleum, besides in ship vessels.
The device adopts the combination of seam(elecrtical) heating: the 1st stage cone wave plate gravity and coalesce separation; the 1st and the 2nd stage fiber filter and the 3rd stage membrane permeation in order to make the treated bilge water to meet the requirements of discharge standard of the resolutions of IMO MEPC.107(49).
|
Type
|
YWC-0.25
|
YWC-0.50
|
YWC-1.00
|
YWC-1.50
|
YWC-2.00
|
YWC-2.50
|
YWC-3.00
|
YWC-4.00
|
YWC-5.00
|
|
Rating Capacity
(m³/h)
|
0.25
|
0.5
|
1
|
1.5
|
2
|
2.5
|
3
|
4
|
5
|
|
Power of Pump(kw)
|
0.37
|
0.55
|
0.75
|
1.1
|
1.1
|
1.5
|
1.5
|
2.2
|
2.2
|
|
Electric heater power(kw)
|
3
|
3
|
3
|
3
|
2x3
|
2x3
|
2x3
|
4x3
|
4x3
|
|
15ppm Bilge Alarm
|
Included
|
Included
|
Included
|
Included
|
Included
|
Included
|
Included
|
Included
|
Included
|
|
Base(channel steel)
|
#5
1000*600
|
#6
1100*690
|
#6
1050*1000
|
#6
1100*1130
|
#8
1900*1120
|
#8
1900*1120
|
#8
1750*1500
|
#10
2280*1700
|
#10
2280*1700
|
|
Height(mm)
|
1250
|
1460
|
1620
|
1660
|
1700
|
1900
|
2020
|
1950
|
2000
|
|
Dry/Wet weight(kg)
|
400/550
|
600/800
|
800/1200
|
1060/1810
|
1260/2260
|
1500/2800
|
1800/3200
|
2100/3900
|
2500/4600
|
|
Applicable ship vessel
|
<1000 DWT
|
1000-5000 DWT
|
5-10 KDWT
|
10-30 KDWT
|
30-50 KDWT
|
50-100 KDWT
|
100-200 KDWT
|
100-300 KDWT
|
300 KDWT above
|
