It is suitable for kinds of disposable cup such as Plastic cup, PET cup, pp CUP, paper cup, coffee cup, pulp cup, milk tea cup,salad cup, ice cream cup, paper bowls, salad bowls……and so on
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOYSTAR
-
Dimensions(L*W*H):
-
4000*1500*1800mm
-
Weight:
-
680 KG
-
Certification:
-
CE
-
Max. Print Area:
-
314*100mm
-
Type:
-
4 color coffee paper cup screen printing machine plastic milk tea cup
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOYSTAR
-
Dimensions(L*W*H):
-
4000*1500*1800mm
-
Weight:
-
680 KG
-
Certification:
-
CE
-
Max. Print Area:
-
314*100mm
-
Type:
-
4 color coffee paper cup screen printing machine plastic milk tea cup
Product Description

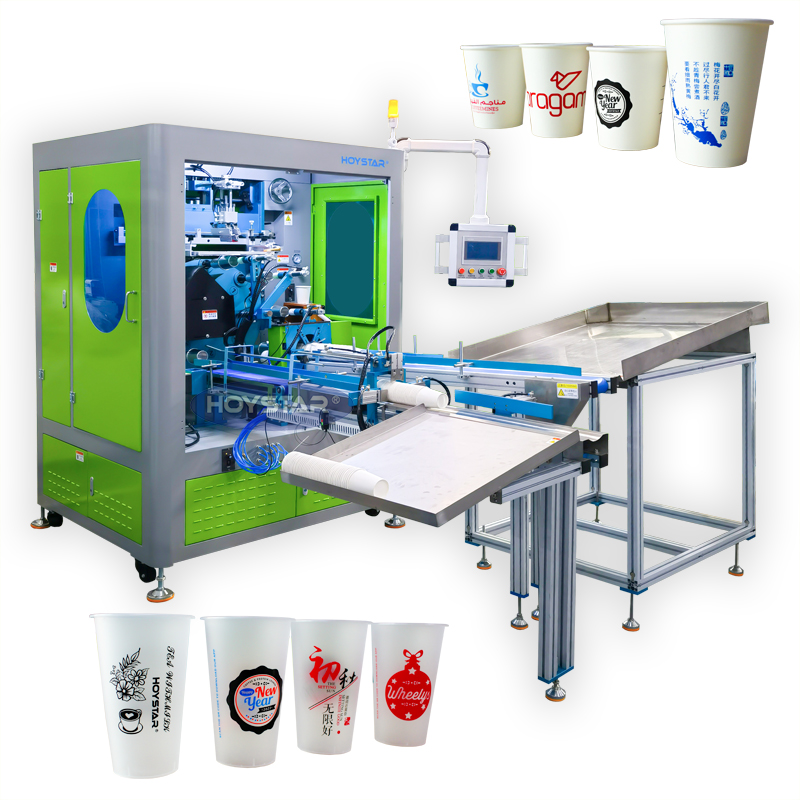

4 color coffee paper cup screen printing machine plastic milk tea cup printing machine for sale
What is this screen printing machine application for ?
Technical Parameter
|
Max.printing size
|
logo 314*100mm
|
|
Printing cup max.size
|
diameter 110mm* height 200mm
|
|
printing speed
|
300pcs per hour
|
|
screen frame size
|
450*120mm
|
|
Voltage
|
220V Single phase
|
|
Air pressure
|
6-8 Bar
|
|
Dimension
|
4000*1500*1800mm
|
|
Weight
|
680KG
|
Machine Size can be customized to bigger or depends on customer's special requirement
Details Images
Automatic feeding device, save labor and high speed
Automatic
corona treatment cup surface
Automatic printing head
Automatic color registration device
Automatic LED UV Curing
Automatic unloading device take off cup
Automatic stack and counting function
Features
1. Touch screen control panel & Japan Mitsubishi PLC program
2. Automatic feeding and automatic unloading device driving by electric motor
3. Automatic alignment system for multicolor printing
4. LED UV curing device automatic drying ink after printed
5. Worktable Turn 360 degrees driving by servo motor
6. Printing head driving left right by servo motor
7. with 2 sensor system, one for avoid logo print on paper cup's seam, one for printing if no cup, no printing
8. Corona system automatic treating products surface before printing so that ink will not fall off after printed
Printed Sample Show
Packing & Delivery
|
Package material
|
by wooden case
|
|
Leading time
|
please communication with supplier directly
|
|
Package dimension
|
1300*1400*2100mm gross weight 700KG 2000*1000*1000mm gross weight 180KG
|
|
Shipping way
|
by sea
|
