Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HJLab
-
Weight:
-
90 KG
-
Working Temperature Range:
-
20 - 300 ℃
-
Core Components:
-
Circulation Pump, Temperature Controller, Heating Element
-
Full-Closed-Loop:
-
Yes
-
Temperature Range:
-
RT to 300°C
-
Power Supply:
-
220V/380V
-
Heating Power:
-
2 ~ 30 KW
-
Circulation Pump:
-
Vortex/Magnetic Drive
-
Temperature Control:
-
PID
-
Temperature Sensor:
-
PT100
-
Safety:
-
Anti-Dry
-
Optional:
-
Customized Accept
Quick Details
-
Type:
-
Heating Circulator
-
Power Source:
-
Electric
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HJLab
-
Weight:
-
90 KG
-
Working Temperature Range:
-
20 - 300 ℃
-
Core Components:
-
Circulation Pump, Temperature Controller, Heating Element
-
Full-Closed-Loop:
-
Yes
-
Temperature Range:
-
RT to 300°C
-
Power Supply:
-
220V/380V
-
Heating Power:
-
2 ~ 30 KW
-
Circulation Pump:
-
Vortex/Magnetic Drive
-
Temperature Control:
-
PID
-
Temperature Sensor:
-
PT100
-
Safety:
-
Anti-Dry
-
Optional:
-
Customized Accept
Product Description

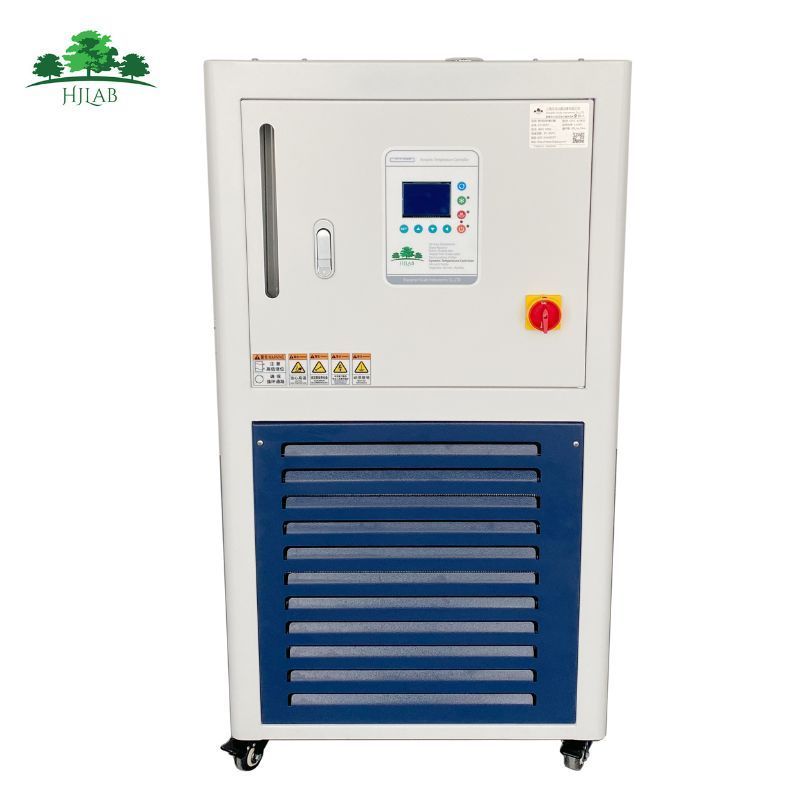

Full Closed Loop Heating Circulator
Full Closed Loop Heating Circulator Recirculating Circulation Heater with Thermostatic Constant Temperature Control
Detail Images
Heating Circulator (Open-Bath vs Full-Closed-Loop)
Non-Explosion-Proof
Heating Circulator with Open Bath
Explosion-Proof
Heating Circulator with Open Bath
Non-Explosion-Proof
Heating Circulator with Full-Closed-Loop
Explosion Proof
Heating Circulator with Full-Closed-Loop
Specification
|
Full-Closed-Loop
Heating Circulator
|
GY-C-2KW
|
GY-C-3KW
|
GY-C-4.5KW
|
GY-C-6.5KW
|
GY-C-9KW
|
||||
|
Full-Closed-Loop
|
Full-Closed-Loop under Normal Pressure | Pipeline Heating | No Oil-Mist
The Heat-Transfer-Fluid in Expansion Reservoir doesn’t participate in Circulation Loop
Reducing Risks of Heat-Transfer-Fluid Absorbing Water and Volatilization
Extending Heat-Transfer-Fluid Service Life | Reducing Heat-Transfer-Fluid Capacity Demand
|
|
|
|
|
||||
|
Temperature
Controlling
|
Heat-Transfer-Oil: RT ~ 200°C
|
|
|
|
|
||||
|
Power Supply
|
110V/220V
|
220V
|
|
380V
|
|
||||
|
Heating Power
|
2 KW
|
3 KW
|
4.5 KW
|
6.5 KW
|
9 KW
|
||||
|
Heating Element
|
Seamless SUS304 Stainless Steel
|
|
|
|
|
||||
|
Circulation Pump
|
Vortex Circulation Pump
|
|
|
|
|
||||
|
Pump Flow
|
20L/Min
|
|
30L/min
|
|
|
||||
|
Pump Lift
|
4 m
|
|
10 m
|
|
|
||||
|
Expansion Reservoir
|
Hygienic-Grade SUS304 Stainless Steel
|
|
|
|
|
||||
|
|
5L
|
10L
|
17L
|
25L
|
45L
|
||||
|
Temperature
Controller
|
PID Intelligent Control | PT100 Sensor | Temperature Accuracy +/- 1°C | LCD Display
|
|
|
|
|
||||
|
External
Circulation
Connection
|
G1/2
|
|
G3/4
|
|
|
||||
|
Safety
|
Anti-Dry | Over-Temperature Protection
|
|
|
|
|
||||
|
Casters
|
Lockable Casters
|
|
|
|
|
||||
|
Housing Materials
|
Cold-Plate Electrostatic Plastic-Sprayed
|
|
|
|
|
||||
|
Overall Dimension
(L*D*H cm)
|
38*50*83
|
55*67*105
|
57*45*72
|
58*72*112
|
72*60*88
|
||||
|
* Optional
|
1) High Temperature 300°C Heating Circulation | Customized Heating Power
2) Explosion Proof (All Electrical Parts)
3) Built-In Air-Cooling Unit (Quickly cool down the Heat-Transfer-Fluid to root temperature)
4) Circulation Pump Flow/Lift | ExternalCirculation Connection
|
|
|
|
|
||||
Heat-Transfer-Fluid Level
All-In-One Control Panel
Built-In Air Cooling Unit
Electrical Control Cabinet
Full-Closed-Heating-Loop
Explosion Proof Design
Customized Pump Flow/Lift
