Quick Details
-
Model Number:
-
HROA80*40*500
-
Brand Name:
-
HANLiDA
-
Bore Diameter:
-
80mm
-
Working Pressure:
-
16MPa
-
Oil Port:
-
BSP/NPT/ZG/M
-
Certificate:
-
ISO9001:2008 / CE
-
Seals kit:
-
Twiwan Mad , Hallite, NOK Parker,
-
Warranty:
-
One Year
-
Type:
-
Double Action
-
Mounting Type:
-
Flange
-
Application:
-
Agricultural, Engineering Machinery, Industry
-
Product name:
-
hydraulic cylinder 20 ton
Quick Details
-
Maximum Stroke:
-
500mm
-
Shaft Diameter:
-
40mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HROA80*40*500
-
Brand Name:
-
HANLiDA
-
Bore Diameter:
-
80mm
-
Working Pressure:
-
16MPa
-
Oil Port:
-
BSP/NPT/ZG/M
-
Certificate:
-
ISO9001:2008 / CE
-
Seals kit:
-
Twiwan Mad , Hallite, NOK Parker,
-
Warranty:
-
One Year
-
Type:
-
Double Action
-
Mounting Type:
-
Flange
-
Application:
-
Agricultural, Engineering Machinery, Industry
-
Product name:
-
hydraulic cylinder 20 ton
hydraulic cylinder 20 ton
| Bore Diameter | φ25-320mm(1" to 5") |
| Working Medium | Clean Standard Hydraulic Oil |
| Cylinder Tube Material | Steel C1045 |
| Operating Pressure Rang | 0.3-30MPa (45-4300PSI) |
| Temprature Rang | -10 to 60°C |
| Speed Rang | 0-300(mm/s) |
| Rod Diameter | φ12-200mm |
| Stroke | 0-4000mm |
| Oil Port | BSP/NPT/ZG/M/Customized |
| Mounting Type | Flange, Trunnion, Fixed Eye, Clevis, Welded Tube, Adjustable Nut and etc. |
DATA SHEET DOWNLOAD
Custom Hydraulic Cylinder Technical Parameters
| Bore Diameter | 25-320mm( 1"-5") |
| Rod Diameter | φ12-200mm |
| Working Pressure | 0.7-30MPa |
| Port Size | BSP/NPT/ZG/M/Customized |
| Seals | Taiwan Brand, Hallite, NOK |
| Custom Service | Special port arrangements, Integrated manifolds with valving |

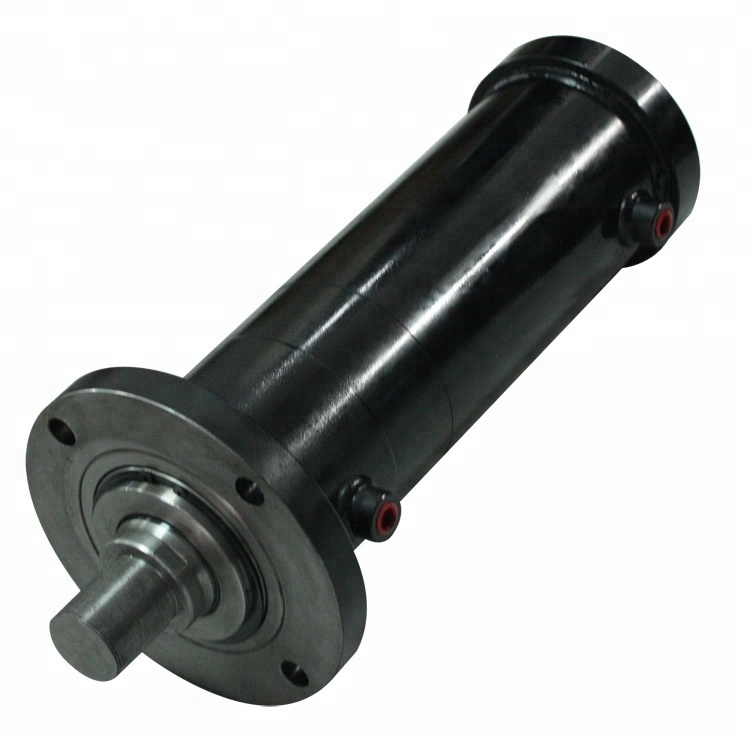

Product Photos
Customized Hydraulic cylinder Solutions.
All of the designs in the HANLiDA Hydraulics portfolio of
Tie Rod Hydraulic Cylinder
,
Welded Hydraulic Cylinder
,
Agricultural Tie Rod Hydraulic Cylinder
,
Agricultural Welded Clevis Hydraulic Cylinder
,
Agricultural Welded Tube Hydraulic Cylinder
,
Single Acting Hydraulic Cylinder
,
Telescopic Hydraulic Cylinder
are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the hydraulic Cylinders in our portfolio, enables OEMs to meet their
Custom Hydraulic cylinder
requirements while allowing for faster development times.
