Quick Details
-
Application:
-
drywall finishing tools, Construction Field
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Weight:
-
200 kg, 150 Kg
-
Product Name:
-
Portable Automatic Wall Plastering Machine
-
Usage:
-
Brick Wall
-
After-sales Service Provided:
-
Video Technical Support
-
Name:
-
Wall Cement Mortar Plastering Machine
-
Keyword:
-
Automatic Cement Plastering Wall Render Machine
-
Function:
-
Plastering Cement
-
Type:
-
High Speed Polisher
-
Power:
-
2.2kw
Quick Details
-
Max. vertical conveying distance:
-
10M
-
Max. horizontal conveying distance:
-
50M
-
Hopper Capacity:
-
100L
-
Application:
-
drywall finishing tools, Construction Field
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Weight:
-
200 kg, 150 Kg
-
Product Name:
-
Portable Automatic Wall Plastering Machine
-
Usage:
-
Brick Wall
-
After-sales Service Provided:
-
Video Technical Support
-
Name:
-
Wall Cement Mortar Plastering Machine
-
Keyword:
-
Automatic Cement Plastering Wall Render Machine
-
Function:
-
Plastering Cement
-
Type:
-
High Speed Polisher
-
Power:
-
2.2kw
Product Overview

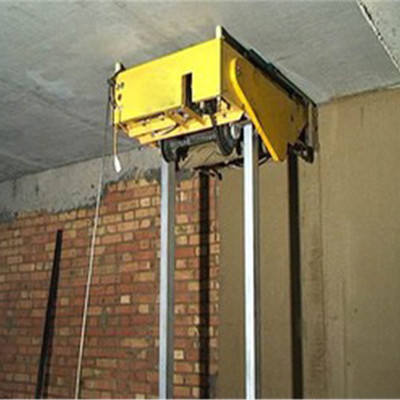

wall plastering machine
1. Adopted hydraulic roof to solve the problem of unstable positioning, and just 10 seconds or So can be vertical flat fixed.
2. Double branches and traditional dotting combined to solve slow the machine can not leveling of laser positioning
3. Conveyor belt forward and upward delivery combined with angle-changeable wiping board, completely wiped to the top, does not miss one milimeter.
4. Use vibrators to increase the wiping board to solve the hollowing and cracks of manual wiping, maximum plaster thickness up to 3cm, and minimal plaster thickness of 0.3 cm.
5. Equipped with angle-changeable wiping board to slow, difficult and large error problems down original road.
6. Pull rod more convenient for free docking with different height also to solve the problem that telescopic rod can not cross the construction hole. Just plug the pole then can be usedwithout assembly Unplug the pole and transport it without disassembly.
7. Conveyor belt can be single controlled which allowed to deliver cement over the construction surface.
8. Smallest side of the machine is only 60cm wide, 98 kg weight, so even the small bathroom can still use our wall rendering machine.
9. With limit clamp stucked at the same height as the beam to wipe below the beam. Similarly with both hands to hold down the wipes to change angle of the two stick to the bottomi adjusted more easily of the window you can wipe below window.
10, Wiping board designed wider than the machine so the wiping angle can be adjusted more easily.
2. Double branches and traditional dotting combined to solve slow the machine can not leveling of laser positioning
3. Conveyor belt forward and upward delivery combined with angle-changeable wiping board, completely wiped to the top, does not miss one milimeter.
4. Use vibrators to increase the wiping board to solve the hollowing and cracks of manual wiping, maximum plaster thickness up to 3cm, and minimal plaster thickness of 0.3 cm.
5. Equipped with angle-changeable wiping board to slow, difficult and large error problems down original road.
6. Pull rod more convenient for free docking with different height also to solve the problem that telescopic rod can not cross the construction hole. Just plug the pole then can be usedwithout assembly Unplug the pole and transport it without disassembly.
7. Conveyor belt can be single controlled which allowed to deliver cement over the construction surface.
8. Smallest side of the machine is only 60cm wide, 98 kg weight, so even the small bathroom can still use our wall rendering machine.
9. With limit clamp stucked at the same height as the beam to wipe below the beam. Similarly with both hands to hold down the wipes to change angle of the two stick to the bottomi adjusted more easily of the window you can wipe below window.
10, Wiping board designed wider than the machine so the wiping angle can be adjusted more easily.
PRODUCT SPECIFICATIONS
|
Product Name
|
2017 automatic wall cement plaster machine
|
|
Weight
|
≥110KG
|
|
Dimension
|
1100x650x3500mm
|
|
Power
|
380V/220V,50Kz-60Hz,1.1KW
|
|
Work efficiency
|
500-600 Sqm Per Day
|
|
Plastering Thickness
|
0.2cm--3.5cm
|
|
Plastering Width
|
1100mm
|
|
Plastering Height
|
5m
|
|
Length of Plastering Trowel
|
1200 mm
|
|
Portal Frame
|
Foldable
|
|
Position
|
Industry microcomputer automatic vertical system
|
|
Motor
|
Germany Stepping Motor
|
|
Plastering Plate
|
High Speed Steel
|
|
Electricity Phase
|
Single/Three Phase
|
|
Beam
|
Available
|
|
Package
|
Wooden Case Suitable for Long Way Transporation
|
PRODUCT CONFIGURATION
Thickened hopper
Pure copper motor
High pressure air pump
