Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leeder CNC
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Weight (KG):
-
800
-
Working area:
-
1200x1200x200mm
-
Product name:
-
cnc router 1212 CNC Router Machine cnc pcb
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
-
Spindle power:
-
2.2/3.5/4.5/5.5/6KW
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Spindle type:
-
Air / Water Cooling Spindle
-
Motor:
-
Stepper/Servo Motor
-
Inverter:
-
Fuling
-
Software:
-
Ucancam / ArtCam/TYPE3
Quick Details
-
Working Table Size(mm):
-
1200*1200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leeder CNC
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Weight (KG):
-
800
-
Working area:
-
1200x1200x200mm
-
Product name:
-
cnc router 1212 CNC Router Machine cnc pcb
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
-
Spindle power:
-
2.2/3.5/4.5/5.5/6KW
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Spindle type:
-
Air / Water Cooling Spindle
-
Motor:
-
Stepper/Servo Motor
-
Inverter:
-
Fuling
-
Software:
-
Ucancam / ArtCam/TYPE3
Products Description

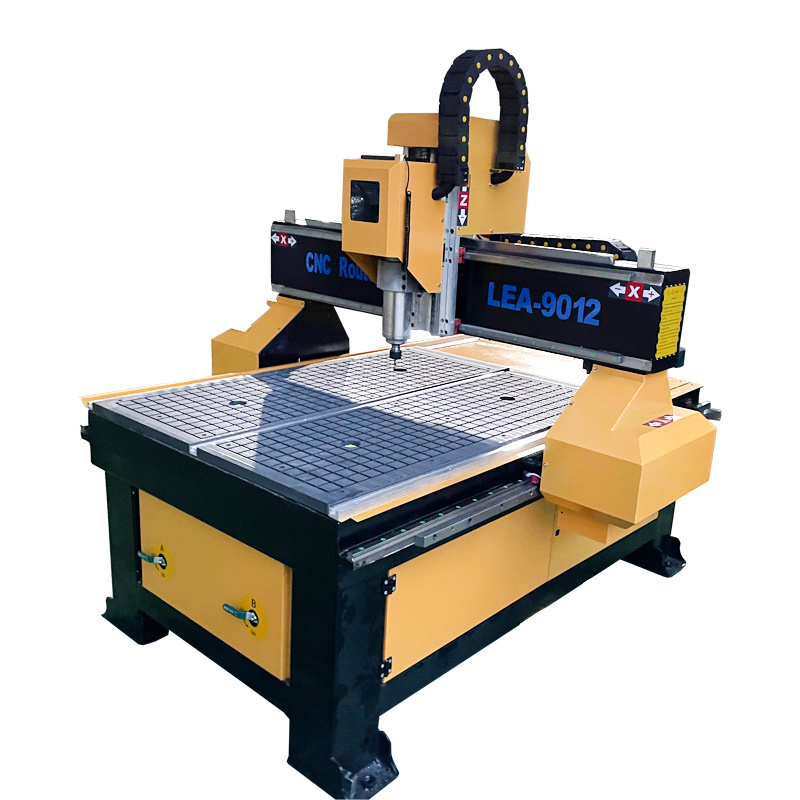

China hot selling single head woodworking CNC machine 9012 1212 furniture making engraving and cutting CNC milling machine
Machine Features
-- Advanced structure design with hot-working treatment makes performance stably and durably.
-- XY axis adopt imported high precision helical rack and pinion, Z axis use TBI ball screw transmission.
-- International advanced HQD / HSD spindle, powerful with high precision, long time service and stable movement.
-- 6PCS adjustment foot design, can help to adjust the height to keep same level to maintain processing precision.
-- Software Compatibility: Compatible Type3/Casmate/Artcam / AutoCAD/JDpaint etc.
-- XY axis adopt imported high precision helical rack and pinion, Z axis use TBI ball screw transmission.
-- International advanced HQD / HSD spindle, powerful with high precision, long time service and stable movement.
-- 6PCS adjustment foot design, can help to adjust the height to keep same level to maintain processing precision.
-- Software Compatibility: Compatible Type3/Casmate/Artcam / AutoCAD/JDpaint etc.
Product Paramenters
|
ITEM
|
DESCRIPTION
|
|
Working area
|
1200x1200x200mm
|
|
Working table
|
T-slot aluminum / Vacuum
|
|
Spindle
|
2.2kw/ 3kw / 4.5kw /5.5kw/ 6kw
|
|
Control system
|
NC Studio / DSP / MACH3
|
|
Inverter
|
Best / Fuling
|
|
Transmission
|
XY-axis helical gack gear, Z-axis TBI ball screw
|
|
Guide rail
|
Taiwan square HIWIN guide rail
|
|
Driving system
|
Stepper motor and driver, optional servo
|
|
Machine body
|
Thick and square tube welding
|
|
Command code
|
G Code
|
|
Software
|
Artcam/Type3,other CAD/CAM
|
|
Voltage
|
AC 220 / 380 V
|
Details Images
Working Sample
Industries:
Furniture &Decoration industry(Woodworking, door, curtainwall, decorative partition)
Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters)
Models & Prototyping
Plastics & Composites (ACP, ACM and solid surface material etc)
Non-ferrous metals & Marine
Materials:
Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.
Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.
Metal: Aluminium, Brass, Copper, etc.
Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.
Furniture &Decoration industry(Woodworking, door, curtainwall, decorative partition)
Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters)
Models & Prototyping
Plastics & Composites (ACP, ACM and solid surface material etc)
Non-ferrous metals & Marine
Materials:
Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.
Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.
Metal: Aluminium, Brass, Copper, etc.
Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.
Shipping&Delivery
Payment
T/T 30% in advance and we start to manufacture this machine after receiving the payment.
T/T 70% for balance before shipping, and we will send you machine pictures and testing videos to confirm.
Then arrange the shipping.
