Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
CX-GWMP
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
normal
-
Outlet Size:
-
normal
-
Power:
-
normal
-
The Light Source:
-
Metering
-
Color Print Speed:
-
Rotary Pump
-
pressure:
-
Min inlet 0.2Mpa/Max output30Mpa
-
Material:
-
stainless steel material
-
working speed:
-
5~200 R/min
-
Max Temperature:
-
200℃
-
Normal flow capacity:
-
6-30CC/R Or 0.15-3.6CC/R
-
Medium:
-
Fluid
-
Sealing:
-
combined seal
-
Certification:
-
CE/GS
Quick Details
-
Application:
-
Food and Beverage Industry, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Pharmaceutical industry, Gear Pump
-
Pressure:
-
normal
-
Voltage:
-
normal
-
Brand Name:
-
GN
-
Model Number:
-
CX-GWMP
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
normal
-
Outlet Size:
-
normal
-
Power:
-
normal
-
The Light Source:
-
Metering
-
Color Print Speed:
-
Rotary Pump
-
pressure:
-
Min inlet 0.2Mpa/Max output30Mpa
-
Material:
-
stainless steel material
-
working speed:
-
5~200 R/min
-
Max Temperature:
-
200℃
-
Normal flow capacity:
-
6-30CC/R Or 0.15-3.6CC/R
-
Medium:
-
Fluid
-
Sealing:
-
combined seal
-
Certification:
-
CE/GS
Company info
1. High-tech enterprise, with a number of national invention patents
2. Integrates research and development, production, processing and sales, and has independent import and export rights 3.13 years of experience in instrument production and sales
4. Wide range of products, covering flow, liquid level, gear pump, temperature, pressure instrument , etc.
5. A number of metering equipment experts and senior engineers with high technical level
6. Products have been sold to more than 100 countries and involved in more than 100 industries.
7. English sales team, Russian sales team, domestic sales team.
8. Provide complete set of system solutions.
Stainless steel gear, Pump plate. Standardized production workshop, Integrates research and development, production, processing and sales, and has independent import and export rights.
Product Description
Parameters

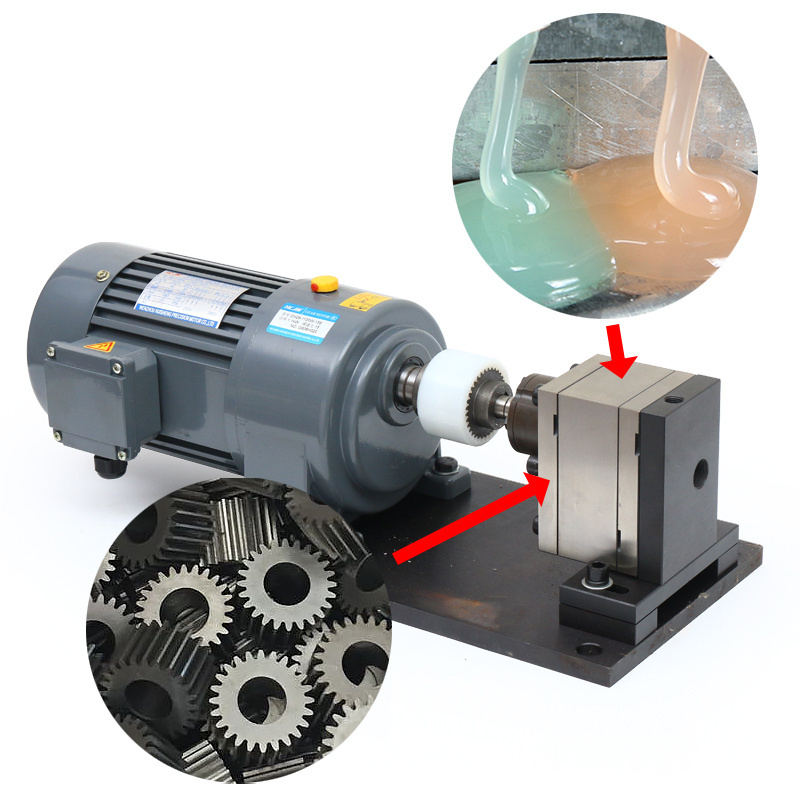

High Performance Epoxy Resin Glue Injection Hot Melt Gear Pump
The design utilizes high standard external spur gears enclosed within a close tolerance housing assembly. This provides you the precise volume of fluid dispensed per shaft revolution. The housing is constructed from a precision ground and lapped three-plate assembly. This assembly is aligned with dowels to allow close control of operating clearances. This construction method in combination with several proprietary internal features is what ensures precise, pulseless and reliable flow under varying process conditions.
|
Model
|
Displament
|
Total
Height
|
Base
Height
|
Min
Pressure
|
Max
Pressure
|
Accuracy
|
Temperature
|
|
GWMP-0.15
|
0.15
|
83
|
28.1
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-0.3
|
0.3
|
85
|
30.2
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-0.6
|
0.6
|
85
|
32
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-1.2
|
1.2
|
90
|
34
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-2.4
|
2.4
|
100
|
42
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-3.6
|
3.6
|
105
|
50
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-6
|
6
|
130
|
41
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-9
|
9
|
135
|
46
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-12
|
12
|
140
|
51
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-15
|
15
|
145
|
56
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-20
|
20
|
150
|
64
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-30
|
30
|
165
|
80
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-40
|
40
|
90
|
215
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-50
|
50
|
97
|
215
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-60
|
60
|
104.5
|
230
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-75
|
75
|
112
|
230
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-80
|
80
|
Customized
|
Customized
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
|
GWMP-125
|
125
|
Customized
|
Customized
|
<0.2Mpa
|
<30Mpa
|
+/-3%
|
200℃
|
Note
:Direction of rotation: clockwise from the axis of rotation
|
Model
|
0.15cc
|
0.3cc
|
0.6cc
|
1.2cc
|
2.4cc
|
3.2cc
|
3.6cc
|
|
A
|
83
|
85
|
85
|
90
|
100
|
103
|
105
|
|
B
|
28.1
|
30.2
|
32
|
34
|
42
|
47.6
|
50
|
|
Model
|
6cc
|
9cc
|
12cc
|
15cc
|
20cc
|
25cc
|
30cc
|
|
A
|
130
|
135
|
140
|
145
|
150
|
158
|
165
|
|
B
|
41
|
46
|
51
|
56
|
64
|
72
|
80
|
|
Min inlet pressure
|
<0.2Mpa
|
|
Working speed
|
5~200r/min
|
|
Medium
|
Fluid
|
|
Process temperature
|
<200℃
|
|
Max Outlet pressure
|
<30Mpa
|
|
Flow capacity
|
0.15~3.6cc/r or 6-30cc/r
|
|
Sealing
|
Combined seal
|
