Quick Details
-
Model Number:
-
AHDPEPLA-1210154
-
Thickness:
-
1----200mm, 0.5--200mm
-
Size:
-
1000x2000/1220x2440/1500x3000mm, 1500x3000mm, 1220x2440mm, 1000x2000mm
-
Item name:
-
HDPE ( Polyethylene) sheet
-
Color:
-
white / black / green / blue / red/ yellow
-
Density:
-
0.96g/cm3
-
Type:
-
Extruded
-
Port:
-
Shenzhen or Guangzhou Port
-
Sample:
-
free
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
China
-
Brand Name:
-
AHD
-
Model Number:
-
AHDPEPLA-1210154
-
Thickness:
-
1----200mm, 0.5--200mm
-
Size:
-
1000x2000/1220x2440/1500x3000mm, 1500x3000mm, 1220x2440mm, 1000x2000mm
-
Item name:
-
HDPE ( Polyethylene) sheet
-
Color:
-
white / black / green / blue / red/ yellow
-
Density:
-
0.96g/cm3
-
Type:
-
Extruded
-
Port:
-
Shenzhen or Guangzhou Port
-
Sample:
-
free
G

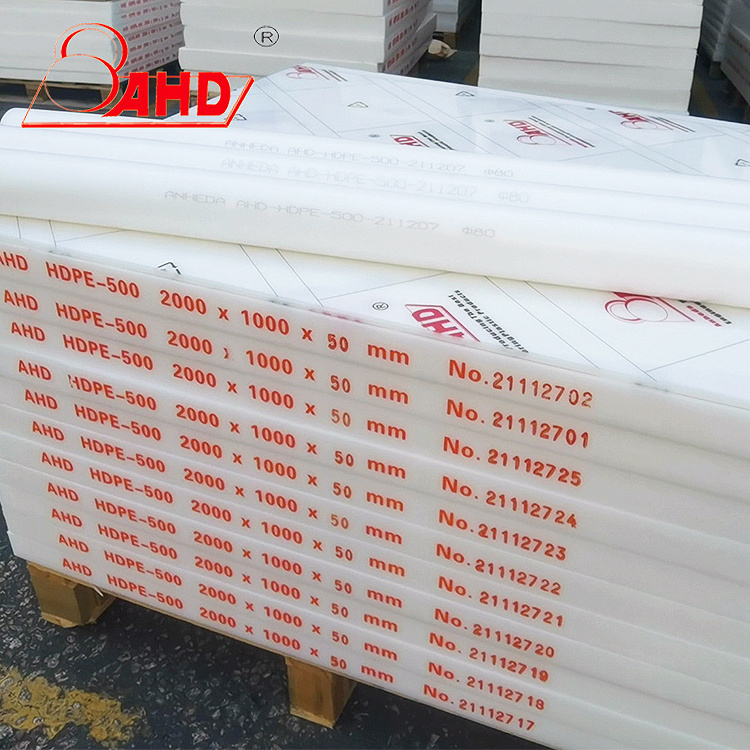

extruded solid high density polyethylene plastic cutting board pe plate pe 500 plate hdpe sheets
HDPE sheet, Pe sheet is used in a variety of applications and industries where excellent impact resistance, high tensile strength, low moisture absorption and chemical and corrosion resistance properties are required. And PE plate has good insulation properties and is easy to weld. The operating temperature of Polyethylene board is from -50°C to +90°C
Characteristics:
1. Resist organic solvents, degreasing agents & electrolytic attack
2. Excellent chemical resistance
3. Good electrical insulation
4. High flexibility (also at low temperature)
5. Good protection against stress cracking
6. Super low water absorption
7. Food safe
Application:
1. Pumps and valves, seals, medical industry
2. Used to commodity housing, non-load bearing components, plastic box, turnover box
3. Used to extrusion blow molding containers
Specification:
| Type | extruded |
| Size | 1500x3000mm, 1220x2440mm, 1000x2000mm |
| Thickness | 0.5---200mm |
| Density | 0.96 g/cm³ |
| Color | White / black / blue / green / yellow |
| Brand name | AHD |
| Material | 100% virgin material |
| Sample | FREE |
| Acid resistance | YES |
| Ketone Resistance | YES |
Remarks
:
1.Other size can be customized
2.Tolerance is around 0~4%
| Item | HDPE sheet |
| Color | White / Black / Green |
| Proportion | 0.96g/cm³ |
| Heat resistance (continuous) | 90℃ |
| Heat resistance (short-term) | 110 |
| Melting point | 120℃ |
| Glass transition temperature | _ |
|
Linear thermal expansion coefficient (average 23~100℃) |
155×10 -6 m/(m.k) |
| Flammability(UI94) | HB |
| (Dipping into water at 23℃ | 0.0001 |
| Bending tensile stress/ Tensile stress off shock | 30/-Mpa |
| Tensile modulus of elasticity | 900MPa |
| Compressive stress of normal strain-1%/2% | 3/-MPa |
| Friction coefficient | 0.3 |
| Rockwell hardness | 62 |
| Dielectric strength | >50 |
| Volume resistance | ≥10 15 Ω×cm |
| Surface resistance | ≥10 16 Ω |
| Relative dielectric constant-100HZ/1MHz | 2.4/- |
| Bonding capacity | 0 |
| Food contact | + |
| Acid resistance | + |
| Alkali resistance | + |
| Carbonated water resistance | + |
| Aromatic compound resistance | 0 |
| Ketone resistance | + |
