Quick Details
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Product name:
-
1U 19" Fiber Optic PLC Splitter Rack Mount Patch Panel
-
Connector:
-
SC/APC
-
Material:
-
cold-rolled steel
-
Color:
-
White,Black or customized
-
Application:
-
telecom
-
Function:
-
cable distribution
-
Packing:
-
inner box and carton box
-
Suitable:
-
ST, FC, SC, LC adapters
-
Port numbers:
-
8 / 12 / 16 / 24 / 48 cores
-
No. of Fiber:
-
16f, 16 cores
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
PLC Splitter Patch Panel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Product name:
-
1U 19" Fiber Optic PLC Splitter Rack Mount Patch Panel
-
Connector:
-
SC/APC
-
Material:
-
cold-rolled steel
-
Color:
-
White,Black or customized
-
Application:
-
telecom
-
Function:
-
cable distribution
-
Packing:
-
inner box and carton box
-
Suitable:
-
ST, FC, SC, LC adapters
-
Port numbers:
-
8 / 12 / 16 / 24 / 48 cores
-
No. of Fiber:
-
16f, 16 cores
Product Description

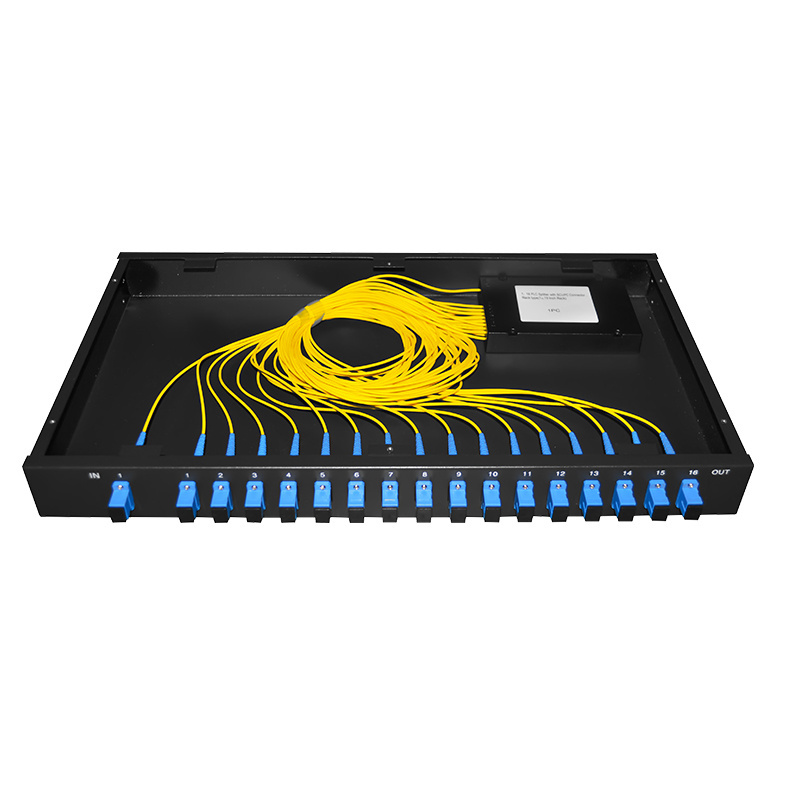

19" Fiber Optical 1x16 SC/UPC GPON LGX PLC Splitter patch panel Termination distribution Box ODF Rack Mount
Description
PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector
LGX PLC splitter with SC APC connector
|
Setting Information
|
|
|
Type
|
1x16 , 1U 19" Rack Mount Splitter
|
|
Fiber
|
SC/APC, G657A1
|
|
Length
|
1M, 2M, 3M or as your request
|
|
Cable Sheath
|
PVC
|
|
Cable Diameter
|
0.9/2.0/ 3.0 mm
|
|
Warranty
|
10-30 years
|
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|||||
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|
|
|
|
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|
|
|
|
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|||||
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|||||
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|||||
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|
|
|
|
|
|||||
|
Directivity
|
≥55dB
|
|
|
|
|
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|
|
|
|
|
|||||
