Quick Details
-
Model Number:
-
JDL-PM30-58/1.8
-
Manifold connection(inch):
-
1/2 3/4
-
Test pressure(pa):
-
1MPa
-
Operating fluid ppressure(pa):
-
0.6MPa
-
Max. service temperature:
-
95
-
Max. stagnation temperature:
-
242
-
Distance from tube to tube:
-
75
-
Flow range recommendation:
-
50-150l/m2h
-
Insulation thickness(mm):
-
40
-
Min. collector angle(degree):
-
15
-
Max. collector angle(degree):
-
75
Quick Details
-
Pipe Material:
-
Copper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jiadele or oem
-
Model Number:
-
JDL-PM30-58/1.8
-
Manifold connection(inch):
-
1/2 3/4
-
Test pressure(pa):
-
1MPa
-
Operating fluid ppressure(pa):
-
0.6MPa
-
Max. service temperature:
-
95
-
Max. stagnation temperature:
-
242
-
Distance from tube to tube:
-
75
-
Flow range recommendation:
-
50-150l/m2h
-
Insulation thickness(mm):
-
40
-
Min. collector angle(degree):
-
15
-
Max. collector angle(degree):
-
75
Products Description

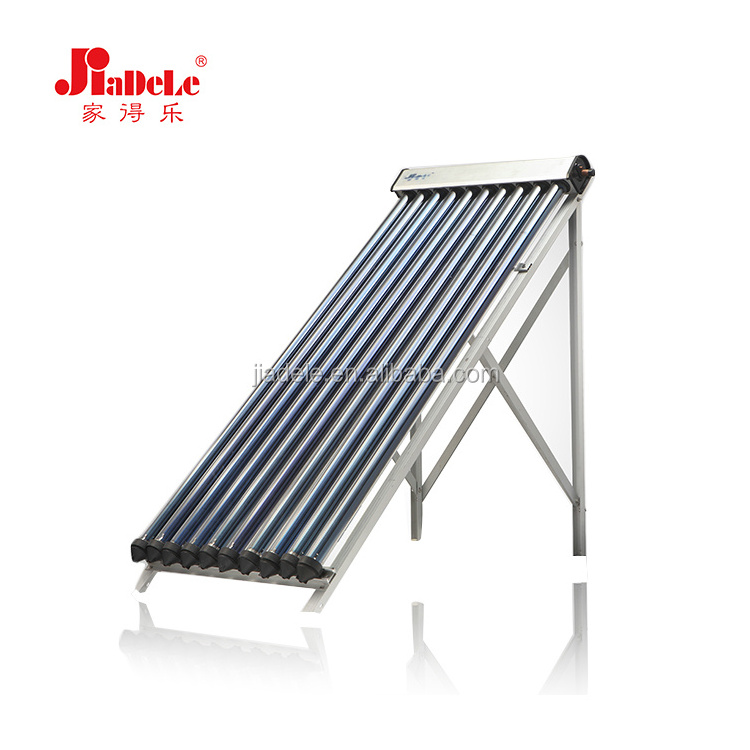

This type uses the all glass evacuated solar collector tubes as the heat-absorbing element
.
The high vacuum degree of the clearance between the outer and inner tube reduces the heat emission which is caused by convection and conduction. The layer films(coating) of the all glass evacuated tubes transfer the sun energy into heat energy.
The high absorption and low emittance rate of Jiadele’s layer fils is unique.
Depending on the different density between hot water and cold water, a water flowing cycle is created in the tube. Hot water flows automatically upwards while the cold water flows downward. The water in the storage tank will be heated from this natural circulation.
|
Type
|
Area
(m2) |
Volume of the Flu(L)
|
Vacuum tube Qty(pcs)
|
Length/Width/
Helght(mm) |
Gross wet(kg)
|
20GP/40GP/40HC
loading Qty(sets) |
Volume/set
(Cubic meter)
|
||||||
|
JDL-PM10-58/1.8
|
1.3
|
0.77
|
10
|
2020x995x155
|
39
|
0.18
|
0.51
|
||||||
|
JDL-PM15-58/1.8
|
1.9
|
1.15
|
15
|
2020x1410x155
|
53
|
0.24
|
0.61
|
||||||
|
JDL-PM20-58/1.8
|
2.6
|
1.54
|
20
|
2020x1825x155
|
69
|
0.29
|
0.66
|
||||||
|
JDL-PM25-58/1.8
|
3.3
|
1.92
|
25
|
2020x2240x155
|
83
|
0.36
|
0.77
|
||||||
|
JDL-PM30-58/1.8
|
3.9
|
2.3
|
30
|
2020x2655x155
|
109
|
0.43
|
0.95
|
||||||
|
Vacuum tube size:φ58X1800
|
|
|
|
|
|
|
|
||||||
