Quick Details
-
Brand Name:
-
AOST, OEM
-
Model Number:
-
AST-4G20G
-
Place of Origin:
-
GUA
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10G
-
Brand Name:
-
AOST, OEM
-
Model Number:
-
AST-4G20G
-
Place of Origin:
-
GUA
|
Product Name |

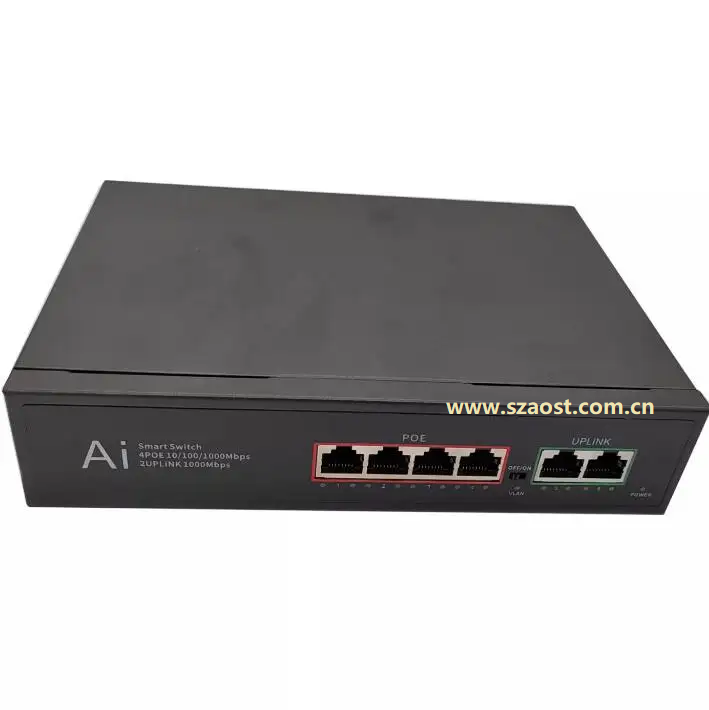

4 Port Full Gigabit POE Switch(4+2) |
|
Product Model |
AST-4G20GB |
|
DATA PIN |
1/2+ 3/6- ,4/5+ 7/8- |
|
Power Supply Type |
Build In, 1/2+,3/6- |
|
PoE Output Power |
30W |
|
Connector |
4*1000mbps POE port,2*RJ45 1000mbps Uplink port |
|
Network Medium |
Cat5 (UTP) or more |
|
Technology |
|
|
Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
|
PoE power |
30W per port(IEEE802.3af/at). Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
|
Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
Address database Table Size |
8K MAC address |
|
Buffer memory |
48Kb embedded memory per unit |
|
Backboard Bandwidth |
10Gbps Full duplex |
|
Network Latency |
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
|
Power |
|
|
Input |
AC 110-240V |
|
PoE power consumption |
30W per port(IEEE802.3af/at) |
|
Overload current protection |
Present |
|
Mechanical |
|
|
Casing |
Metal |
|
Installation |
Wall mounting/ Desktop |
|
Interface |
|
|
LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
|
Environment specification |
|
|
Operating temperature |
-10-55℃(32-104℉) |
|
Storage temperature |
-40-70℃(14-158℉) |
|
Operating humidity |
90% maximum relative humidity, non-condensing |
|
Storage humidity |
95% maximum relative humidity, non-condensing |
|
Regulatory Approval |
|
|
ISO |
Manufactured in ISO9001 facility |
|
Safety |
CE/CCC/FCC |
|
Warranty |
2 Years |
|
Dimensions |
202*140*45mm (L*W*H) |
|
Weight |
N.W:0.85Kg G.W:1Kg |
