Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Style:
-
Bale Gapple for Tractor Loader Bucket
-
wheel tractor:
-
4WD
-
Color:
-
Red, Blue, Customerized
-
Links:
-
3-point
-
Engine:
-
Vertical,4-Cylinder,Water Cooled and 4-stroke
-
Clutch:
-
Dual-stage
-
PTO:
-
Semi-independent Type 540/1000
-
Spline:
-
Rectangle Spline with 6 teeth
-
contact sales:
-
Nancy +8618505419920
Quick Details
-
Brand Name:
-
SUNCO
-
Place of Origin:
-
Shandong, China
-
Weight:
-
900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Style:
-
Bale Gapple for Tractor Loader Bucket
-
wheel tractor:
-
4WD
-
Color:
-
Red, Blue, Customerized
-
Links:
-
3-point
-
Engine:
-
Vertical,4-Cylinder,Water Cooled and 4-stroke
-
Clutch:
-
Dual-stage
-
PTO:
-
Semi-independent Type 540/1000
-
Spline:
-
Rectangle Spline with 6 teeth
-
contact sales:
-
Nancy +8618505419920

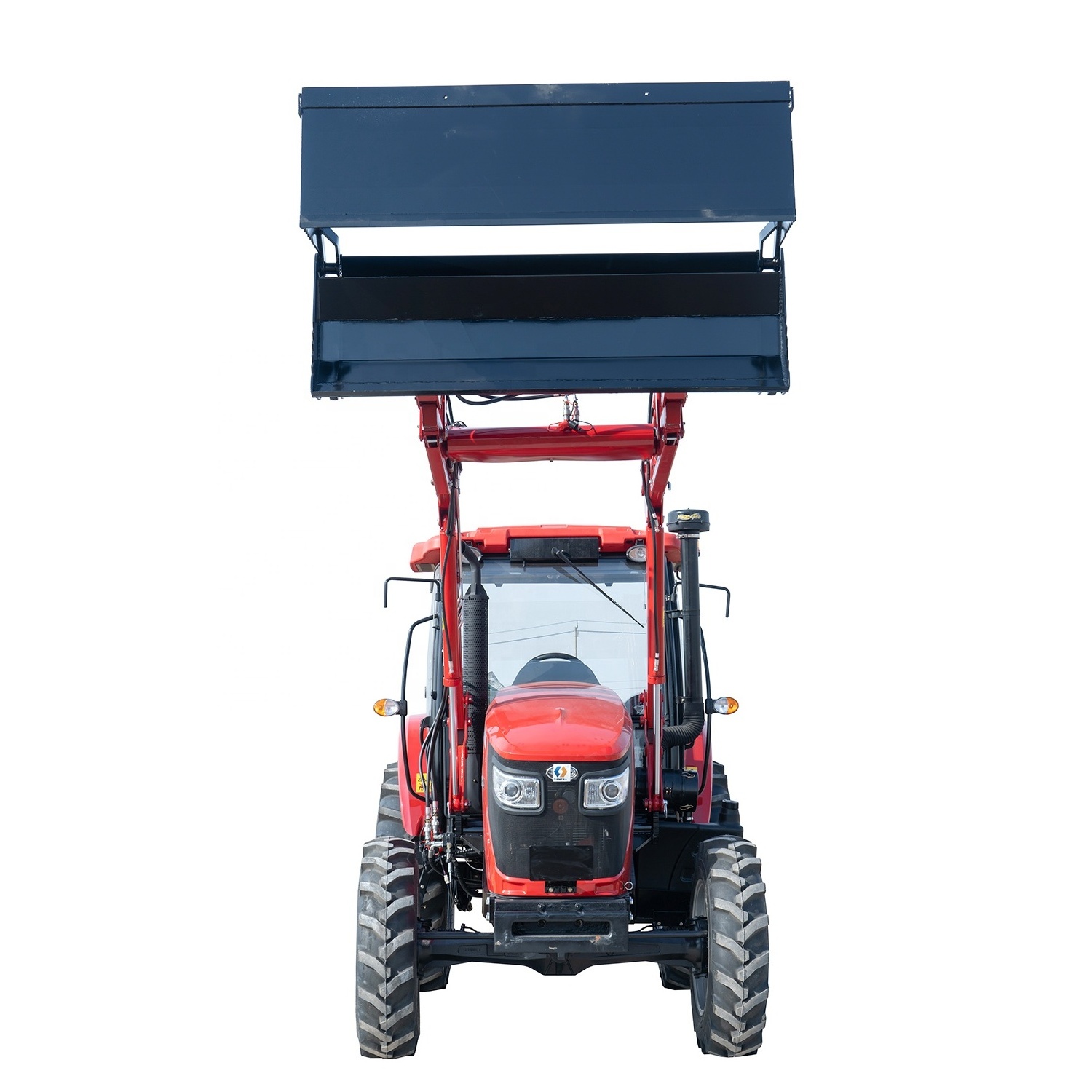

CE Bale Gapple for Tractor Loader Bucket
FRONT END LOADER
|
Loader Model |
|
|
TZ02D |
TZ03D |
TZ04D |
TZ06D |
|
Matching Tractor |
HP |
|
15-25 |
20-40 |
30-55 |
45-60 |
|
Max.Lifting Height at Implement Pivot Pin |
mm |
H |
2350 |
2550 |
2740 |
3010 |
|
Dumpling Height |
mm |
A |
1730 |
1840 |
2100 |
2370 |
|
Overloading height |
mm |
L |
2170 |
2370 |
2560 |
2830 |
|
Dumpling Distance |
mm |
W |
370 |
500 |
600 |
640 |
|
Ground clearance at Arm Prvot Pin |
mm |
B |
1120 |
1200 |
1360 |
1500 |
|
Max.Tip in Angle |
D egree |
X |
48 |
48 |
48 |
48 |
|
Tip out Angle |
D egree |
Z |
52 |
58 |
58 |
58 |
|
Crowd angle at lowered lift arm |
D egree |
V |
140 |
135 |
135 |
135 |
|
Digging depth |
mm |
S |
90 |
100 |
100 |
120 |
|
Lifting Force at Implement Pivot Pin |
Kg |
Q1/Q2 |
1821/ 1184 |
2224/ 1474 |
2144/ 1321 |
2150/ 1286 |
|
Bucket Model(Standard) |
|
|
02DP125 |
04DP125 |
04DP140 |
06DP150 |
|
Bucket Width |
mm |
|
1250 |
1250 |
1400 |
1500 |
|
Bucket Capacity |
M ³ |
|
0.16 |
0.18 |
0.21 |
0.35 |
|
Relad Lifting Capacity |
K g |
|
200 |
300 |
400 |
600 |
REASON for you to choose SUNCO:
1. Strong Research Team
more than 80 engineers and technicians
2. High Quality:
use the best materials
completely self-manufactured
own 3professional laser machines and several CNC for cutting each component
3. Strict testing
Undertake some National research project
Own the exclusive professional platform in our province
4. Close and timely service for all customers no matter with or without order
5. Factory Visit is welcomed all the time.
MORE PICS for reference
Any request,please contact with Nancy Li+8618505419920
