Quick Details
-
Dimension(L*W*H):
-
2300x1200x2900mm
-
Weight:
-
2700 KG
-
Marketing Type:
-
Hot Product 2023
-
Mobility:
-
Move by crawler
-
Model:
-
BDM-160T
-
Dimension:
-
2300x1200x2900mm
-
The weight:
-
2.7T
-
The hole diameter:
-
140-325mm
-
Drilling depth:
-
180m
-
Drilling diameter:
-
140-325mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BDM
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2300x1200x2900mm
-
Weight:
-
2700 KG
-
Marketing Type:
-
Hot Product 2023
-
Mobility:
-
Move by crawler
-
Model:
-
BDM-160T
-
Dimension:
-
2300x1200x2900mm
-
The weight:
-
2.7T
-
The hole diameter:
-
140-325mm
-
Drilling depth:
-
180m
-
Drilling diameter:
-
140-325mm
150m depth farm irrigation water well drilling rig winch wholesale directly supply rotary drilling rig
Small crawler self-propelled 150m pneumatic drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Small crawler self-propelled 150m pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.

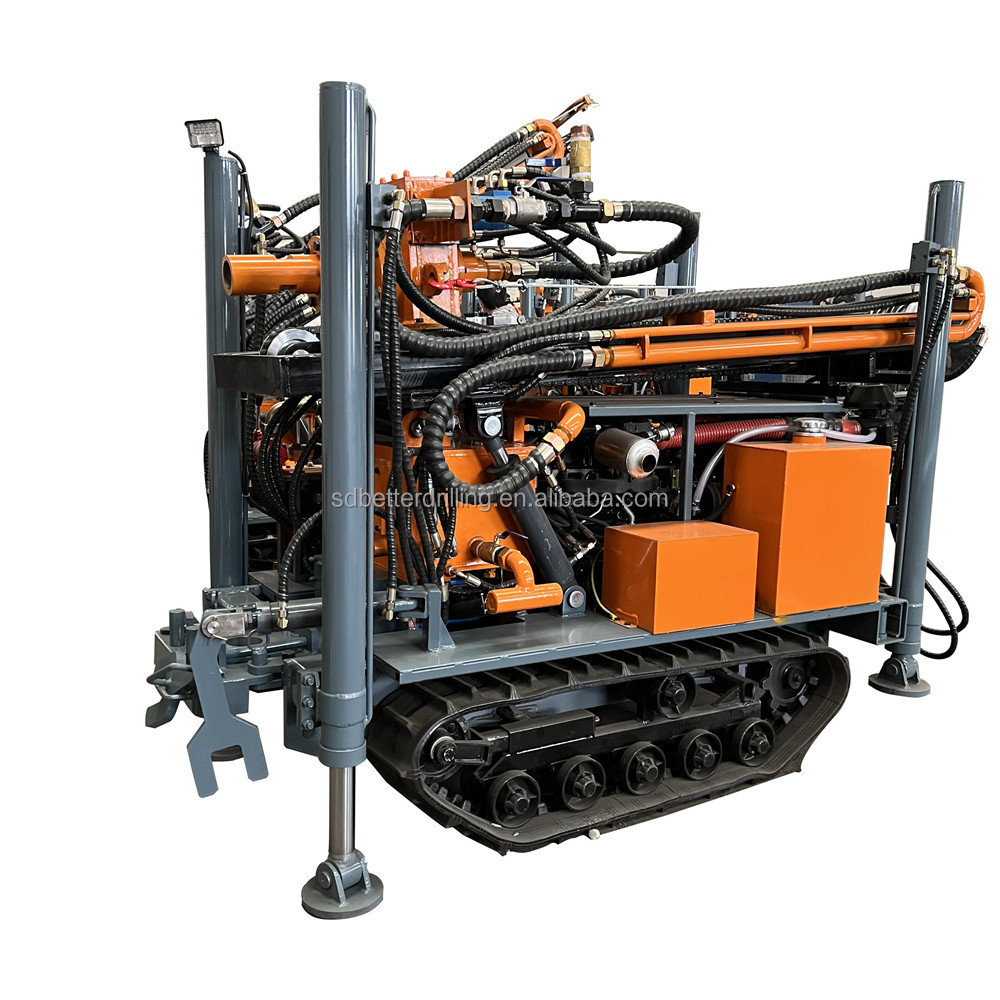

Machine details show :
Technical Specifications :
|
Model size |
BDM160T |
|
Bore diameter(hammer) |
90-300mm |
|
Bore depth |
180m |
|
Air consumption |
17-31m³/min |
|
Air pressure |
1.7-2.5Mpa |
|
Once-time advance length |
2.4m |
|
Pipe diameter |
76mm/89mm |
|
Pipe length |
2m |
|
Push force |
4T |
|
Lifting force |
15T |
|
Max torque of rotary |
4000-4600Nm |
|
Rotary speed |
45-65r/min |
|
Mud Pump flow |
200L/min (option) |
|
Feeding efficiency |
10-35m/h |
|
Travel speed |
2.5Km/h |
|
Climb ability |
30° |
|
Dimension(L*W*H) |
2300×1200×2900mm |
|
weight |
2700kg |
|
Diesel engine |
60KW |
