Quick Details
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CSCPOWER
-
Dimension(L*W*H):
-
1180*720*775mm
-
Weight:
-
600 KG
-
Core Components:
-
Other
-
Compressor brand:
-
Other
-
Product name:
-
Seawater Flake Ice Machine
-
Capacity:
-
1Ton/24hours
-
Cooling way:
-
Air Cooling/Water Cooling
-
Refrigerant:
-
R404a/R22/R507, etc.
-
Control system:
-
PLC+Touch Screen
-
Certification:
-
CE/ISO/Etc.
-
Material:
-
Stainless Steel/Carbon Steel/etc.
-
Flake Ice Thickness:
-
1.5~2.5mm
Quick Details
-
Ice Shape:
-
Flake Ice
-
Voltage:
-
220V/380V
-
Power:
-
5000
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CSCPOWER
-
Dimension(L*W*H):
-
1180*720*775mm
-
Weight:
-
600 KG
-
Core Components:
-
Other
-
Compressor brand:
-
Other
-
Product name:
-
Seawater Flake Ice Machine
-
Capacity:
-
1Ton/24hours
-
Cooling way:
-
Air Cooling/Water Cooling
-
Refrigerant:
-
R404a/R22/R507, etc.
-
Control system:
-
PLC+Touch Screen
-
Certification:
-
CE/ISO/Etc.
-
Material:
-
Stainless Steel/Carbon Steel/etc.
-
Flake Ice Thickness:
-
1.5~2.5mm

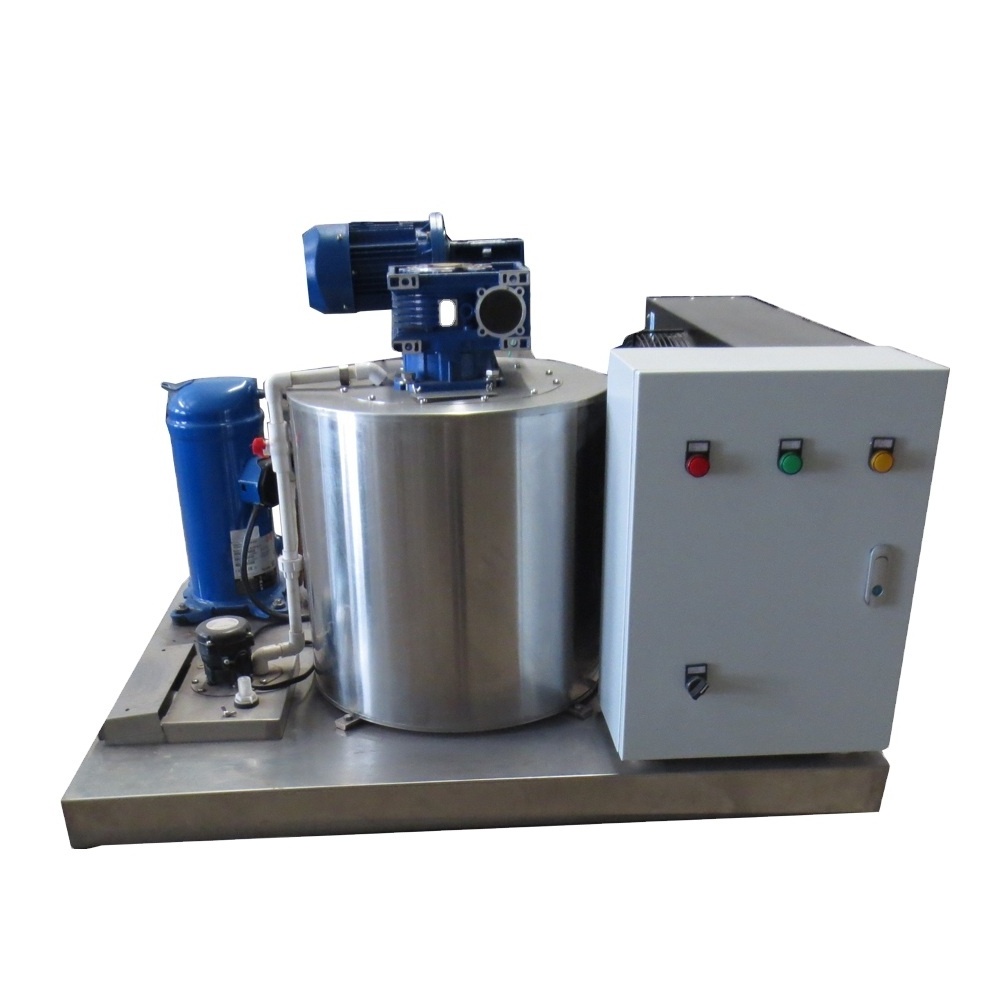

Commercial Big Capacity Industrial Stainless Steel Flake Ice Maker Machine Fishing Boat Sea Water Ice Flake Machine
Product Description
Specification
|
No.
|
Technical Data
|
Parameter data
|
|
01
|
Product name
|
Seawater Flake Ice Machine
|
|
02
|
Capacity
|
1Ton/day
|
|
03
|
Cooling type
|
Air Cooling/Water Cooling
|
|
04
|
Flake ice thickness
|
1.5mm~2.5mm
|
|
05
|
Standard ambient temperature
|
25℃
|
|
06
|
Standard water inlet temperature
|
20℃
|
|
07
|
Evaporator material
|
Stainless steel/Carbon steel/etc.
|
|
08
|
Refrigerant
|
R404a/R22/R507/etc.
|
|
09
|
Power consumption
|
5KW
|
|
10
|
Ice machine dimensions
|
1180*720*775mm
|
|
11
|
Ice machine weight
|
600KG
|
Details Images
Compressor
CSCPOWER does supply all famous compressor brands, for customers to choose, and meet different customs' requirement.
Evaporator
CSCPOWER flake ice evaporator, stainless steel or carbon steel materials, have different models, welcome customize.
Controller Box
CSCPOWER makes our own diagram of the electronic controller box, with PLC and touch screen.
Cooling Tower
CSCPOWER supplys cooling tower for ice machine, customers do not need buy
additionally.
CSCPOWER Different Kinds of Ice
Block Ice
Solid ice, large ice shape, weight of 1~200kg/pc. Not easy to get melt.Can be crushed into different shapes of ice according to different requirements.
Flake Ice
Irregular ice flake with sizes about 40*40mm and thickness around 1.5~2.5mm. Used in s
upermarket, meat processing, food industry, seafood processing, etc.
Tube Ice
A kind of hollow cylindrical ice with external diameter
Φ22,
Φ29,
Φ35mm and length of 25~42mm. The hole diameter is usually
Φ5~10mm and it can be adjusted according to ice making time.
Cube Ice
Cube ice is widely used in hotels, restaurants, bars, banquet halls, fast food shops, seafood shop, chain stores, drink shops, and any other places where need edible ice.
Flake Ice Machine Applications
Flake Ice:
Irregular ice flakes with sizes about 40*40mm and thickness around 1.5~2.5mm.
Application Fields
: Supermarket, meat processing, food industry, seafood processing, concrete mixing plants, , mine cooling,
skiing ground, and so on.
skiing ground, and so on.
Installment:
All equipment is installed on one steel frame except the cooling tower; So it is very convenient to install on spot and it can be put into use immediately after connecting it with the water and electricity resource. Ice Machine with air cooled condenser or evaporative condenser is ready to make ice after connect water and electricity.
