Multicolor Disposable Paper Plastic Cup Screen Printing Machine for Sale

Multicolor Disposable Paper Plastic Cup Screen Printing Machine for Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $21620

≥2 Sets

US $16230

≥3 Sets

US $12280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: YK

Dimensions(L*W*H):: 2900mm*1300mm*1850mm

Weight:: 750 KG

Certification:: CE

Max. Print Area:: 200 mm*300 mm

Product Name:: serigrafia cosmetic bottle screen printing machine with UV system

Keywords1:: coffee cup screen printing machine

Keywords 2:: screen printing machine for plastic bottles

Keywords 3:: automatic carousel screen printing machine

Application area:: lipstick, cosmetic bottles, scour bottles, drink bottles

Machine type:: full auto cylinder Silk Screen Printing Machine

Advantage:: Can be operated in manual and semi-auto mode

Lead Time:: 25 DAYS AFTER PAYMENT

Package:: PLYWOOD CASE

Standards Certificate:: ISO-9001,CE

Quick Details

Condition:: New

Color & Page:: Multicolor

Voltage:: 220V/ 60HZ or 110V/50HZ

Place of Origin:: Guangdong, China

Brand Name:: YK

Dimensions(L*W*H):: 2900mm*1300mm*1850mm

Weight:: 750 KG

Certification:: CE

Max. Print Area:: 200 mm*300 mm

Product Name:: serigrafia cosmetic bottle screen printing machine with UV system

Keywords1:: coffee cup screen printing machine

Keywords 2:: screen printing machine for plastic bottles

Keywords 3:: automatic carousel screen printing machine

Application area:: lipstick, cosmetic bottles, scour bottles, drink bottles

Machine type:: full auto cylinder Silk Screen Printing Machine

Advantage:: Can be operated in manual and semi-auto mode

Lead Time:: 25 DAYS AFTER PAYMENT

Package:: PLYWOOD CASE

Standards Certificate:: ISO-9001,CE

Product Description

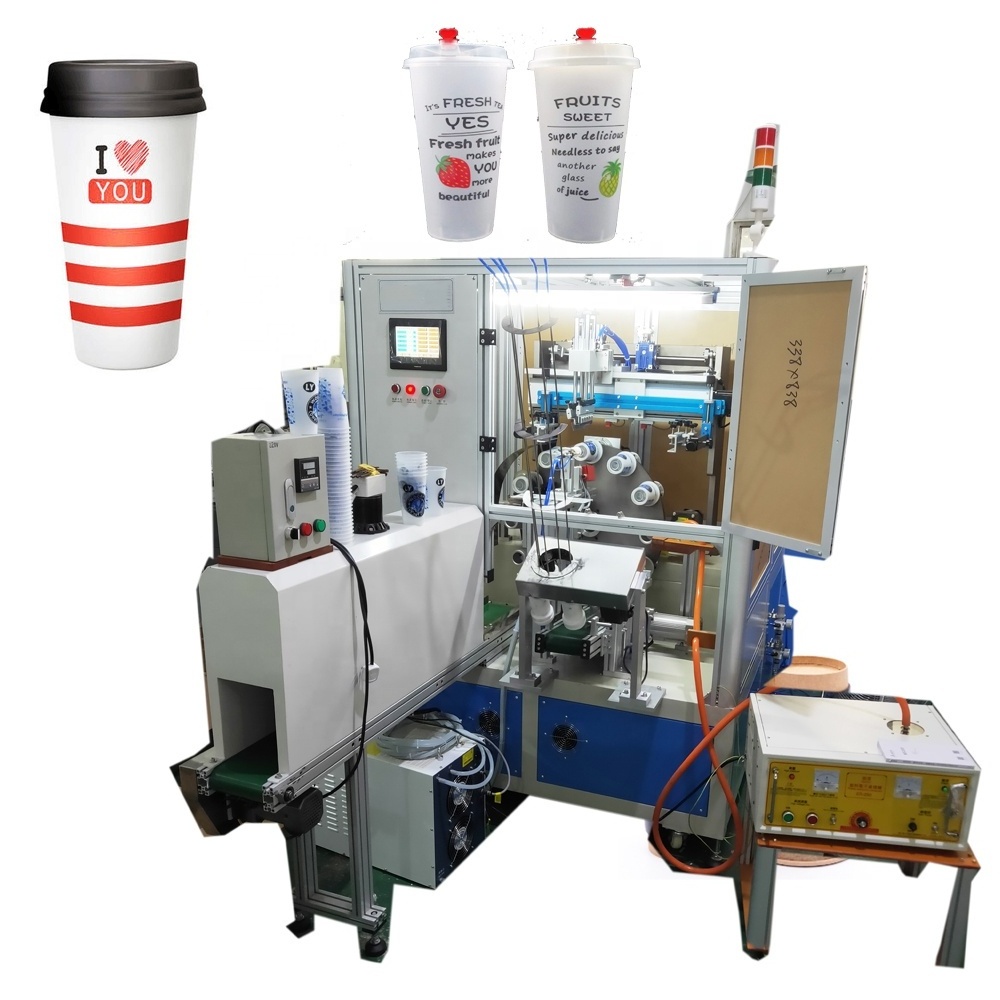

Full Automatic Plastic Bottle Cup Screen Printing Machine For Soft tube

Description: Full Automatic serigrafia cosmetic bottle screen printing machine with UV system on one line

2 color full automatic screen printing machine for plastic cup

Advantage :

1.This machine is full Automatic rotary screen printing machine with auto loading and unloading with uv dryer system 2.Servo system full automatic color sensor register Cup full auto screen printer with LED UV dryer 3.Full automatic working, don't need any worker to operate it , it save labor cost 4.It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ...... 5.Programming is operated by PLC , inspect everything is very clearly. 6.Left and right running by full Servo motor,Screen frame moving by electronic motor.

Specifications: Full Automatic Plastic Bottle Cup Screen Printing Machine For Soft tube

Full Automatic serigrafia cosmetic bottle screen printing machine with UV system on one line

1.The vibrating plate is fed to the turntable table, and the product printing surface is treated by flame.

2.Then the table is rotated to the printing station, and the screen printing is carried out. The UV device is turned down for drying, and the table is turned to the blanking station, and the mechanical blanking is carried out to complete the whole process.Up speed is 3500-4000 pieces per hour. 3.Flame treatment and uv curing can option 4.This machine is extremely good at 360 degree printing ( full circle)and a part of designs on Cups ,Bottles,Soft tubes ,Pots,Jars, Oil filters,Balls,Pens and other round items. 5.It is suitable for printing all kinds of materials,Such as, Plastic, Glass,Wood,Metal......Etc

Advantages: We use all main parts are imported directly ,original place. 1.Servo motor is imported from Japanese famous brand Fuji, 2.High precise Sensor is imported from German famous brand Leuze 3.PLC system is imported from Japanese celebrated Hitachi 4.Touch Screen is imported American Guaranteed brand Wigerlon 5.Guide screw is imported great brand TBI from TaiWan. 6.Slide guide is from Hiwin from TaiWan.

Specification

Maximum printing area	200 mm*300 mm
Maximum screen size	400mmx500mm
Printing precision	±0.05mm
Height of work piece	10~120 mm
Work station	8
Max printing diameter	Ø120 MM
Turntable diameter	Ø500 mm
capacity	4000 PCS/HOURS
UV Machine power	4kw
Rotary table drive	TAIWAN
Power Supply	220V 50/60Hz
Guide rail	HIWIN
Mpa Working pressure	0.4~0.6Mpa
Work cycle	4S
Feeding drive Cylinder Scraper cylinder The knife cylinder Air cylinder Vacuum generator	Gross weight: 800 KG Package size:LWH 2900mm1300mm1850mm AIR TAC Full Automatic Plastic Bottle Cup Screen Printing Machine For Soft tube
